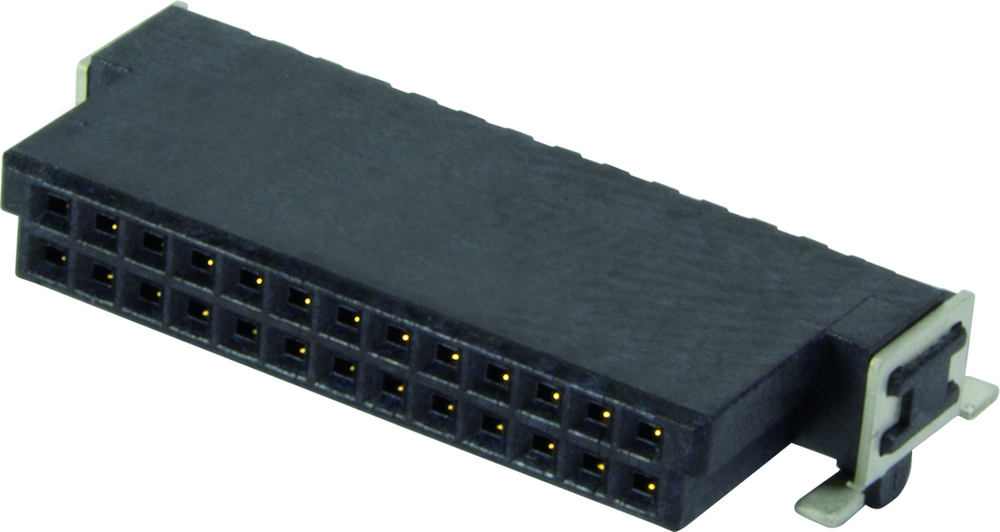

Harting 15250082601333
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Connectors, Female connector, Reflow soldering termination (SMT), Contacts: 8, Angled, Copper alloy, Au over Pd/Ni, Mating side, Tin plated, Termination side, Performance level: 1, Liquid crystal polymer (LCP)Connectors, Female connector, Reflow soldering termination (SMT), Contacts: 8, Angled
Harting 15250082601333 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- China
- eCl@ss
- 27460201 PCB connector (board connector)
- European customs tariff number
- 85389099
- Net weight
- 2.21 g
- Packaging size
- 1
Identification
- Category
- Connectors
- Description of the contact
- Angled
- Element
- Female connector
- Identification
- Signal
Material properties
- China RoHS
- e
- ELV status
- compliant
- Material (contacts)
- Copper alloy
- Material flammability class acc. to UL 94
- V-0
- Material (insert)
- Liquid crystal polymer (LCP)
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- No
- RoHS
- compliant
- Surface (contacts)
- Au over Pd/Ni Mating side || Tin plated Termination side
Specifications and approvals
- UL / CSA
- UL 1977 ECBT2.E102079 || CSA-C22.2 No. 182.3 ECBT8.E102079
Technical characteristics
- Clearance distance
- ≥ 0.4 mm
- Contact resistance
- < 25 mΩ
- Contact rows
- 2
- Contact spacing (mating side)
- 1.27 mm
- Creepage distance
- ≥ 0.4 mm
- Insertion and withdrawal force
- ≈ 4 N
- Insulation resistance
- >10
- Isolation group
- IIIa (175 ≤ CTI < 400)
- Limiting temperature
- -55 ... +125 °C
- Mating cycles
- ≥ 500
- Test voltage U r.m.s.
- 0.5 kV
Version
- Connection type
- Extender card || Motherboard to daughtercard
- Number of contacts
- 8
- Pack contents
- Sample
- Performance level
- 1
- Termination method
- Reflow soldering termination (SMT)
