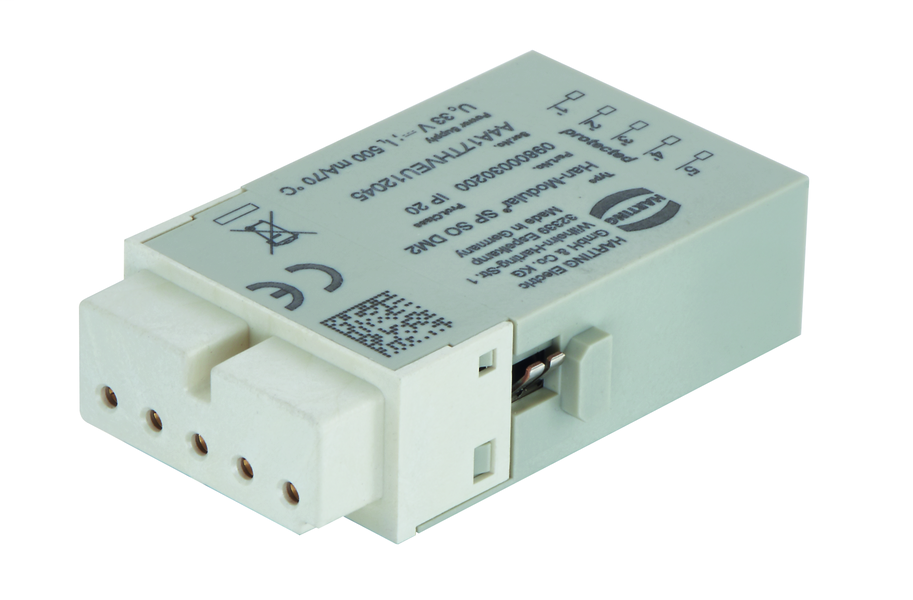

Harting 09800030201
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Han-Smart® Surge protection module, Four channels, Common reference potential, Push-in-spring-cage termination, Female, Contacts: 5, Conductor cross-section: 0.25 ... 1.5 mm², Polyamide (PA), RAL 7032 (pebble grey)Han-Smart® Surge protection module, Four channels, Common reference potential, Push-in-spring-cage termination, Female, Contacts: 5
Harting 09800030201 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 27440217 Module for industrial connectors (power/signals)
- European customs tariff number
- 85363010
- Net weight
- 37.75 g
- Packaging size
- 1
Identification
- Category
- Modules
- Description of the module
- Common reference potential || Four channels
- Identification
- Han-Smart
- Series
- Han-Modular
- Type of module
- Han-Smart
Material properties
- China RoHS
- 50
- Colour (insert)
- RAL 7032 (pebble grey)
- ELV status
- compliant with exemption
- Material flammability class acc. to UL 94
- V-0
- Material (insert)
- Polyamide (PA)
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- Lead
- RoHS
- compliant with exemption
Technical characteristics
- Conductor cross-section
- AWG 24 ... AWG 16
- Degree of protection acc. to IEC 60529
- IP20
- Mating cycles
- ≥ 500
- Operating temperature
- -40 ... +85 °C
- Storage temperature
- -40 ... +85 °C
- Stripping length
- 8 mm
Termination data
- Nominal current
- 0.5 A
- Nominal voltage
- 24 V DC
- Permissible voltage
- 23 V AC || 33 V DC
Version
- Details
- The combination of Surge Protection modules must be installed in an earthed metallic hinged frame to ensure a safe discharge of the surge energy.
- Gender
- Female
- Number of contacts
- 5
- Termination method
- Push-in-spring-cage termination
