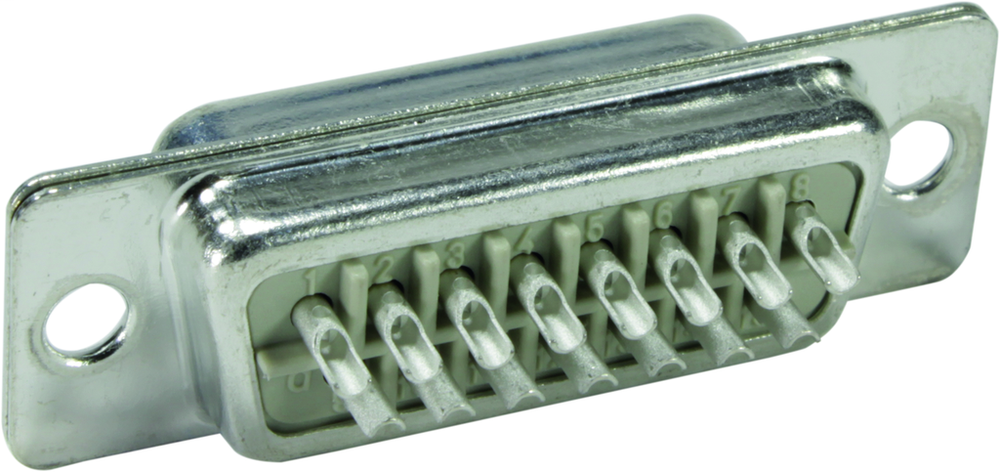

Harting 09670155604
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Connector, Solder cup termination, Rated current: 7.5 A, Male, Size: D-Sub 2, Thermoplastic resin, glass-fibre filled (PBTP), Plated steel, White, Contacts: 15, Conductor cross-section: 0.5 mm² max., Copper alloy, Gold plated, Termination side, Gold plated, Mating sideConnector, Solder cup termination, Rated current: 7.5 A, Male, Size: D-Sub 2, Thermoplastic resin, glass-fibre filled (PBTP), Plated steel, White
Harting 09670155604 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 27440214 D-Sub coupler
- European customs tariff number
- 85366990
- Net weight
- 10.2 g
- Packaging size
- 100
Identification
- Category
- Connectors
- Description of the contact
- Turned || Straight
- Element
- Connector
- Identification
- Standard
- Series
- D-Sub
Material properties
- China RoHS
- 50
- Colour (insert)
- White
- ELV status
- compliant with exemption
- Material (contacts)
- Copper alloy
- Material flammability class acc. to UL 94
- V-0
- Material (hood/housing)
- Steel
- Material (insert)
- Thermoplastic resin, glass-fibre filled (PBTP) || Plated steel
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- Lead
- RoHS
- compliant with exemption
- Surface (contacts)
- Gold plated Termination side || Gold plated Mating side
- Surface (hood/housing)
- Tin plated
Specifications and approvals
- Specifications
- DIN 41652
- UL / CSA
- UL 1977 ECBT2.E102079
Technical characteristics
- Clearance distance
- ≥ 1 mm
- Conductor cross-section
- 0.5 mm² max.
- Contact resistance
- ≤ 10 mΩ
- Creepage distance
- ≥ 1 mm
- Distance between rows
- 2.54 mm
- Hot plugging
- No
- Insertion force
- ≤ 50 N
- Insulation resistance
- >10
- Isolation group
- IIIa (175 ≤ CTI < 400)
- Limiting temperature
- -55 ... +125 °C (Soldering iron temperature during soldering: max. 350 °C for 3-5 s)
- Mating cycles
- ≥ 50
- Rated current
- 7.5 A
- Test voltage U r.m.s.
- 1 kV
Version
- Connection type
- PCB to cable || Cable to cable
- Gender
- Male
- Locking type
- Fixing flange with feed through hole Ø 3.1 mm
- Number of contacts
- 15
- Pack contents
- Carton
- Performance level
- 3
- Size
- D-Sub 2
- Termination method
- Solder cup termination
