Harting 09641137802
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

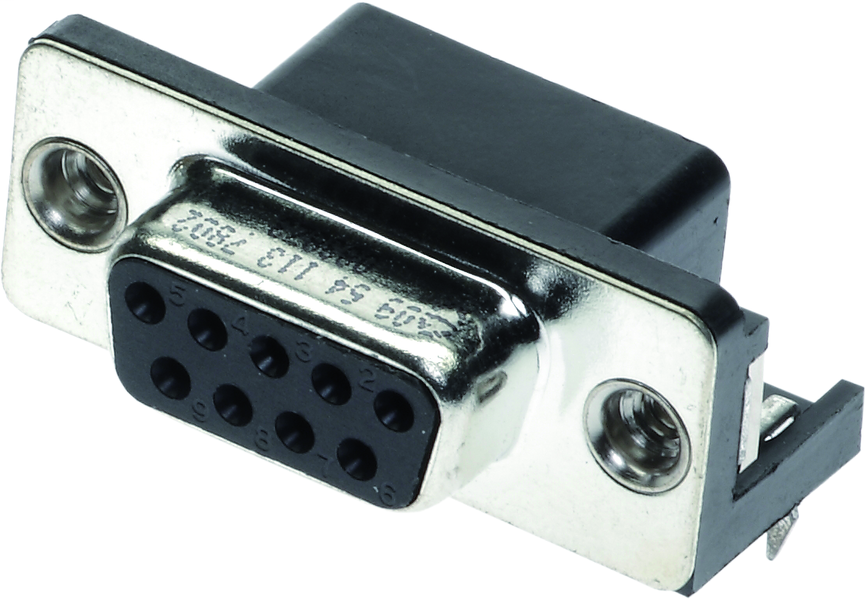

Connector, Wave soldering termination, Rated current: 7.5 A, Female, Size: D-Sub 1, Thermoplastic resin (PBT), Steel, tin plated, Ferrite-filter, Contacts: 9, Copper alloyConnector, Wave soldering termination, Rated current: 7.5 A, Female, Size: D-Sub 1, Thermoplastic resin (PBT), Steel, tin plated, Ferrite-filter
Harting 09641137802 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Taiwan
- eCl@ss
- 27440214 D-Sub coupler
- European customs tariff number
- 85366990
- Net weight
- 8.81 g
- Packaging size
- 100
Identification
- Category
- Connectors
- Description of the contact
- Stamped || Angled
- Element
- Connector
- Identification
- Filter
- Series
- D-Sub
Material properties
- China RoHS
- e
- ELV status
- compliant
- Material (contacts)
- Copper alloy
- Material flammability class acc. to UL 94
- V-0
- Material (insert)
- Thermoplastic resin (PBT) || Steel, tin plated
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- No
- RoHS
- compliant
Specifications and approvals
- Specifications
- DIN 41652
Technical characteristics
- Contact resistance
- ≤ 15 mΩ
- Hot plugging
- No
- Insulation resistance
- >10
- Limiting temperature
- -55 ... +105 °C
- Rated current
- 7.5 A
- Rated voltage
- 250 V
Version
- Filter
- Ferrite-filter
- Gender
- Female
- Locking type
- Fixing flange with thread 4-40 UNC
- Number of contacts
- 9
- PCB fixing
- With frame || With board locks
- Performance level
- 2 || acc. to CECC 75301-802
- Size
- D-Sub 1
- Termination method
- Wave soldering termination
