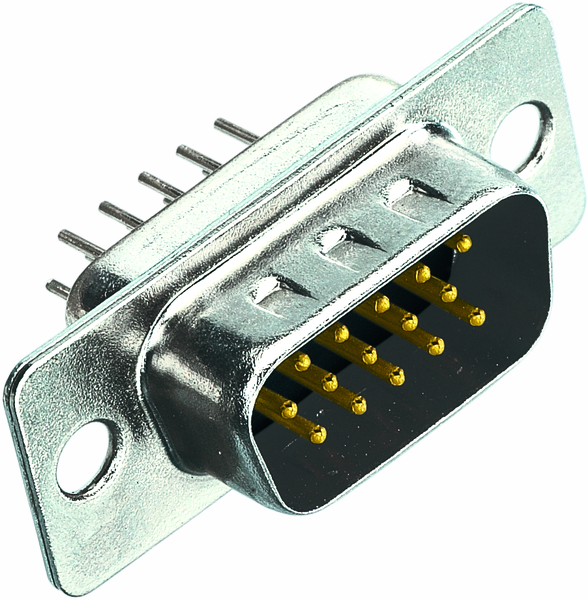

Harting 09565617700
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Connector, Wave soldering termination, Rated current: 2 A, Male, Size: D-Sub 5, Thermoplastic resin, glass-fibre filled (PBTP), Steel, nickel plated, Contacts: 78, Copper alloyConnector, Wave soldering termination, Rated current: 2 A, Male, Size: D-Sub 5, Thermoplastic resin, glass-fibre filled (PBTP), Steel, nickel plated
Harting 09565617700 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- China
- eCl@ss
- 27440214 D-Sub coupler
- European customs tariff number
- 85366990
- Net weight
- 14.2 g
- Packaging size
- 50
Identification
- Category
- Connectors
- Description of the contact
- Stamped || Straight
- Element
- Connector
- Identification
- High Density
- Series
- D-Sub
Material properties
- China RoHS
- 50
- ELV status
- compliant with exemption
- Material (contacts)
- Copper alloy
- Material flammability class acc. to UL 94
- V-0
- Material (insert)
- Thermoplastic resin, glass-fibre filled (PBTP) || Steel, nickel plated
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- Lead
- RoHS
- compliant with exemption
Specifications and approvals
- Specifications
- DIN 41652
- UL / CSA
- UL 1977 ECBT2.E102079
Technical characteristics
- Clearance distance
- ≥ 1 mm
- Contact resistance
- < 20 mΩ
- Creepage distance
- ≥ 1 mm
- Hot plugging
- No
- Insertion force
- ≤ 222 N
- Insulation resistance
- > 5 x 10
- Limiting temperature
- -40 ... +85 °C
- Rated current
- 2 A
- Test voltage U r.m.s.
- 1 kV
Version
- Gender
- Male
- Locking type
- Fixing flange with feed through hole Ø 3.1 mm
- Number of contacts
- 78
- Performance level
- 3
- Size
- D-Sub 5
- Termination method
- Wave soldering termination
