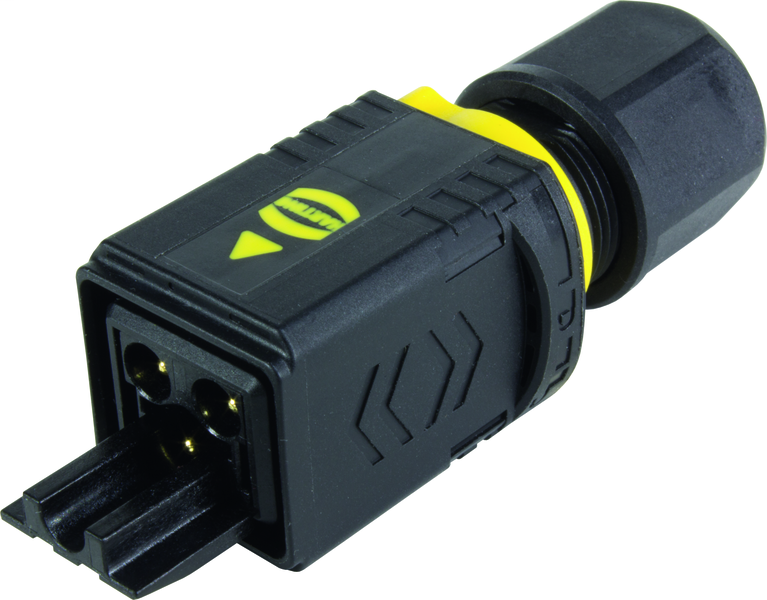

Harting 09461453421
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Connectors, Crimp termination, Rated current: 16 A, Contacts: 2, PushPull, Material: Thermoplastic, Degree of protection: IP65, IP67
Harting 09461453421 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Romania
- eCl@ss
- 27440101 Rectangular connectors (set)
- European customs tariff number
- 85366990
- Net weight
- 1 g
- Packaging size
- 1
Identification
- Category
- Connectors
- Element
- Connector sets
- Identification
- Power
- Series
- HARTING PushPull (V4)
Material properties
- China RoHS
- 50
- Colour (hood/housing)
- Black
- ELV status
- compliant with exemption
- Material flammability class acc. to UL 94
- V-0
- Material (hood/housing)
- Thermoplastic
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- Lead
- RoHS
- compliant with exemption
Specifications and approvals
- Approvals
- DNV GL
- Specifications
- IEC 61076-3-106 Variant 4 (V4) || DIN EN 45545-2 R26: HL1, HL2, HL3
- UL / CSA
- UL 1977 ECBT2.E102079 || CSA-C22.2 No. 182.3 ECBT8.E102079
Technical characteristics
- Cable diameter
- 4.5 ... 10 mm
- Conductor cross-section
- AWG 20 ... AWG 12 Stranded
- Degree of protection acc. to IEC 60529
- IP65 || IP67
- Limiting temperature
- -40 ... +70 °C
- Mating cycles
- ≥ 750
- Pollution degree
- 3
- Rated current
- 16 A
- Rated impulse voltage
- 4 kV
- Rated voltage
- 250 V
- Shock resistance
- 25 g / 11 ms, 3 shocks / axis and direction || 5 g / 30 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B
- Tightening torque
- 1.3 ... 1.5 Nm
- Vibration resistance
- 10-500 Hz, 5 g, 0.35 mm, 2h/axis || 5.72 m/s² acc. to IEC 61373 Category 1 Class B
Version
- Locking type
- PushPull
- Number of contacts
- 2
- Pack contents
- Without contacts
- PE contact
- Yes
- Shielding
- Unshielded
- Termination method
- Crimp termination
