Harting 09456002004
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

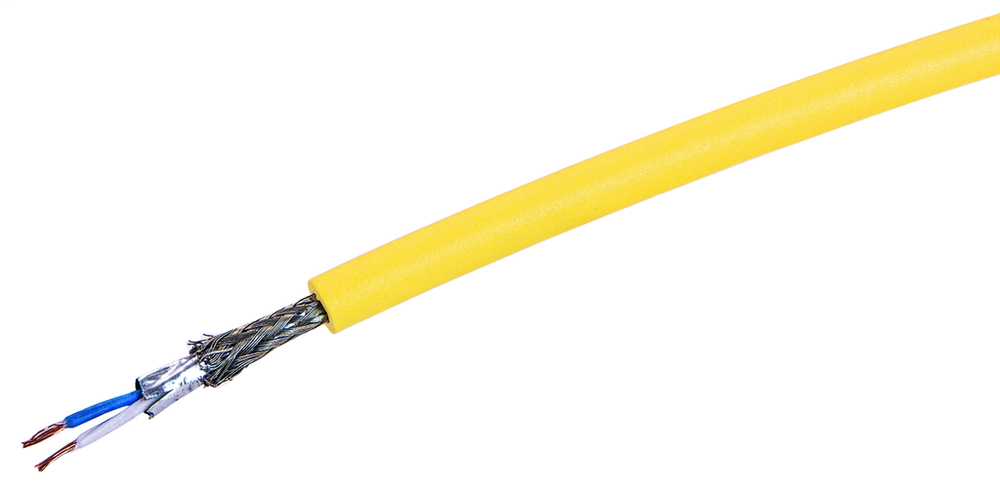

Copper cable, (round), Flame retardant, Oil and UV resistant, Halogen-free, 1x 2x AWG 26/7, PUR (polyurethane), Cable length: 10 m
Harting 09456002004 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Romania
- eCl@ss
- 27061801 Data and communication cable (copper)
- European customs tariff number
- 85444995
- Net weight
- 27 g/m
- Packaging size
- 1
Identification
- Category
- System cabling
- Description of the cable
- Flame retardant || Oil and UV resistant || Halogen-free
- Element
- Bulk cables
- Features
- Perfectly suited for the combination with HARTING SPE connectors || For fixed and flexible installations in industrial applications
- Series
- HARTING T1 Industrial
- Specification
- Not assembled
- Type of cable
- Copper cable (round)
Material properties
- Colour (cable)
- Yellow
- Material (cable)
- PUR (polyurethane)
Specifications and approvals
- Specifications
- IEC 11801-3 || IEC 61156-12 || IEEE 802.3bu (remote power supply over PoDL = Power over Data Line) || IEEE 802.3cg (10BASE-T1) || IEEE 802.3bw (100BASE-T1) || IEEE 802.3bp (1000BASE-T1) || IEC 60332-1-2 Flame retardancy || EN 60811-404 Oil resistancy || UL style 21815
Technical characteristics
- Cable diameter
- 4.7 mm ± 0.2 mm
- Data rate
- 10 Mbit/s || 100 Mbit/s || 1 Gbit/s
- Impedance @ 100 MHz
- 100 Ω ±5 %
- Insulation resistance @ 20 °C
- ≥ 5,000 MΩ x km
- Limiting temperature
- -40 ... +80 °C unmoved || -25 ... +80 °C moved
- Loop resistance
- 290 Ω/km
- Minimum bending radius
- 4x Cable diameter (singular bending) || 8x Cable diameter (repeated bending)
- Rated voltage
- 100 V
- Test voltage U DC
- 1 kV Wire / wire / shielding
Version
- Cable length
- 10 m
- Core structure
- 1x 2x AWG 26/7
- Number of cores
- 2
- Shielding
- Shielded
