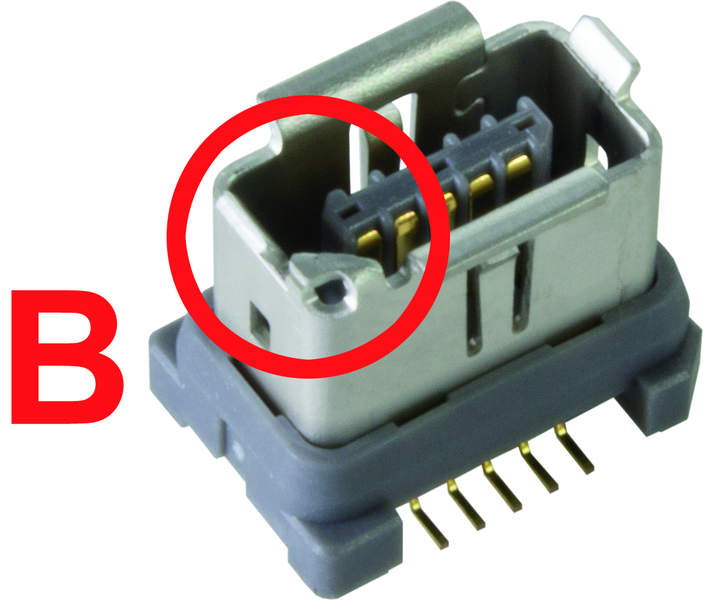

Harting 09452819002
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Connectors, PCB connector, Vertical, Solder termination, Rated current: 1.5 A, Contacts: 10, Copper alloy, Au over Ni, Coding: Type B, Liquid crystal polymer (LCP), BlackConnectors, PCB connector, Vertical, Solder termination, Rated current: 1.5 A, Contacts: 10, Copper alloy, Au over Ni, Coding: Type B
Harting 09452819002 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Japan
- eCl@ss
- 27460201 PCB connector (board connector)
- European customs tariff number
- 85366990
- Net weight
- 2.033 g
- Packaging size
- 450
Identification
- Category
- Connectors
- Element
- PCB connector
- Identification
- Signal
- Series
- HARTING ix Industrial
- Specification
- Vertical
Material properties
- China RoHS
- e
- Colour (insert)
- Grey
- ELV status
- compliant
- Material (contacts)
- Copper alloy
- Material flammability class acc. to UL 94
- V-0
- Material (insert)
- Polyamide (PA)
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- No
- RoHS
- compliant
- Surface (contacts)
- Au over Ni
Specifications and approvals
- Specifications
- IEC 61076-3-124 || DIN EN 45545-2 R22, R23: HL1, HL2, HL3
- UL / CSA
- UL 1977 ECBT2.E102079 || CSA-C22.2 No. 182.3 ECBT8.E102079
Technical characteristics
- Contact resistance
- ≤ 30 mΩ
- Degree of protection acc. to IEC 60529
- IP20
- Insertion force
- ≤ 25 N
- Limiting temperature
- -40 ... +85 °C
- Mating cycles
- ≥ 5,000
- Rated current
- 1.5 A
- Rated voltage
- 50 V AC || 60 V DC
- Shielding resistance
- ≤ 100 mΩ
- Storage temperature
- -30 ... +60 °C
- Test voltage U r.m.s.
- 0.5 kV
- Withdrawal force
- ≤ 25 N
Version
- Coding
- Type B
- Number of contacts
- 10
- Pack contents
- 450 pieces on reel
- Shielding
- Fully shielded, 360° shielding contact
- Termination method
- Solder termination
