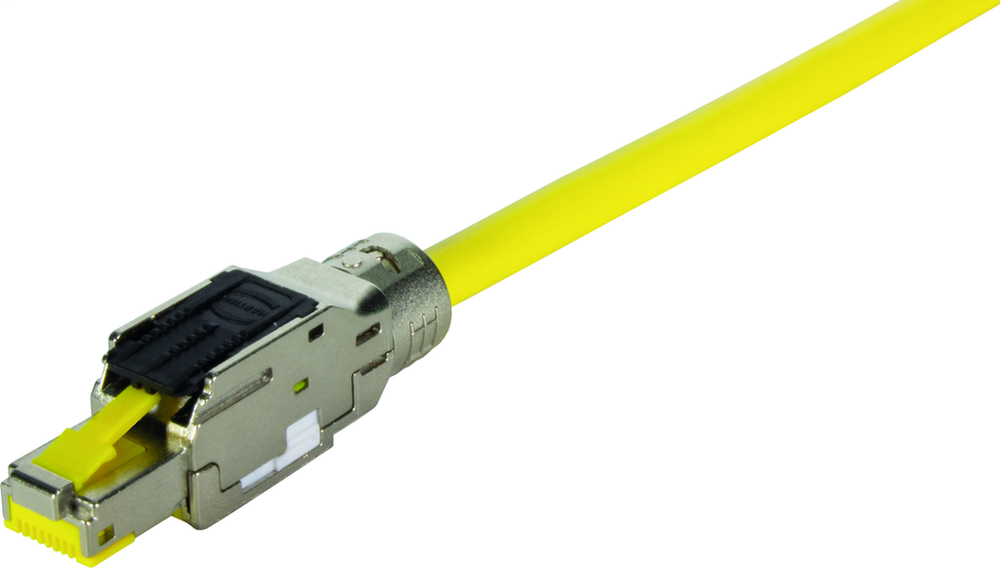

Harting 09451511570
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Connectors, IDC termination, Rated current: 1.76 A, Contacts: 8, Copper alloy, Au over Ni, Mating side, Tin plated, Termination side, Material: Zinc die-cast, Nickel plated, Degree of protection: IP20Connectors, IDC termination, Rated current: 1.76 A, Contacts: 8, Copper alloy, Au over Ni, Mating side, Tin plated, Termination side
Harting 09451511570 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 27440101 Rectangular connectors (set)
- European customs tariff number
- 85366990
- Packaging size
- 1
Identification
- Category
- Connectors
- Element
- Connector
- Series of hoods/housings
- HARTING RJ Industrial
- Specification
- Multi Feature RJ45 || Straight
Material properties
- China RoHS
- 50
- Colour (hood/housing)
- Silver
- ELV status
- compliant with exemption
- Material (contacts)
- Copper alloy
- Material (hood/housing)
- Zinc die-cast
- Material (insert)
- Polycarbonate (PC)
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- Lead
- RoHS
- compliant with exemption
- Surface (contacts)
- Au over Ni Mating side || Tin plated Termination side
- Surface (hood/housing)
- Nickel plated
Specifications and approvals
- Approvals
- DNV GL
- Specifications
- IEC 60603-7 Mating face || IEC 11801 || EN 50173-1
Technical characteristics
- Cable diameter
- 4.5 ... 9 mm
- Conductor cross-section
- AWG 26/7 ... AWG 22/7 Stranded || AWG 26/1 ... AWG 22/1 Solid
- Contact resistance
- ≤ 20 mΩ
- Contact resistance, shielding
- ≤ 100 mΩ
- Data rate
- 10 Mbit/s || 100 Mbit/s || 1 Gbit/s || 2.5 Gbit/s || 5 Gbit/s || 10 Gbit/s
- Degree of protection acc. to IEC 60529
- IP20
- Insertion force
- ≤ 25 N
- Insulation resistance
- > 5 x 10
- Limiting temperature
- -40 ... +85 °C
- Mating cycles
- ≥ 750
- Rated current
- 1.76 A
- Rated voltage
- 50 V AC || 60 V DC
- Test voltage U DC
- 1 kV (contact-contact) || 1.5 kV (contact-ground)
- Transmission characteristics
- Cat. 6
- Wire outer diameter
- 0.8 ... 1.6 mm
- Withdrawal force
- ≤ 25 N
Version
- Number of contacts
- 8
- Shielding
- Fully shielded, 360° shielding contact
- Termination method
- IDC termination
