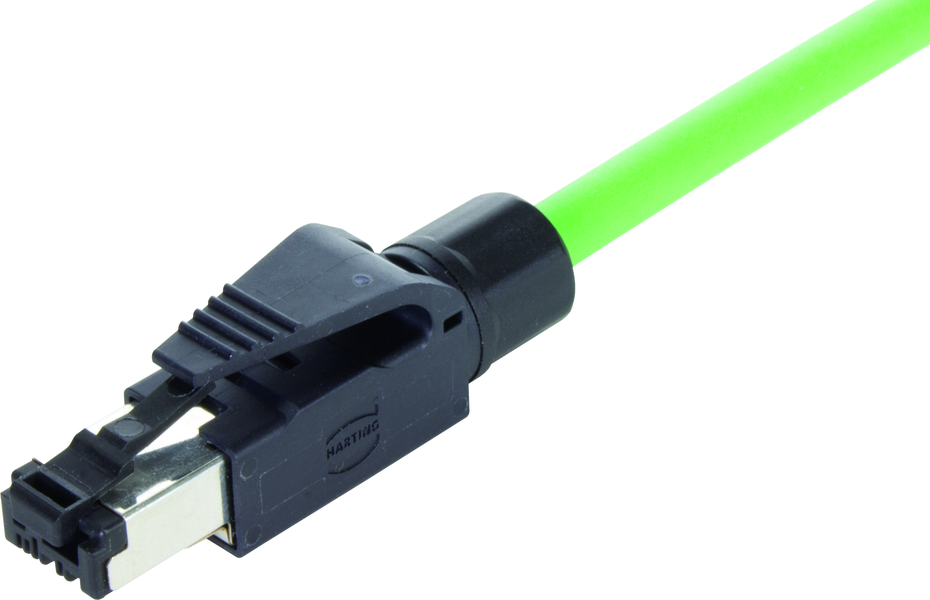

Harting 09451511100
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Harting 09451511100 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Romania
- eCl@ss
- 27440101 Rectangular connectors (set)
- European customs tariff number
- 85366990
- Net weight
- 34.8 g
- Packaging size
- 10
Identification
- Category
- Connectors
- Element
- Cable connector
- Series
- HARTING RJ Industrial
- Specification
- Straight
Material properties
- China RoHS
- e
- Colour (hood/housing)
- Black
- ELV status
- compliant
- Material flammability class acc. to UL 94
- V-0
- Material (hood/housing)
- Polyamide (PA)
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- No
- RoHS
- compliant
Specifications and approvals
- Approvals
- DNV GL
- PROFINET
- Yes
- Specifications
- IEC 60603-7 Mating face || IEC 11801 || EN 50173-1 || DIN EN 45545-2 R26: HL1, HL2, HL3
- UL / CSA
- UL 1977 ECBT2.E102079 || CSA-C22.2 No. 182.3 ECBT8.E102079
Technical characteristics
- Cable diameter
- 4.5 ... 9 mm
- Conductor cross-section
- AWG 24 ... AWG 22 Stranded || AWG 23 ... AWG 22 Solid
- Data rate
- 10 Mbit/s || 100 Mbit/s
- Degree of protection acc. to IEC 60529
- IP20
- Limiting temperature
- -40 ... +70 °C
- Mating cycles
- ≥ 750
- Transmission characteristics
- Cat. 5 Class D up to 100 MHz
- Wire outer diameter
- ≤1.6 mm
Version
- Number of contacts
- 4
- Pack contents
- Hood with shielding || Splicing element || Cable gland || Assembly instructions
- Shielding
- Fully shielded, 360° shielding contact
- Termination method
- IDC termination
