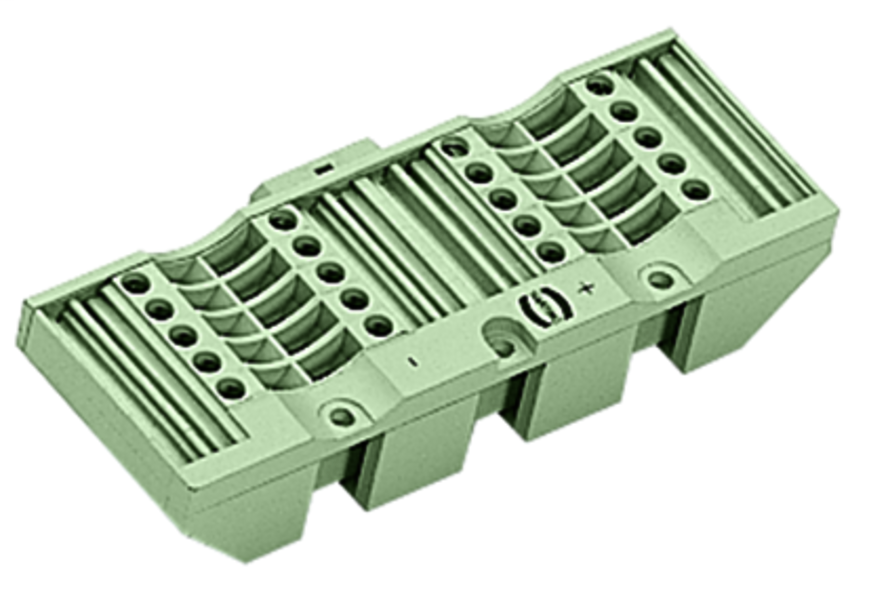

Harting 09420200131
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Inserts, Distributor, Screw termination, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Conductor cross-section: 0.2 ... 2.5 mm², Copper alloy, Tin platedInserts, Distributor, Screw termination, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Conductor cross-section: 0.2 ... 2.5 mm²
Harting 09420200131 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 27440205 Contact insert for industrial connectors
- European customs tariff number
- 85366990
- Net weight
- 77.8 g
- Packaging size
- 1
Identification
- Category
- Inserts
- Element
- Distributor
- Series
- Han D
- Specification
- 4x 4 termination points
Material properties
- China RoHS
- e
- Colour (insert)
- RAL 7032 (pebble grey)
- ELV status
- compliant
- Material (contacts)
- Copper alloy
- Material flammability class acc. to UL 94
- V-0
- Material (insert)
- Polycarbonate (PC)
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- No
- RoHS
- compliant
- Surface (contacts)
- Tin plated
Specifications and approvals
- Specifications
- EN 60664-1 || IEC 61984
- UL / CSA
- UL 1977 ECBT2.E235076
Technical characteristics
- Conductor cross-section
- 0.2 ... 2.5 mm²
- Insulation resistance
- >10
- Limiting temperature
- -40 ... +125 °C
- Pollution degree
- 3
- Rated current
- 16 A
- Rated impulse voltage
- 6 kV
- Rated voltage acc. to UL
- 600 V
- Rated voltage conductor-conductor
- 690 V
- Rated voltage conductor-earth
- 400 V
- Tightening torque
- 0.5 Nm
Version
- Details
- Optionally mountable to terminal block connectors
- Termination method
- Screw termination
