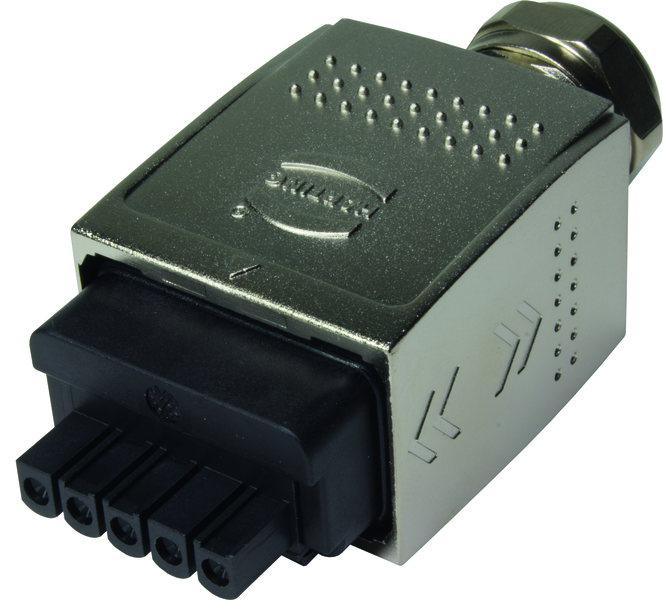

Harting 09354330401
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Connectors, Spring clamp termination, Rated current: 16 A, Contacts: 5, Copper alloy, Sn over Ni, Termination side, Au over Ni, Mating side, PushPull, Material: Zinc die-cast, Nickel plated, Degree of protection: IP65, IP67Connectors, Spring clamp termination, Rated current: 16 A, Contacts: 5, Copper alloy, Sn over Ni, Termination side, Au over Ni, Mating side, PushPull
Harting 09354330401 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- China
- eCl@ss
- 27440101 Rectangular connectors (set)
- European customs tariff number
- 85366990
- Net weight
- 0.01 g
- Packaging size
- 1
Identification
- Category
- Connectors
- Element
- Connector sets
- Features
- Intuitive locking mechanism || field assembly without tolls
- Identification
- Power L
- Series
- Han
- Specification
- AIDA compliant || With fixed coding
Material properties
- China RoHS
- 50
- ELV status
- compliant with exemption
- Material (cable seal)
- NBR
- Material (contacts)
- Copper alloy
- Material flammability class acc. to UL 94
- V-0
- Material (hood/housing)
- Zinc die-cast
- Material (insert)
- Polyamide (PA)
- Material (internal seal)
- NBR
- Material (O-ring)
- NBR
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- Lead
- RoHS
- compliant with exemption
- Surface (contacts)
- Sn over Ni Termination side || Au over Ni Mating side
- Surface (hood/housing)
- Nickel plated
Specifications and approvals
- Approvals
- DNV GL
- PROFINET
- Yes
- Specifications
- IEC PAS 61076-3-126
- UL / CSA
- UL 1059 XCFR2.E314677 || CSA-C22.2 No. 158-10 XCFR8.E314677
Technical characteristics
- Clamping range
- 9 ... 13 mm
- Conductor cross-section
- AWG 18 ... AWG 13
- Degree of protection acc. to IEC 60529
- IP65 || IP67
- Limiting temperature
- -40 ... +70 °C
- Mating cycles
- ≥ 100
- Pollution degree
- 3
- Rated current
- 16 A
- Rated impulse voltage
- 1.5 kV
- Rated voltage
- 24 V
- Shock resistance
- 30 g / 11 ms, 3 shocks / axis and direction
- Stripping length
- 10 mm Conductors || 44 mm cable jacket
- Tightening torque
- 3 Nm
- Vibration resistance
- 10-150 Hz, 5 g, 0.35 mm, 10 sweep cycles acc. to IEC 61373 Category 1 Class B
Version
- Details
- When installing a PROFINET system, observe the PROFINET installation guideline.
- Locking type
- PushPull
- Number of contacts
- 5
- Pack contents
- incl. metal housing and female insert
- Shielding
- Unshielded
- Termination method
- Spring clamp termination
