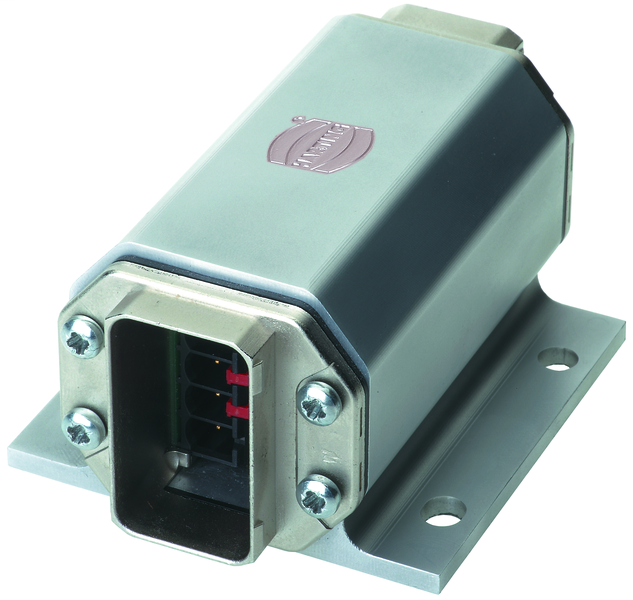

Harting 09354310501
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Gender changer, AIDA compliant, Aluminium
Harting 09354310501 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 27440190 Industry connector (unspecified)
- European customs tariff number
- 85366990
- Net weight
- 229.5 g
- Packaging size
- 1
Identification
- Category
- Connectors
- Element
- Gender changer
- Features
- Intuitive locking mechanism
- Identification
- Power L
- Series
- Han
- Specification
- AIDA compliant
Material properties
- China RoHS
- e
- ELV status
- compliant
- Material (contacts)
- Copper alloy
- Material flammability class acc. to UL 94
- V-0
- Material (hood/housing)
- Aluminium
- Material (seal)
- NBR
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- No
- RoHS
- compliant
- Surface (contacts)
- Sn over Ni Termination side || Au over Ni Mating side
- Surface (hood/housing)
- Anodised
Specifications and approvals
- Approvals
- DNV GL
- PROFINET
- Yes
- Specifications
- IEC PAS 61076-3-126
- UL / CSA
- UL 1977 ECBT2.E235076 || CSA-C22.2 No. 182.3 ECBT8.E235076 || UL 1059 XCFR2.E314677 || CSA-C22.2 No. 158-10 XCFR8.E314677
Technical characteristics
- Conductor cross-section
- AWG 18 ... AWG 13
- Degree of protection acc. to IEC 60529
- IP65 mated condition || IP67 mated condition
- Limiting temperature
- -20 ... +50 °C
- Mating cycles
- ≥ 500
- Rated current
- 16 A
- Rated voltage
- 24 V
- Stripping length
- 10 mm Conductors || 44 mm cable jacket
- Tightening torque
- 3 Nm
Version
- Fixing
- Wall mountable with 4 screws type M5
- Locking type
- PushPull
- Number of contacts
- 5
- Pack contents
- incl. housing and PCB with 2x male insert
- Shielding
- Unshielded
