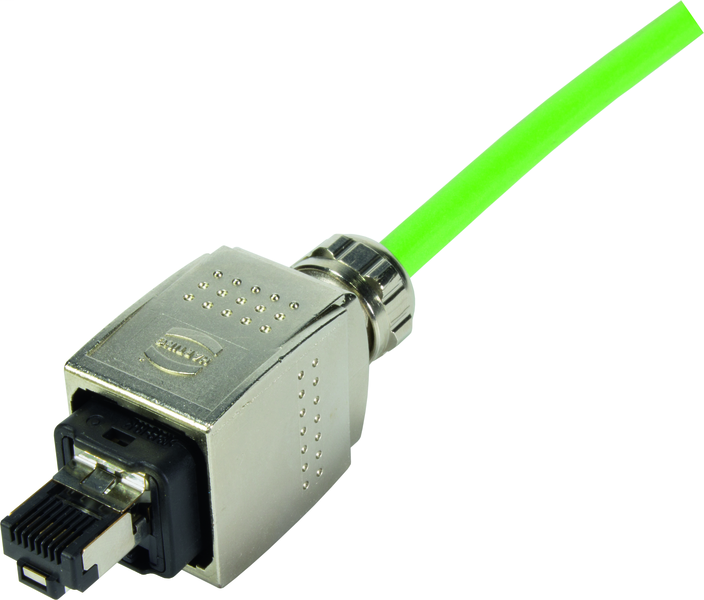

Harting 09352260401
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Connectors, IDC termination, Rated current: 1.75 A, Contacts: 4, PushPull, Material: Zinc die-cast, Nickel plated, Degree of protection: IP65, IP67
Harting 09352260401 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Romania
- eCl@ss
- 27440101 Rectangular connectors (set)
- European customs tariff number
- 85366990
- Net weight
- 75 g
- Packaging size
- 10
Identification
- Category
- Connectors
- Element
- Connector sets
- Features
- Intuitive locking mechanism || field assembly without tolls
- Identification
- RJ45
- Series
- Han
- Specification
- AIDA compliant || PROFINET-Identification: PROFINET O-Plug RJ45
Material properties
- China RoHS
- 50
- ELV status
- compliant with exemption
- Material (cable seal)
- TPE
- Material flammability class acc. to UL 94
- V-0
- Material (hood/housing)
- Zinc die-cast
- Material (O-ring)
- NBR
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- Lead
- RoHS
- compliant with exemption
- Surface (hood/housing)
- Nickel plated
Specifications and approvals
- Approvals
- DNV GL
- PROFINET
- Yes
- Specifications
- IEC 61076-3-117 Variant 14 (V14) || IEC 60603-7 Mating face || DIN EN 45545-2 R22: HL1, HL2, HL3 || DIN EN 45545-2 R23: HL1, HL2, HL3
- UL / CSA
- UL 1977 ECBT2.E102079 || CSA-C22.2 No. 182.3 ECBT8.E102079
Technical characteristics
- Cable diameter
- 6.5 ... 9.5 mm
- Conductor cross-section
- AWG 24/7 ... AWG 22/7 Stranded || AWG 23/1 ... AWG 22/1 Solid
- Data rate
- 10 Mbit/s || 100 Mbit/s
- Degree of protection acc. to IEC 60529
- IP65 || IP67
- Limiting temperature
- -40 ... +70 °C
- Mating cycles
- ≥ 750
- Rated current
- 1.75 A
- Rated voltage
- 50 V
- Transmission characteristics
- Cat. 5 Class D up to 100 MHz
- Wire outer diameter
- ≤ 1.6 mm
Version
- Details
- When installing a PROFINET system, observe the PROFINET installation guideline.
- Locking type
- PushPull
- Number of contacts
- 4
- Pack contents
- incl. housing and male insert
- Shielding
- Fully shielded, 360° shielding contact
- Termination method
- IDC termination
