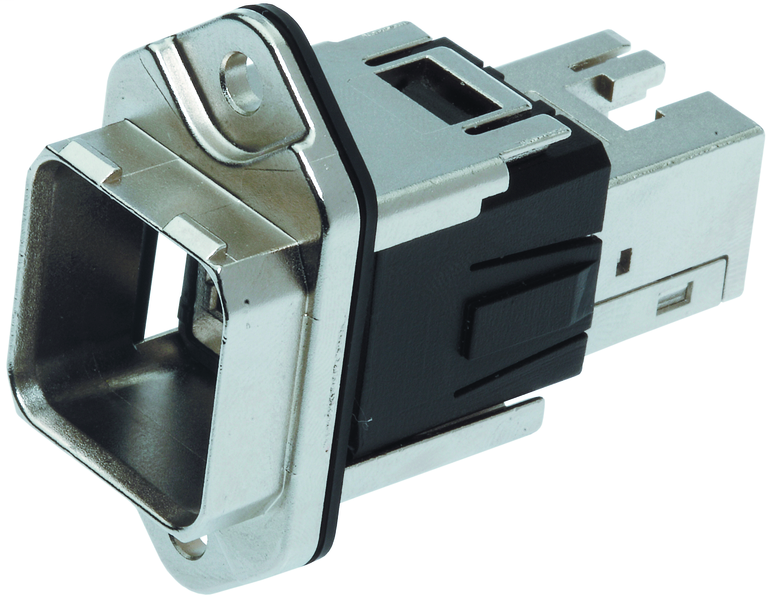

Harting 09352250311
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Connectors, Rated current: 1.75 A, Contacts: 8, PushPull, Material: Zinc die-cast, Nickel plated, Degree of protection: IP65, IP67
Harting 09352250311 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 27440101 Rectangular connectors (set)
- European customs tariff number
- 85389099
- Net weight
- 42.4 g
- Packaging size
- 1
Identification
- Category
- Connectors
- Element
- Panel feed trough set
- Features
- Intuitive locking mechanism
- Identification
- RJ45
- Series
- Han
- Specification
- AIDA compliant
Material properties
- China RoHS
- e
- ELV status
- compliant
- Material flammability class acc. to UL 94
- V-0
- Material (hood/housing)
- Zinc die-cast
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- No
- RoHS
- compliant
- Surface (hood/housing)
- Nickel plated
Specifications and approvals
- Approvals
- DNV GL
- PROFINET
- Yes
- Specifications
- IEC 61076-3-117 Variant 14 (V14) || IEC 60603-7 Mating face || DIN EN 45545-2 R22: HL1, HL2, HL3 || DIN EN 45545-2 R23: HL1, HL2, HL3
- UL / CSA
- UL 1977 ECBT2.E102079 || CSA-C22.2 No. 182.3 ECBT8.E102079
Technical characteristics
- Conductor cross-section
- 0.22 ... 0.32 mm² Stranded || 0.26 ... 0.32 mm² Solid
- Data rate
- 10 Mbit/s || 100 Mbit/s || 1 Gbit/s || 10 Gbit/s
- Degree of protection acc. to IEC 60529
- IP65 || IP67
- Limiting temperature
- -40 ... +70 °C
- Mating cycles
- ≥ 750
- Rated current
- 1.75 A
- Rated voltage
- 50 V
- Transmission characteristics
- Cat. 6 Class E up to 250 MHz
Version
- Fixing
- Screwable to cover plates
- Locking type
- PushPull
- Number of contacts
- 8
- Pack contents
- incl. bulkhead mounted housing for rectangular panel cut out, flat seal and HARTING RJ Industrial
- Shielding
- Fully shielded, 360° shielding contact
