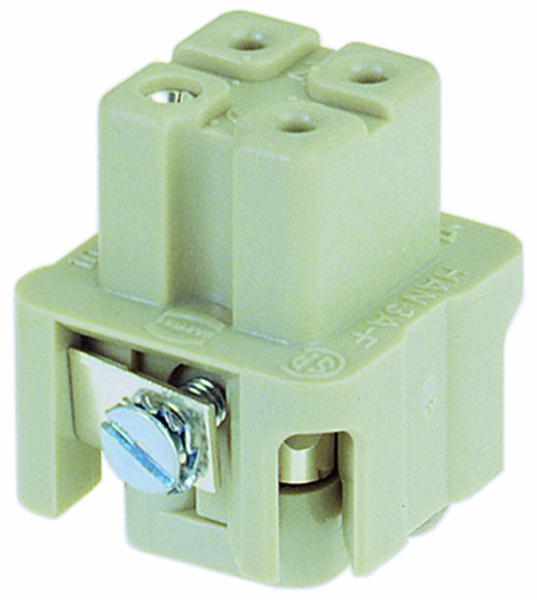

Harting 09200032711
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Inserts, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 3 A, Contacts: 3, Conductor cross-section: 0.75 ... 1.5 mm², Copper alloy, Silver platedInserts, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 3 A, Contacts: 3
Harting 09200032711 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Romania
- eCl@ss
- 27440205 Contact insert for industrial connectors
- European customs tariff number
- 85366990
- Net weight
- 13.35 g
- Packaging size
- 10
Identification
- Category
- Inserts
- Series
- Han A
Material properties
- China RoHS
- 50
- Colour (insert)
- RAL 7032 (pebble grey)
- ELV status
- compliant with exemption
- Material (contacts)
- Copper alloy
- Material flammability class acc. to UL 94
- V-0
- Material (insert)
- Polycarbonate (PC)
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- Lead
- RoHS
- compliant with exemption
- Surface (contacts)
- Silver plated
Specifications and approvals
- Approvals
- DNV GL
- Specifications
- EN 60664-1 || IEC 61984
- UL / CSA
- UL 1977 ECBT2.E235076 || CSA-C22.2 No. 182.3 ECBT8.E235076
Technical characteristics
- Conductor cross-section
- 0.75 ... 1.5 mm²
- Insulation resistance
- >10
- Limiting temperature
- -40 ... +125 °C
- Mating cycles
- ≥ 500
- Pollution degree
- 3
- Rated current
- 10 A
- Rated impulse voltage
- 4 kV
- Rated voltage acc. to UL
- 600 V
- Rated voltage conductor-conductor
- 400 V
- Rated voltage conductor-earth
- 230 V
- Stripping length
- 2.5 ... 5.5 mm
- Tightening torque
- 0.25 Nm
Version
- Gender
- Female
- Number of contacts
- 3
- PE contact
- Yes
- Size
- 3 A
- Termination method
- Screw termination
