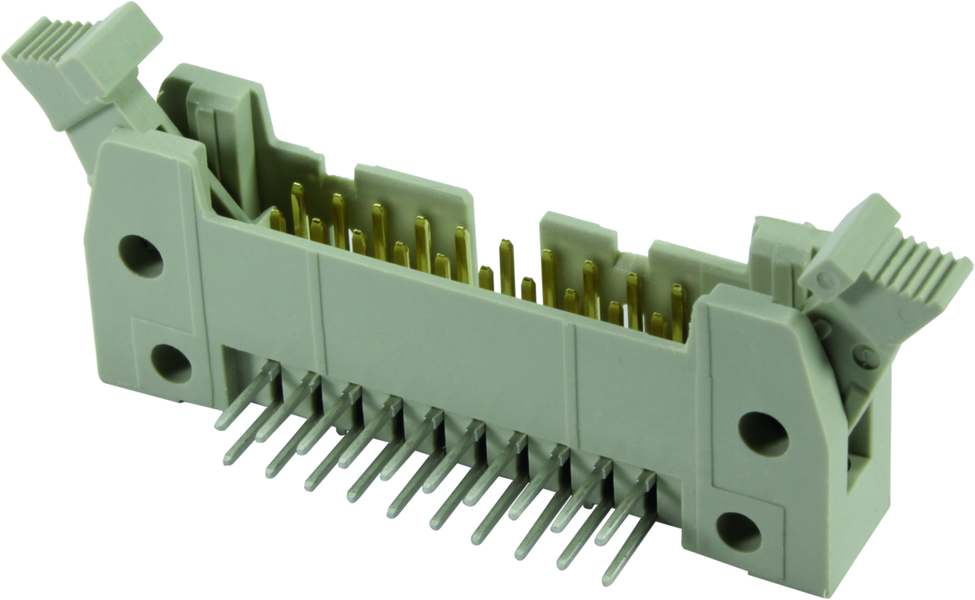

Harting 09185106913
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Connectors, Male connector, Wave soldering termination, Rated current: 1 A, Contacts: 10, Angled, Copper alloy, Sn over Ni, Termination side, Au over Pd/Ni, Mating side, Performance level: 2, Thermoplastic resin (PBT), GreyConnectors, Male connector, Wave soldering termination, Rated current: 1 A, Contacts: 10, Angled
Harting 09185106913 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Romania
- eCl@ss
- 27460201 PCB connector (board connector)
- European customs tariff number
- 85366990
- Net weight
- 4.5 g
- Packaging size
- 100
Identification
- Category
- Connectors
- Description of the contact
- Angled
- Element
- Male connector
- Series
- SEK Standard
Material properties
- China RoHS
- e
- Colour (insert)
- Grey
- ELV status
- compliant
- Material (contacts)
- Copper alloy
- Material flammability class acc. to UL 94
- V-0
- Material (insert)
- Thermoplastic resin (PBT)
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- No
- RoHS
- compliant
- Surface (contacts)
- Sn over Ni Termination side || Au over Pd/Ni Mating side
Specifications and approvals
- Railway classification
- F3/I3
- Specifications
- IEC 60603-13
- UL / CSA
- UL 1977 ECBT2.E102079 || CSA-C22.2 No. 182.3 ECBT8.E102079
Technical characteristics
- Contact resistance
- ≤ 20 mΩ
- Contact rows
- 2
- Contact spacing (termination side)
- 2.54 mm
- Insertion and withdrawal force
- ≤ 20 N
- Insulation resistance
- >10
- Isolation group
- IIIa (175 ≤ CTI < 400)
- Limiting temperature
- -55 ... +125 °C
- Mating cycles
- ≥ 250
- Rated current
- 1 A
- Test voltage U r.m.s.
- 1 kV
Version
- Connection type
- PCB to cable
- Locking type
- With short levers
- Number of contacts
- 10
- Performance level
- 2
- Termination length
- 2.9 mm
- Termination method
- Wave soldering termination
