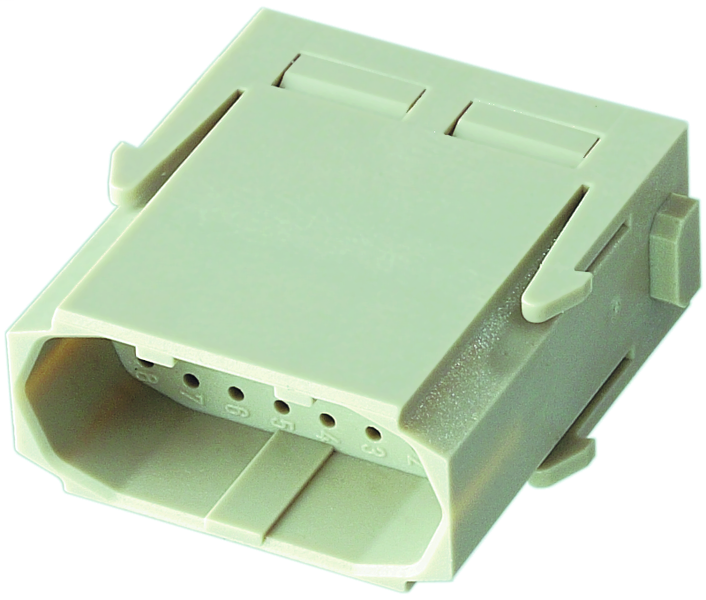

Harting 09140253001
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Han® High Density module, Crimp termination, Male, Contacts: 25, Conductor cross-section: 0.09 ... 0.52 mm², Rated current: 4 A, Polycarbonate (PC), RAL 7032 (pebble grey)Han® High Density module, Crimp termination, Male, Contacts: 25, Conductor cross-section: 0.09 ... 0.52 mm², Rated current: 4 A
Harting 09140253001 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 27440217 Module for industrial connectors (power/signals)
- European customs tariff number
- 85389099
- Net weight
- 9.71 g
- Packaging size
- 2
Identification
- Category
- Modules
- Series
- Han-Modular
- Type of module
- Han
Material properties
- China RoHS
- e
- Colour (insert)
- RAL 7032 (pebble grey)
- ELV status
- compliant
- Material flammability class acc. to UL 94
- V-0
- Material (insert)
- Polycarbonate (PC)
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- RoHS
- compliant
Specifications and approvals
- Specifications
- EN 60664-1 || IEC 61984
- UL / CSA
- UL 1977 ECBT2.E235076
Technical characteristics
- Conductor cross-section
- 0.09 ... 0.52 mm²
- Insulation resistance
- >10
- Limiting temperature
- -40 ... +125 °C
- Mating cycles
- ≥ 500
- Pollution degree
- 3
- Rated current
- 4 A
- Rated impulse voltage
- 0.8 kV
- Rated voltage
- 50 V
- Rated voltage acc. to UL
- 30 V
Version
- Details
- Please order crimp contacts separately.
- Gender
- Male
- Number of contacts
- 25
- Termination method
- Crimp termination
