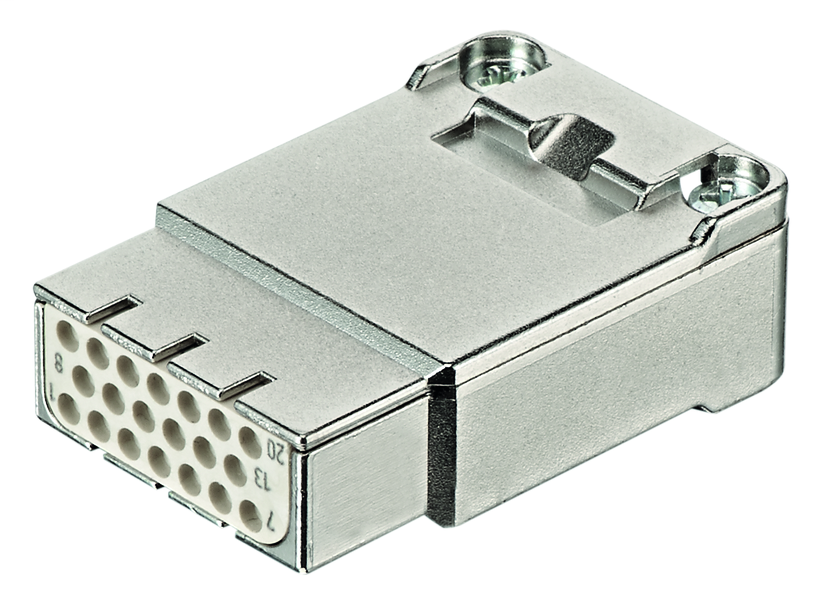

Harting 09140203113
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Crimp termination, Female, Contacts: 20, + shielding, Conductor cross-section: 0.09 ... 0.52 mm², Rated current: 4 A, Liquid crystal polymer (LCP)
Harting 09140203113 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 27440218 Module for industrial connectors (data)
- European customs tariff number
- 85389099
- Net weight
- 30 g
- Packaging size
- 1
Identification
- Category
- Inserts
- Specification
- Han
Material properties
- China RoHS
- e
- ELV status
- compliant
- Material flammability class acc. to UL 94
- V-0
- Material (insert)
- Liquid crystal polymer (LCP)
- Material (shielding)
- Zinc die-cast, nickel-plated
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- No
- RoHS
- compliant
Specifications and approvals
- Approvals
- DNV GL
- Specifications
- EN 60664-1 || IEC 61984
- UL / CSA
- UL 1977 ECBT2.E235076
Technical characteristics
- Conductor cross-section
- 0.09 ... 0.52 mm²
- Contact resistance, shielding
- ≤ 100 mΩ
- Limiting temperature
- -40 ... +85 °C
- Mating cycles
- ≥ 500
- Pollution degree
- 3
- Rated current
- 4 A
- Rated impulse voltage
- 0.8 kV
- Rated voltage
- 32 V
Version
- Additional contacts
- + shielding
- Details
- Please order crimp contacts separately.
- Gender
- Female
- Number of contacts
- 20
- Termination method
- Crimp termination
