Harting 09140052647
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

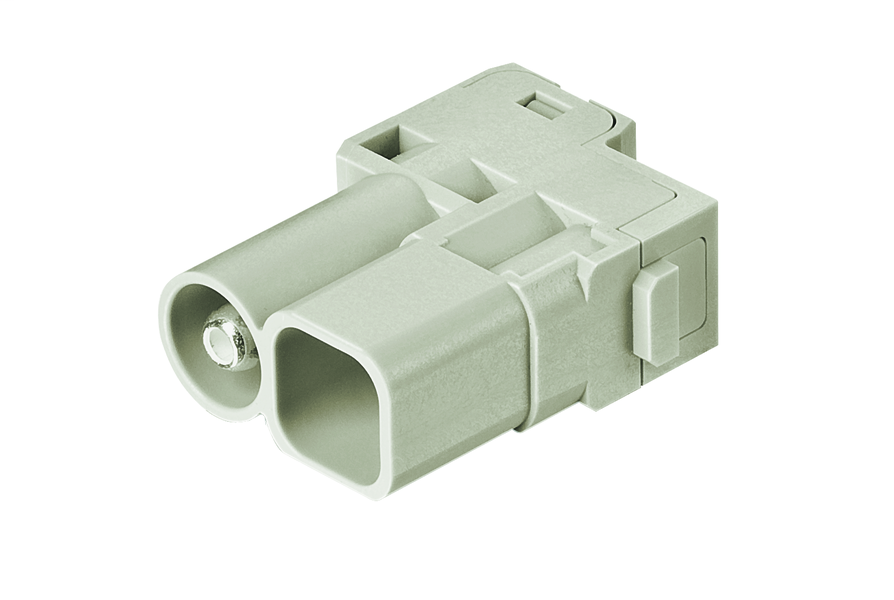

Han® 70 A Hybrid module, Axial screw termination / crimp termination, Male, Contacts: 1, + 4 additional signal contacts, Conductor cross-section: 14 ... 22 mm², Rated current: 70 A, Polycarbonate (PC), RAL 7032 (pebble grey)Han® 70 A Hybrid module, Axial screw termination / crimp termination, Male, Contacts: 1, + 4 additional signal contacts
Harting 09140052647 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 27440217 Module for industrial connectors (power/signals)
- European customs tariff number
- 85366990
- Net weight
- 20.66 g
- Packaging size
- 2
Identification
- Category
- Modules
- Series
- Han-Modular
- Type of module
- Han
Material properties
- China RoHS
- 50
- Colour (insert)
- RAL 7032 (pebble grey)
- ELV status
- compliant with exemption
- Material flammability class acc. to UL 94
- V-0
- Material (insert)
- Polycarbonate (PC)
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- Lead
- RoHS
- compliant with exemption
- RoHS exemptions
- Lead as an alloying element in steel for machining purposes and in galvanised steel containing up to 0,35 % lead by weight / Lead as an alloying element in steel for machining purposes containing up to 0,35 % lead by weight and in batch hot dip galvanised steel components containing up to 0,2 % lead by weight || Copper alloy containing up to 4 % lead by weight
Specifications and approvals
- Approvals
- DNV GL
- Specifications
- EN 60664-1 || IEC 61984
- UL / CSA
- UL 1977 ECBT2.E235076
Technical characteristics
- Conductor cross-section
- 14 ... 22 mm²
- Contact resistance
- ≤ 0.5 mΩ
- Insulation resistance
- >10
- Limiting temperature
- -40 ... +125 °C
- Mating cycles
- ≥ 500
- Pollution degree
- 3
- Pollution degree (signal)
- 3
- Rated current
- 70 A
- Rated current (signal)
- 16 A
- Rated impulse voltage
- 8 kV
- Rated impulse voltage (signal)
- 6 kV
- Rated voltage
- 1,000 V
- Rated voltage (signal)
- 400 V
- Stripping length
- 12.5 ... 13.5 mm
- Tightening torque
- 4 Nm @ 14 mm² || 4 Nm @ 16 mm² || 4 Nm @ 22 mm²
Version
- Additional contacts
- + 4 additional signal contacts
- Details
- Please order signal contacts separately.
- Gender
- Male
- Number of contacts
- 1
- Termination method
- Axial screw termination / crimp termination
