Harting 09140023123
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

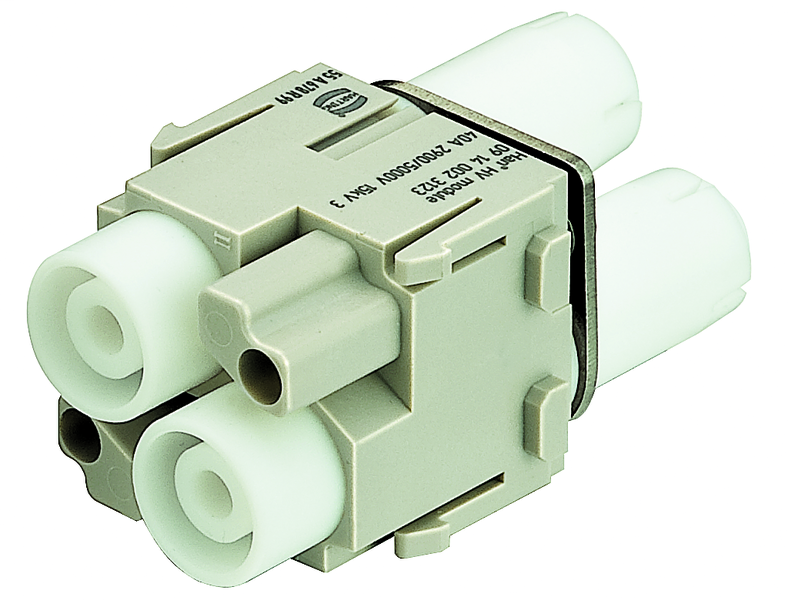

Han® HV module, for Han® C crimp contacts, Crimp termination, Female, Contacts: 2, Conductor cross-section: 1.5 ... 10 mm², Rated current: 40 A, Polycarbonate / Teflon (PTFE), RAL 7032 (pebble grey)Han® HV module, for Han® C crimp contacts, Crimp termination, Female, Contacts: 2, Conductor cross-section: 1.5 ... 10 mm², Rated current: 40 A
Harting 09140023123 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 27440217 Module for industrial connectors (power/signals)
- European customs tariff number
- 85389099
- Net weight
- 52.36 g
- Packaging size
- 1
Identification
- Category
- Modules
- Description of the module
- for Han
- Series
- Han-Modular
- Type of module
- Han
Material properties
- China RoHS
- e
- Colour (insert)
- RAL 7032 (pebble grey)
- ELV status
- compliant
- Material flammability class acc. to UL 94
- V-0
- Material (insert)
- Polycarbonate / Teflon (PTFE)
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- No
- RoHS
- compliant
Specifications and approvals
- Approvals
- DNV GL
- Specifications
- EN 60664-1 || IEC 61984 || EN 50124-1 || IEC 60352-4
- UL / CSA
- UL 1977 ECBT2.E235076 || CSA-C22.2 No. 182.3 ECBT8.E235076
Technical characteristics
- Conductor cross-section
- 1.5 ... 10 mm²
- Insulation resistance
- >10
- Limiting temperature
- -40 ... +125 °C
- Mating cycles
- ≥ 500
- Pollution degree
- 3
- Rated current
- 40 A
- Rated current acc. to UL
- 31 A
- Rated impulse voltage
- 15 kV
- Rated voltage acc. to UL
- 5,000 V
- Rated voltage conductor-conductor
- 5,000 V
- Rated voltage conductor-earth
- 2,900 V
Version
- Details
- Please order crimp contacts separately.
- Gender
- Female
- Number of contacts
- 2
- Pack contents
- 1 module || 2 locking sleeves || 2 heat shrink tubes
- Termination method
- Crimp termination
