Harting 09120084751
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

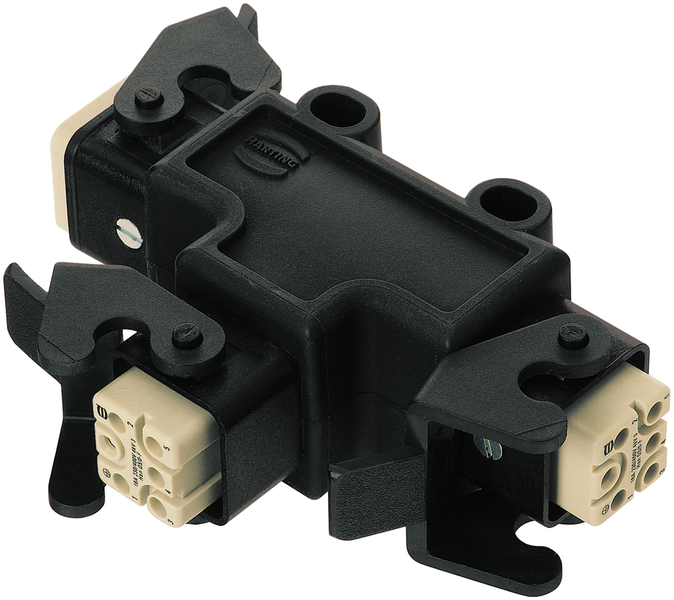

Energy distributor, With 3x Han® Q 5/0, In Han® 3 A Housings, bulkhead mounting, Contacts: 4, Material (hood/housing): Polyamide (PA), RAL 9005 (jet black)Energy distributor, With 3x Han® Q 5/0, In Han® 3 A Housings, bulkhead mounting, Contacts: 4
Harting 09120084751 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 27142409 Small distribution board
- European customs tariff number
- 85366990
- Net weight
- 90 g
- Packaging size
- 1
Identification
- Category
- Energy distributors
- Element
- Energy distributor
- Series of hoods/housings
- Han-Power
- Specification
- With 3x Han || Q 5/0 || In Han || 3 A Housings, bulkhead mounting
Material properties
- China RoHS
- 50
- Colour (hood/housing)
- RAL 9005 (jet black)
- ELV status
- compliant with exemption
- Material (contacts)
- Copper alloy
- Material flammability class acc. to UL 94
- V-0
- Material (hood/housing)
- Polyamide (PA)
- Material (locking)
- Polyamide (PA)
- Material (seal)
- NBR
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- Lead
- RoHS
- compliant with exemption
Specifications and approvals
- CE
- Yes
- Specifications
- EN 60664-1 || IEC 61984
- UL / CSA
- UL 2237 PVVA.E318390 || CSA-C22.2 No. 182.3 PVVA7.E318390
Technical characteristics
- Insulation resistance
- >10
- Limiting temperature
- -40 ... +125 °C
- Mating cycles
- ≥ 500
- Pollution degree
- 3
- Rated current
- 16 A
- Rated impulse voltage
- 4 kV
- Rated voltage acc. to UL
- 600 V
- Rated voltage conductor-conductor
- 400 V
- Rated voltage conductor-earth
- 230 V
Version
- Number of contacts
- 4
- PE contact
- Yes
