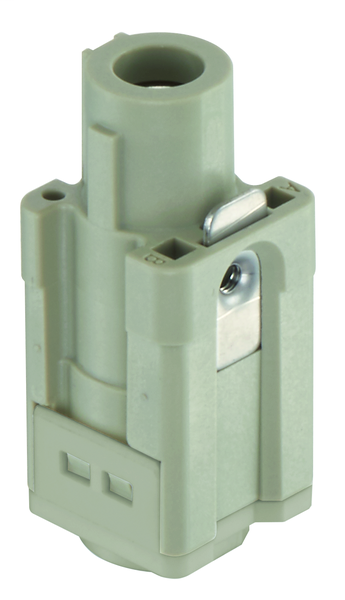

Harting 09120012751

Commercial data

• Country of origin
  • Germany
• eCl@ss
  • 27440205 Contact insert for industrial connectors
• European customs tariff number
  • 85366990
• Net weight
  • 36.9 g
• Packaging size
  • 1

Identification

• Category
  • Inserts
• Identification
  • 1/0 protected
• Series
  • Han

Material properties

• China RoHS
  • e
• Colour (insert)
  • RAL 7032 (pebble grey)
• ELV status
  • compliant
• Material (contacts)
  • Copper alloy
• Material flammability class acc. to UL 94
  • V-0
• Material (insert)
  • Polycarbonate (PC) || Polyamide (PA)
• REACH ANNEX XIV substances
  • No
• REACH Annex XVII substances
  • No
• REACH SVHC substances
  • No
• RoHS
  • compliant
• Surface (contacts)
  • Silver plated

Specifications and approvals

• Specifications
  • EN 60664-1 || IEC 61984

Technical characteristics

• Conductor cross-section
  • AWG 6 ... AWG 4
• Contact resistance
  • ≤ 0.3 mΩ
• Insulation resistance
  • >10
• Limiting temperature
  • -40 ... +125 °C
• Mating cycles
  • ≥ 500
• Pollution degree
  • 3
• Rated current
  • ‌ 100 A
• Rated impulse voltage
  • 6 kV
• Rated voltage
  • 400 V
• Stripping length
  • 10 mm
• Tightening torque
  • 6 ... ‌7 Nm

Version

• Details
  • The described connectors are connectors without breaking capacity (COC) according to IEC 61984 and must not be coupled or decoupled under electrical load during use as intended! || Only cables with protection class 2 shall be used! || The axial screw termination is suitable for fine stranded wires according to EN 60228 class 5. Using alternative cables have to be tested separately. || For the assembly within bulkhead mounted housings the described installation conditions of the data and type sheets must be respected. || Only the housings linked in the eShop shall be used! || For the connection of the conductor into the axial screw contact use hex key with A/F 4.
• Gender
  • Female
• Number of contacts
  • 1
• Size
  • 3 A
• Termination method
  • Axial screw termination
