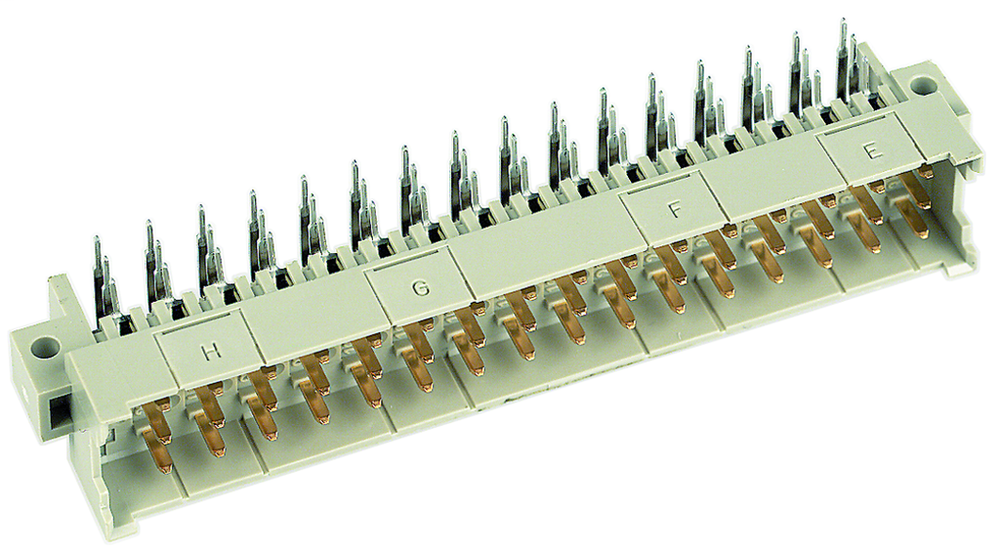

Harting 09061486901
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Connectors, Male connector, Wave soldering termination, Rated current: 6 A, Contacts: 48, Angled, Copper alloy, Noble metal, Mating side, Sn over Ni, Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Hole coding, Shroud coding, Coding with loss of contacts, D20 coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)Connectors, Male connector, Wave soldering termination, Rated current: 6 A, Contacts: 48, Angled
Harting 09061486901 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 27460201 PCB connector (board connector)
- European customs tariff number
- 85366990
- Net weight
- 24.06 g
- Packaging size
- 20
Identification
- Category
- Connectors
- Description of the contact
- Angled
- Element
- Male connector
- Features
- lead-free
- Identification
- Type F
- Series
- DIN 41612
Material properties
- China RoHS
- e
- Colour (insert)
- RAL 7032 (pebble grey)
- ELV status
- compliant
- Material (contacts)
- Copper alloy
- Material flammability class acc. to UL 94
- V-0
- Material (insert)
- Thermoplastic resin, glass-fibre filled
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- No
- RoHS
- compliant
- Surface (contacts)
- Noble metal Mating side || Sn over Ni Termination side
Specifications and approvals
- Railway classification
- F4/I3 acc. to NFF 16-101/102
- Specifications
- IEC 60603-2
- UL / CSA
- UL 1977 ECBT2.E102079 || CSA-C22.2 No. 182.3 ECBT8.E102079
Technical characteristics
- Clearance distance
- ≥ 1.6 mm
- Contact resistance
- ≤ 15 mΩ
- Contact rows
- 3
- Contact spacing (mating side)
- 3.81 mm || 5.08 mm
- Contact spacing (termination side)
- 2.54 mm || 5.08 mm
- Creepage distance
- ≥ 3 mm
- Hot plugging
- No
- Insertion and withdrawal force
- ≤ 75 N
- Insulation resistance
- >10
- Isolation group
- IIIa (175 ≤ CTI < 400)
- Limiting temperature
- -55 ... +125 °C
- Mating cycles
- ≥ 400
- Rated current
- Rated current measured at 20 °C, see derating curve for details
- Test voltage U r.m.s.
- 1.55 kV (contact-contact) || 2.5 kV (contact-ground)
Version
- Coding
- Hole coding || Shroud coding || Coding with loss of contacts || D20 coding
- Connection type
- Motherboard to daughtercard || Extender card || PCB to cable
- Contact configuration
- Rows b, d, f and z, positions 2, 4, ... , 30, 32
- Number of contacts
- 48
- PCB fixing
- With fixing flange
- Performance level
- 2 || acc. to IEC 60603-2
- Termination method
- Wave soldering termination
