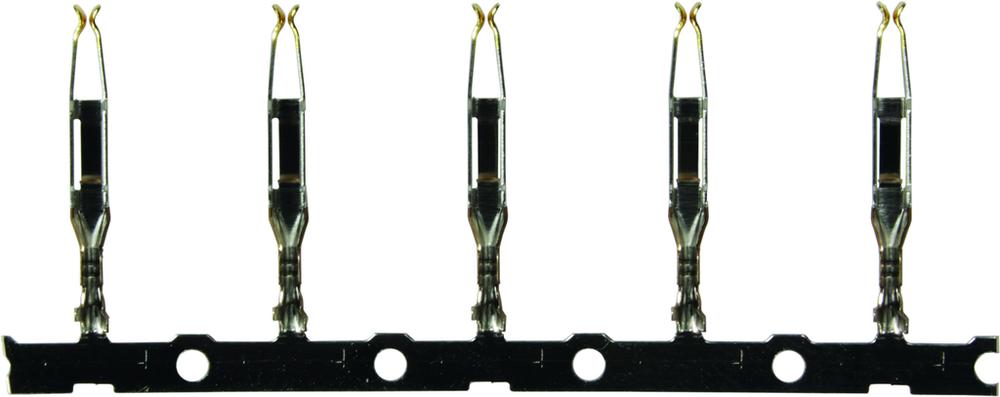

Harting 09060006472
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Crimp contact, Copper alloy, Noble metal, Mating side, Nickel plated, Termination side, Conductor cross-section: 0.5 ... 1.5 mm² for FC 3 contacts, AWG 20 ... AWG 16 for FC 3 contactsCrimp contact, Copper alloy, Noble metal, Mating side, Nickel plated, Termination side, Conductor cross-section: 0.5 ... 1.5 mm² for FC 3 contacts
Harting 09060006472 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 27440204 Contact for industrial connectors
- European customs tariff number
- 85366990
- Net weight
- 1,795 g
- Packaging size
- 1
Identification
- Category
- Contacts
- Contacts for
- DIN 41612 Type D || DIN 41612 Type E || DIN 41612 Type F || DIN 41612 Type 2F || DIN 41612 Type F9 || DIN 41612 Type MH 24+7 || DIN 41612 Type FM
- Features
- lead-free
- Type of contact
- Crimp contact
Material properties
- China RoHS
- e
- ELV status
- compliant
- Material (contacts)
- Copper alloy
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- No
- RoHS
- compliant
- Surface (contacts)
- Noble metal Mating side || Nickel plated Termination side
Specifications and approvals
- Specifications
- IEC 60603-2 (complementary)
Technical characteristics
- Conductor cross-section
- AWG 20 ... AWG 16 for FC 3 contacts
- Contact resistance
- ≤ 20 mΩ
- Mating cycles
- ≥ 500
- Stripping length
- 3.5 ... 4 mm
- Tensile strength
- 60 ... 135 N
- Wire outer diameter
- 1.6 ... 2.8 mm
Version
- Gender
- Female contact
- Manufacturing process
- Stamped contacts
- Pack contents
- 2500 bandoliered contacts
- Performance level
- 1
