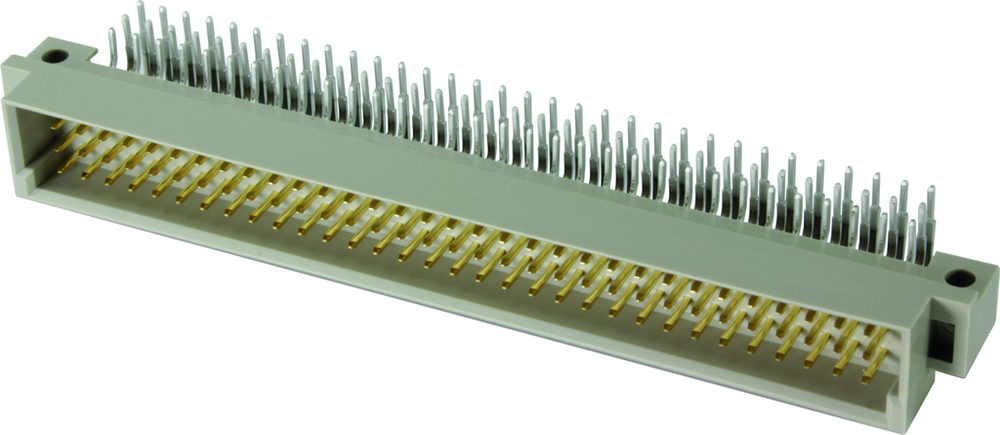

Harting 09031967921
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Connectors, Male connector, Wave soldering termination, Rated current: 2 A, Contacts: 96, Angled, Copper alloy, Noble metal, Mating side, Sn over Ni, Termination side, Performance level: 3, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)Connectors, Male connector, Wave soldering termination, Rated current: 2 A, Contacts: 96, Angled
Harting 09031967921 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial data
- Country of origin
- Germany
- eCl@ss
- 27460201 PCB connector (board connector)
- European customs tariff number
- 85366990
- Net weight
- 14.55 g
- Packaging size
- 100
Identification
- Category
- Connectors
- Description of the contact
- Angled
- Element
- Male connector
- Features
- lead-free
- Identification
- Type C
- Series
- DIN 41612
Material properties
- China RoHS
- e
- Colour (insert)
- RAL 7032 (pebble grey)
- ELV status
- compliant
- Material (contacts)
- Copper alloy
- Material flammability class acc. to UL 94
- V-0
- Material (insert)
- Thermoplastic resin, glass-fibre filled
- REACH ANNEX XIV substances
- No
- REACH Annex XVII substances
- No
- REACH SVHC substances
- No
- RoHS
- compliant
- Surface (contacts)
- Noble metal Mating side || Sn over Ni Termination side
Specifications and approvals
- Railway classification
- F4/I3 acc. to NFF 16-101/102
- Specifications
- IEC 60603-2
- UL / CSA
- UL 1977 ECBT2.E102079 || CSA-C22.2 No. 182.3 ECBT8.E102079
Technical characteristics
- Clearance distance
- ≥ 1.2 mm
- Contact resistance
- ≤ 20 mΩ
- Contact rows
- 3
- Contact spacing (mating side)
- 2.54 mm
- Contact spacing (termination side)
- 2.54 mm
- Creepage distance
- ≥ 1.2 mm
- Hot plugging
- No
- Insertion and withdrawal force
- ≤ 90 N
- Insulation resistance
- >10
- Isolation group
- IIIa (175 ≤ CTI < 400)
- Limiting temperature
- -55 ... +125 °C
- Mating cycles
- ≥ 50
- Rated current
- Rated current measured at 20 °C, see derating curve for details
- Test voltage U r.m.s.
- 1 kV
Version
- Coding
- Coding with loss of contacts
- Connection type
- Motherboard to daughtercard || Extender card || PCB to cable
- Contact configuration
- Rows a, b and c, positions 1, 2, ... , 31, 32
- Number of contacts
- 96
- PCB fixing
- With fixing flange
- Performance level
- 3 || acc. to IEC 60603-2
- Termination method
- Wave soldering termination
