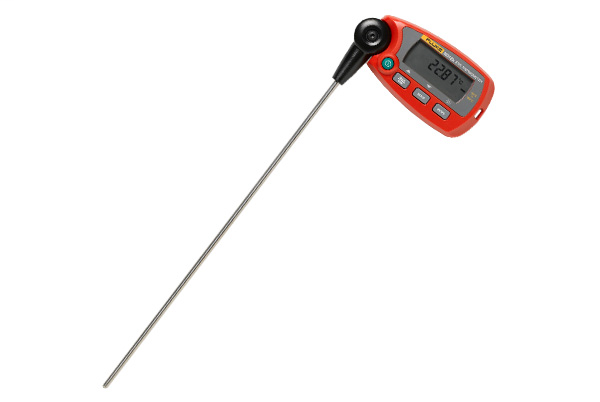

Fluke 1552A-12

Specifications

• Accuracy (1 year)
  • ±0.05°C (±0.09°F)
• AC power
  • null
• Calibration (included)
  • NVLAP-accredited, NIST-traceable
• Characterization
  • ITS-90
  • 1. See ordering information for optional data logging configurations
• Communications
  • RS-232 stereo jack (access calibration parameters only)
• Damping
  • Moving average of the most recent 2 to 10 readings (ON/OFF, 2, 5, 10)
• DC power
  • 3-AAA Batteries, typical battery life of 300 hours without LCD backlight
• Display units
  • °C, °F
• Electronics dimensions (H x W x D)
  • 114 x 57 x 25 mm (4.5 x 2.25 x 1.0 in)
• EMC compliance
  • EN61326:2006 Annex C; CISPR II Edition 5.0-2009; Class B
• Enclosure rating
  • IP50
• Logging intervals1
  • 2 seconds, 5 seconds, 10 seconds, 30 seconds, or 60 seconds; 2 minutes, 5 minutes, 10 minutes, 30 minutes, or 60 minutes
• Minimum immersion depth
  • 12 cm (4.8 in)
• Operating temperature range readout
  • -10°C to 50°C (14°F to 122°F)
  • -10°C to 50°C (14°F to 122°F)
• Optional data logging1
  • Up to 10,000 time-stamped readings stored to internal memory
• Probe hysteresis
  • ±0.01°C
• Probe sheath material
  • Stainless steel
• Probe temperature coefficient
  • 0.00385 Ω/Ω/°C nominal
• Response time
  • 4.8 mm diameter probe (3/16 in): 14 seconds 6.35 mm diameter probe (1/4 in): 21 seconds
• Sample rate
  • Selectable: 0.5 seconds, 1 second, 2 seconds (default 1 seconds)
  • Selectable: 0.5 seconds, 1 second, 2 seconds (default 1 seconds)
• Sensor length
  • ≤ 30 mm
• Sensor position (from sheath tip)
  • 3 mm (0.1 in)
• Sensor type
  • 100 Ω wire-wound PRT
• Storage temperature
  • -20°C to 60°C (-4°F to 140°F) 0% to 95% RH, non-condensing
• Temperature range
  • -80°C to 300°C (-112°F to 572°F)
• Temperature resolution
  • Selectable: 0.1, 0.01, 0.001 (default 0.01)
  • Selectable: 0.1, 0.01, 0.001 (default 0.01)
• Weight
  • 196 g (6.9 oz)
