Enerpac RSM50
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

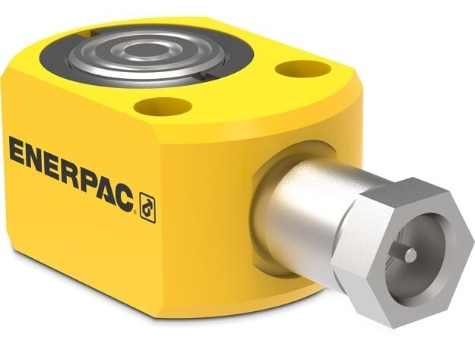

RSM50, 4.9 ton Capacity, .25 in Stroke, Low Height Hydraulic Cylinder
Enerpac RSM50 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Hydraulic Cylinders
- Base Mounting Hole Counter Bore Depth
- 0.17 in | 4,3 mm
- Base Mounting Hole Counter Bore Diameter
- 0.321 in | 9,1 mm
- Base Mounting Hole Diameter V
- 0.2 in | 5,5 mm
- Base Mounting Hole Pitch U
- 1.12 in | 28,5 mm
- Baseto Advance Port H
- 0.63 in | 16 mm
- Collapsed Height A
- 1.28 in | 32 mm
- Collapsed Height A Ranges
- 0 - 4.99 in | 0 - 127 mm
- Cylinder Bore Diameter E
- 1.13 in | 28,7 mm
- Cylinder Class
- 5 Imperial Tons
- Cylinder Effective Area Advance
- 0.99 in² | 6,5 cm²
- Cylinder Material
- Steel
- Extended Height B
- 1.53 in | 38 mm
- Maximum Cylinder Capacity Advance
- 4.9 Imperial Tons | 45 kN
- Maximum Operating Pressure Ranges psi
- 10000
- Oil Capacity Advance
- 0.25 in³ | 4 cm³
- Outside Diameter D
- 2.31 x 1.63 in | 58 x 41 mm
- Plunger Diameter F
- 1 in | 25,4 mm
- Plunger To Base L
- 0.81 in | 20 mm
- Plunger To Mounting Hole M
- 22 mm
- Plunger To Mounting Hole Min
- 0.88
- Plunger Type
- Solid
- Return Type
- Single-Acting, Spring Return
- Saddle Protrusionfrom Plunger K
- 0.04 in
- Saddle Protrusion From Plunger K
- 1 mm
- Saddle Protrusionfrom Plunger K1
- 1 mm
- Stroke Ranges
- 0 - 0.99 in | 0 - 23 mm
- Surface Treatment
- Paint
Specifications
- Country of Origin
- China
- News Feed Product Group
- Cylinders and Jacks
- Product Line
- Industrial Tools
- Shipping Weight
- 2.3 lbs
- Sub Types
- Low Height Cylinder
- Type
- Hydraulic Cylinders
- Weight
- 2.3 lbs | 1,0 kgs
