Description

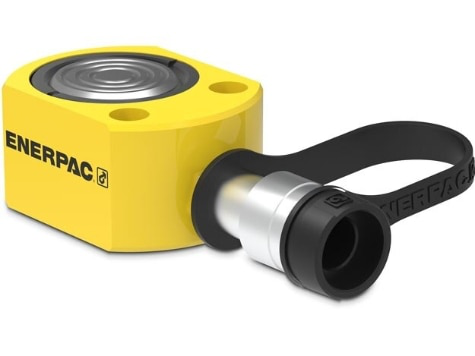

RSM200, 22.1 ton Capacity, .50 in Stroke, Low Height Hydraulic Cylinder
Enerpac RSM200 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Hydraulic Cylinders
- Base Mounting Hole Counter Bore Depth
- 0.39 in | 9,9 mm
- Base Mounting Hole Counter Bore Diameter
- 0.549 in | 15,1 mm
- Base Mounting Hole Diameter V
- 0.4 in | 10,0 mm
- Base Mounting Hole Pitch U
- 1.94 in | 49,3 mm
- Baseto Advance Port H
- 0.75 in | 19 mm
- Collapsed Height A
- 2.03 in | 51 mm
- Collapsed Height A Ranges
- 0 - 4.99 in | 0 - 127 mm
- Cylinder Bore Diameter E
- 2.38 in | 60,5 mm
- Cylinder Class
- 20 Imperial Tons
- Cylinder Effective Area Advance
- 4.43 in² | 28,7 cm²
- Cylinder Material
- Steel
- Extended Height B
- 2.47 in | 62 mm
- Maximum Cylinder Capacity Advance
- 22.1 Imperial Tons | 201 kN
- Maximum Operating Pressure Ranges psi
- 10000
- Oil Capacity Advance
- 1.94 in³ | 32 cm³
- Outside Diameter D
- 4.00 x 3.00 in | 101 x 76 mm
- Plunger Diameter F
- 2 in | 50,8 mm
- Plunger To Base L
- 1.56 in | 39 mm
- Plunger To Mounting Hole M
- 39 mm
- Plunger To Mounting Hole Min
- 1.56
- Plunger Type
- Solid
- Return Type
- Single-Acting, Spring Return
- Saddle Protrusionfrom Plunger K
- 0.04 in
- Saddle Protrusion From Plunger K
- 1 mm
- Saddle Protrusionfrom Plunger K1
- 1 mm
- Stroke Ranges
- 0 - 0.99 in | 0 - 23 mm
- Surface Treatment
- Paint
Specifications
- Country of Origin
- China
- News Feed Product Group
- Cylinders and Jacks
- Product Line
- Industrial Tools
- Shipping Weight
- 6.25 lbs
- Sub Types
- Low Height Cylinder
- Type
- Hydraulic Cylinders
- Upsell item
- SRS200TB,CUSP20
- Weight
- 6.8 lbs | 3,1 kgs
