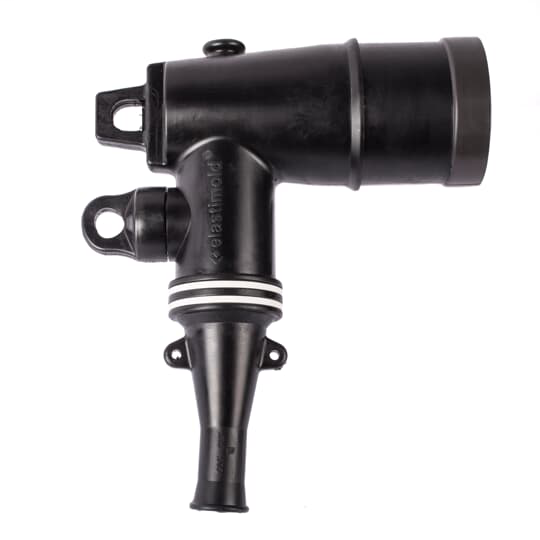

Elastimold 162LR-B
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
15kV 200 Amp, Loadbreak Elbow Connector with Test Point (Housing Only), .635 inch - .905 inch Cable Insulation Diameter. Housing with Elbow Probe, no Lug.15KV 200A LB ELBOW B W/TP
Elastimold 162LR-B is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Application
- Designed for connecting to and operating 15kV class, 200 Amp Distribution Apparatus.
- Brand / Label
- Elastimold
- Color
- Black
- Current Rating
- 200 A
- Insulation Material
- Yes, EPDM Rubber
- Material
- Housing - EPDM Rubber
- Number of Batteries
- 0
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Product Type
- Loadbreak Elbow Connector with Test Point
- Size
- .635 inch - .905 inch Cable Insulation Diameter
- Special Functions
- Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connection. Non-Corrosive Capacitive Test Point.
- Standards
- ANSI/IEEE Standard 386
- Temperature Range
- -40 to +65 °C
- UPC
- 075114186308
- Voltage Rating
- 15 kV
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
- UNSPSC
- 39121421
- WEEE Category
- Product Not in WEEE Scope
Container Information
- Package Level 1 Depth / Length
- 10.5 in267 mm
- Package Level 1 Height
- 12.5 in318 mm
- Package Level 1 Units
- 1 piece
- Package Level 1 Width
- 19.12 in486 mm
- Package Level 2 Units
- 15 piece
Dimensions
- Product Net Weight
- 1.99 lb902.494 g
Ordering
- Customs Tariff Number
- 8535908020
- EAN
- 0075114186308
