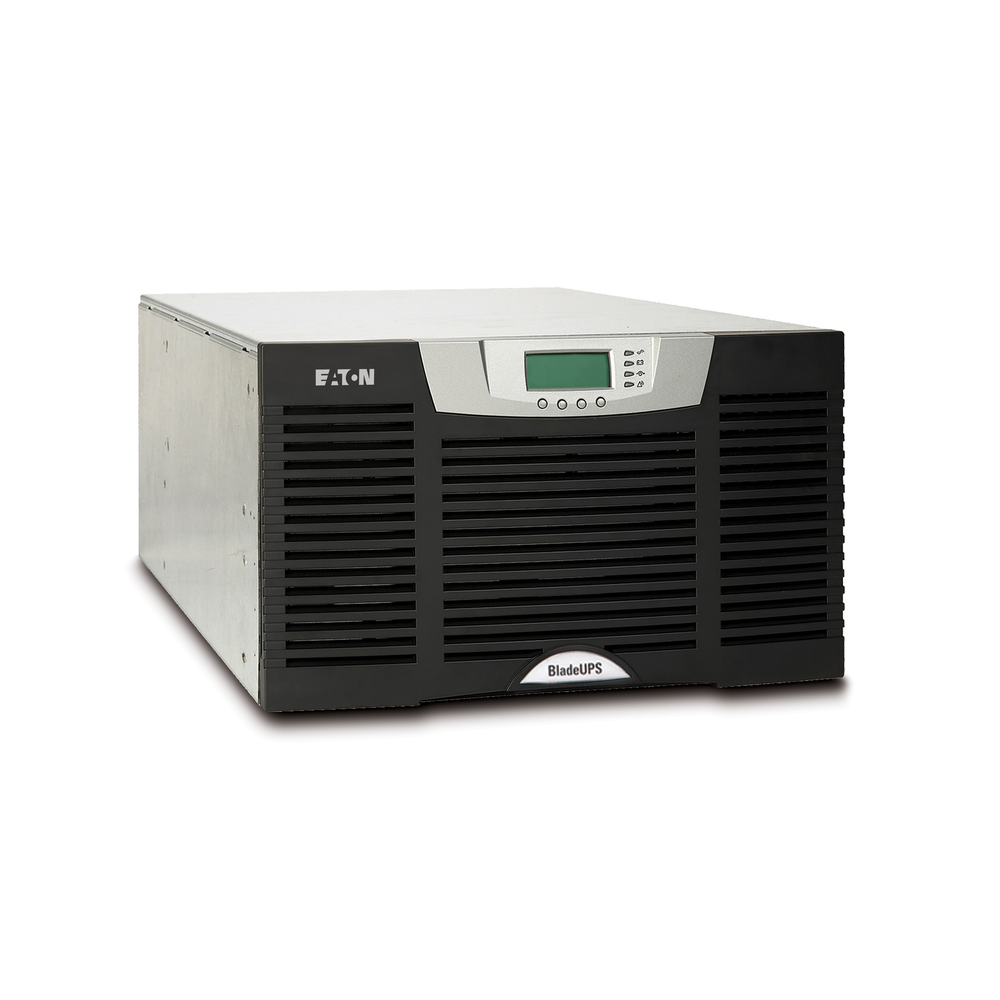

Eaton ZC1224400100000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Eaton ZC1224400100000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Battery Form Factor
- Battery pack with 10 internal batteries
- Battery Quantity
- 40
- Battery Rating
- 23 w/cell, 5AH, 240 Vdc string
- Battery Type
- Sealed, lead-acid, maintenance-free - VRLA
- Communication
- Serial
- Efficiency
- Up to 97% in HE Mode
- Ethernet Interface
- No
- [ETIM] Efficiency (Eco-Mode)
- 98.7
- [ETIM] Max Volt Dist Output(Linear Load)
- <3%
- Expansion Slots
- (2) available communication slot
- Extended Battery Capability
- Yes, add up to four additional 3U battery modules; 120 minutes at 50% load; 55 minutes at 100% load
- Height
- 10.3 IN
- Input Cord Length
- 4 ft
- Input Frequency Range
- 45-65 Hz
- Input Nominal Voltage
- 400Y/230V
- Input Power Factor
- >0.97 with IT loads (PFC power supplies, Load dependent in HE Mode)
- Length
- 26 IN
- Max Electric Current
- 24A
- Max Number of Battery Packs
- 4 internal packs, 4 external EBMs per UPS module
- Nominal Frequency
- 311-500 Vac
- Output Frequency
- 50/60 Hz
- Output Power Factor
- 1.0
- Output Voltage Range
- 207-253V Ph-Ph
- Output Waveform
- Sinusoidal
- Package Contents
- BladeUPS module, rack mount kit, batteries, communication card options, manual, software CD, Firmware CD, Serial communication cable
- Phase (Input)
- Three-phase
- Quantity
- 1
- Rack Mounting Kit
- Yes
- Receptacle
- 532C6
- Runtime at Full Load
- 4.7 min
- Software Compatibility
- UPS ships with Software Suite CD containing Intelligent Power Manager supervisory software and Intelligent Power Protector protection software
- Type
- UPS
- Weight
- 307 LB
- Width
- 17.4 IN
