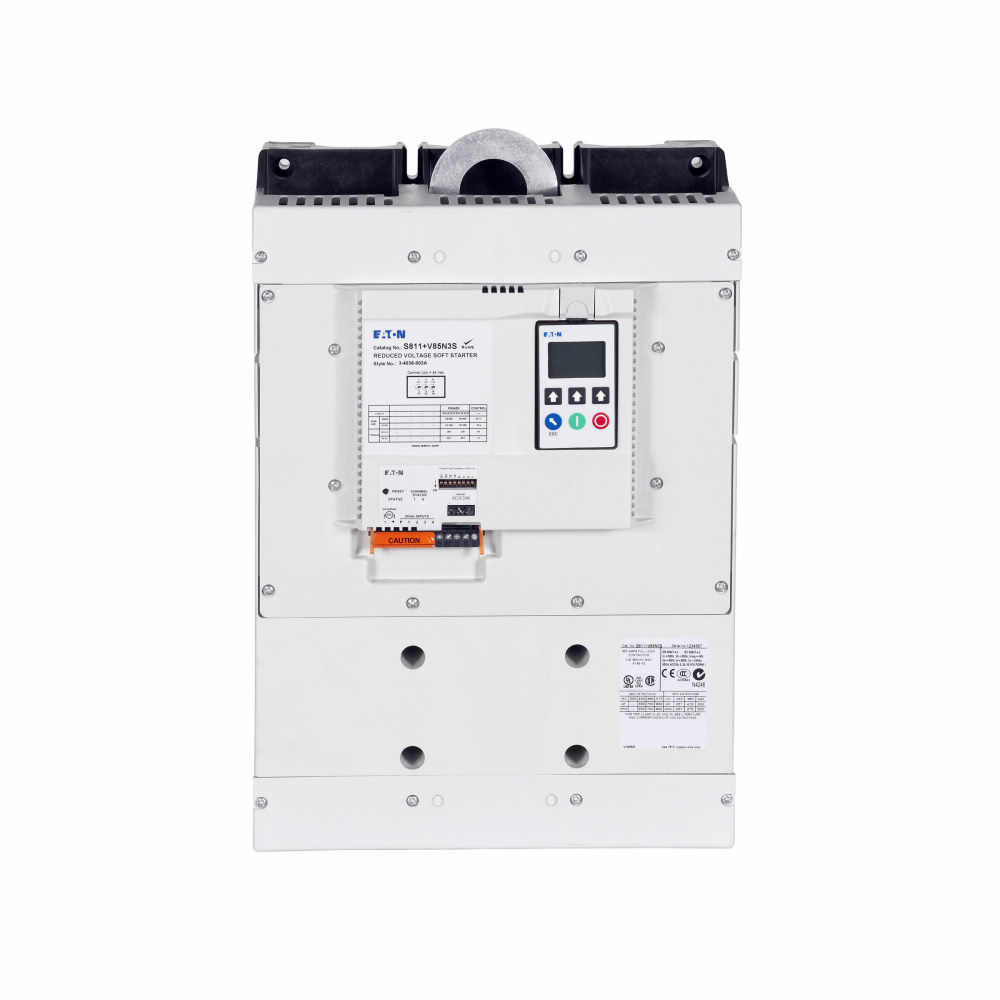

Eaton S811+V65N3S
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Eaton S811+ soft starter, 650 A, V-frame, Three-pole, 24 V power, -30°C to -50°C, 200-600 V operating voltage, 47-63 Hz, 1-2 conductors, #2/0 AWG to 500 kcmil wire, 120 Vdc, 240 Vac, Modbus RTU, NEMA 0, LCD display
Eaton S811+V65N3S is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
General
- Catalog Notes
- All units require a 24 Vdc power supply found on catalog Page V6-T1-85, or equivalent., S811+T_, S811+U_ and S811+V_ units require lug kits, S811+U50_ unit does not have IEC certification.
- Certifications
- IEC 60947-4-2
- Compliances
- CE Marked
- Product Height
- 16.57 in
- Product Length/Depth
- 7.39 in
- Product Weight
- 103 lb
- Product Width
- 11.05 in
- UPC
- 786685559155
- Warranty
- Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Specifications
- AC current - max
- 240 Vac
- Amperage Rating
- 650A
- Communication
- Modbus RTU
- DC current - max
- 120 Vdc
- Display material
- LCD
- Frame size
- V
- Frequency rating
- 47-63 Hz
- Module interface
- Digital interface module
- NEMA rating
- NEMA 0
- Number Of Poles
- Three-pole
- Operating temperature - max
- 50 °C
- Operating temperature - min
- -30 °C
- Operating voltage
- 200-600 V
- Power supply
- 24 V
- Size
- NEMA 0
- Type
- Soft starter
- Used with
- Three-phase motors
- Wire size
- #2/0 AWG-500 kcmil
