Description

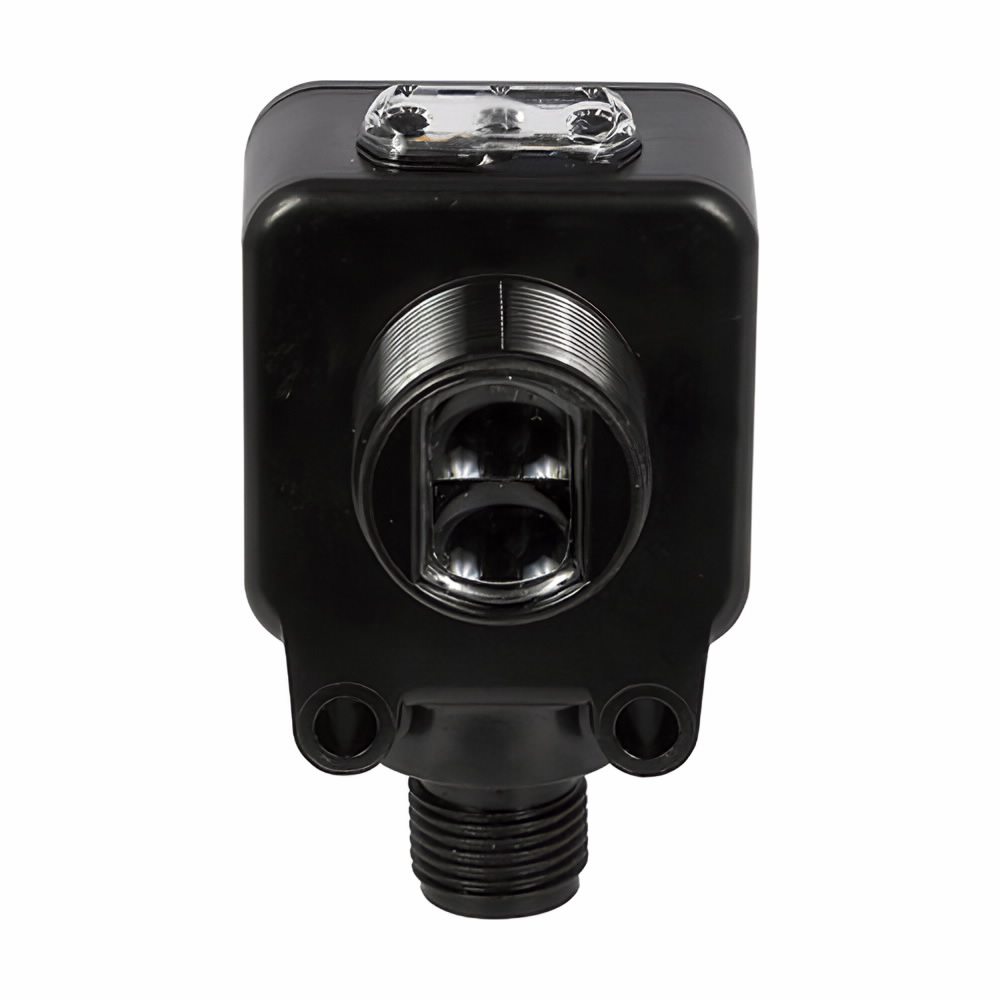

Eaton E65 Miniature Series Rectangular Body Photoelectric Sensor, Forward Viewing, dist 4 In., Wired for Either NPN/PNP Transistor Output, 100 mA at 30Vdc, 6.6 Ft. (2m) Cable, 10-30 Vdc input, Short circuit and transient, Diffuse Reflective
Eaton E65CBL2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
General
- Catalog Notes
- Ranges based on a 90% reflectance card
- Certifications
- UL Recognized
- Compliances
- CE Marked
- Product Height
- 2.04 in
- Product Length/Depth
- .51 in
- Product Weight
- .28 lb
- Product Width
- 1.1 in
- UPC
- 782114014226
- Warranty
- 3 year
Specifications
- Cable type
- Polyvinyl Chloride (PVC)
- Connection
- 6.6 ft (2 m) cable
- Contact configuration
- Wired for either NPN or PNP transistor output
- Contact Rating
- 100 mA at 30Vdc
- Cord length
- 79.2 ft
- Enclosure material
- ABS plastic
- Environmental rating
- NEMA 1, NEMA 3, NEMA 4, NEMA 12, NEMA 13, IP66
- Input voltage
- 10-30 Vdc
- LED indicator
- Yes
- Maximum DC current
- 100 mA
- Operating mode
- Diffuse reflective
- Operating temperature - max
- 122 °F
- Operating temperature - min
- 5 °F
- Protection
- Short circuit and transient
- Sensor type
- Diffuse reflective
- Switch type
- Photoelectric
