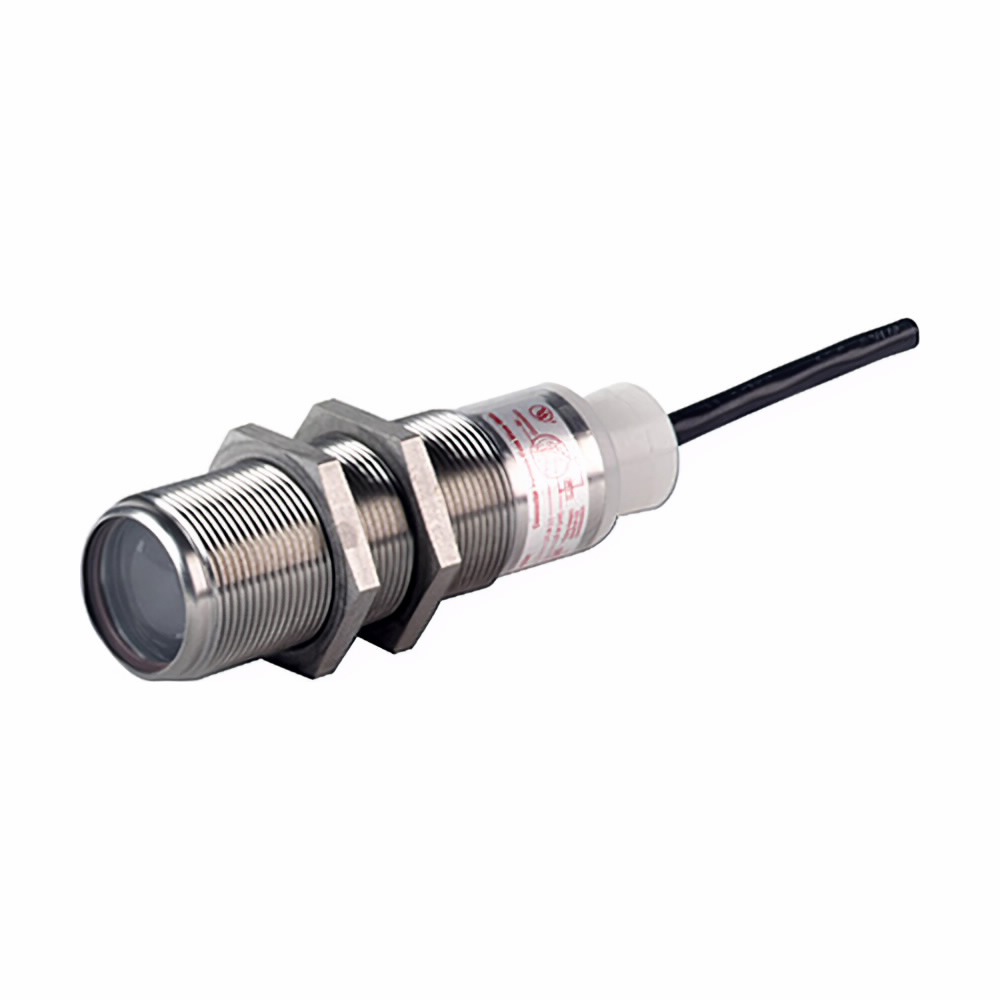

Eaton E58-18DP100-EDP
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Eaton harsh-duty sensor, E58 Tubular 18mm Photoelectric Sensor, 0.71 dia, dist. 4 In., 100 mA max DC, 2 Wire, 100 mA at 18-50Vdc/90-132Vac, 3 Pin Dual Key Pigtail Micro, 90-132Vac/18-50Vdc input, Auto reset
Eaton E58-18DP100-EDP is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
General
- Catalog Notes
- Sensor will detect a 90% reflectance card at the Sensing Range; sensor will ignore a 90% reflectance card at the Cutoff Range
- Certifications
- UL Listed
- Compliances
- CE Marked
- Product Height
- 3.15 in
- Product Length/Depth
- .71 in
- Product Weight
- .225 lb
- Product Width
- .71 in
- UPC
- 782114264553
- Warranty
- 3 year
Specifications
- Cable type
- Polyvinyl Chloride (PVC)
- Connection
- 3-pin dual key pigtail micro connector
- Contact configuration
- 2-wire AC/DC
- Contact Rating
- 100 mA at 18-50Vdc/90-132Vac
- Cord length
- 7 in
- Enclosure material
- Stainless steel
- Environmental rating
- NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP69K
- Input voltage
- 90-132 Vac, 18-50 Vdc
- LED indicator
- Output status: red
- Maximum DC current
- 100 mA
- Operating mode
- Background suppression
- Operating temperature - max
- 158 °F
- Operating temperature - min
- -40 °F
- Protection
- Auto reset short circuit
- Sensor type
- Back ground suppression
- Switch type
- Photoelectric
