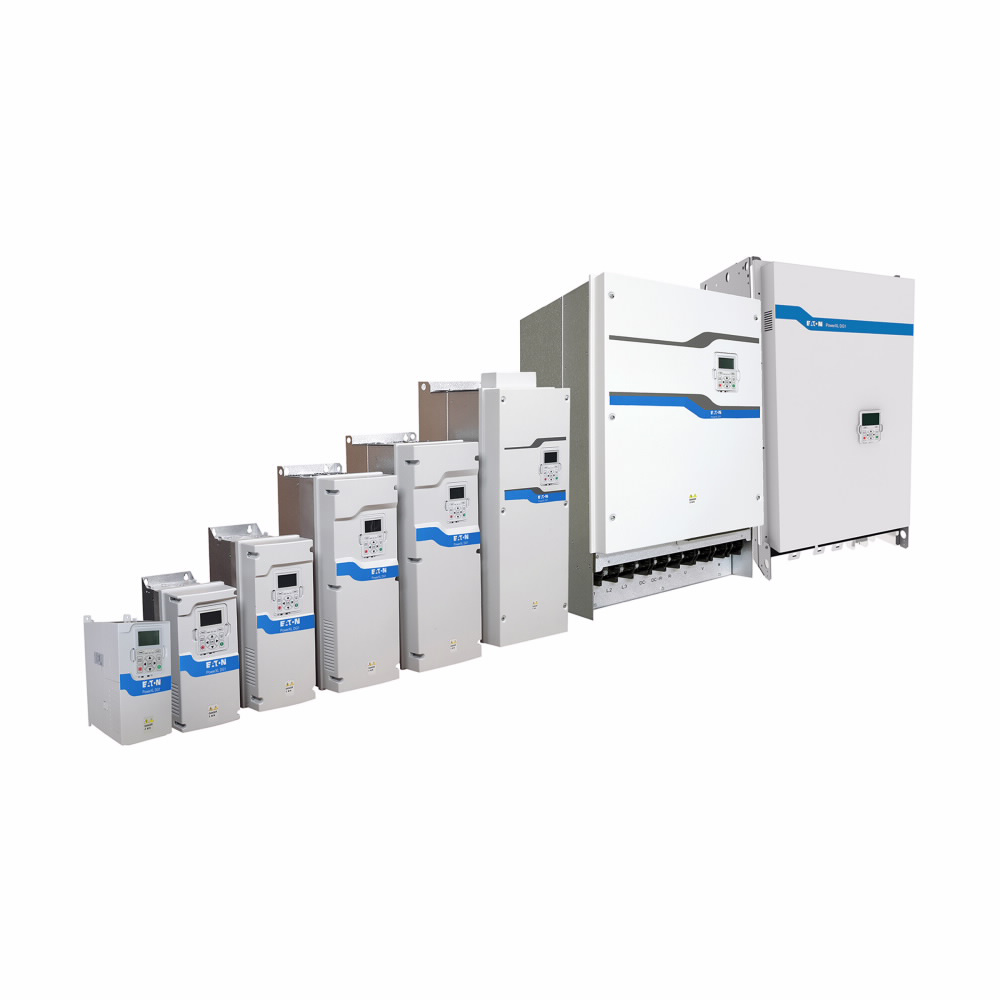

Eaton DG1-35052FB-C21C
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Eaton DG1-35052FB-C21C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
General
- Certifications
- cUL Listed
- Compliances
- CE Marked
- Product Height
- 28 in
- Product Length/Depth
- 17 in
- Product Weight
- 92 lb
- Product Width
- 15 in
- UPC
- 786685975290
- Warranty
- Eaton Selling Policy 25-000 generally applies with some exceptions. Drive products come with a standard 24 months from date of shipment and 36 months with Eaton certified start up all inclusive coverage parts labor and travel.
Specifications
- Brake chopper
- Brake chopper
- Communication
- EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU communication
- Display
- LCD graphical
- Enclosure
- IP21/type 1
- Frame size
- 5
- Frequency rating
- 50-60 Hz
- Horsepower
- 50 hp
- Input voltage
- 575 V, 525-600 V(-15%, +10%)
- Keypad
- Included
- Material
- Coated board
- Number of slots
- 2 expansion slots
- Output current - max
- 52 A
- Phase
- Three-phase in, three-phase out
- Power consumption
- 37 kW
- Protection
- Internal EMC filter, DC choke
- Protection filtering
- Internal EMC filter and DC choke
- Series
- DG1
- Software
- Active energy control, quick start wizard
- Special features
- Coated boards
- Torque rating
- CT
- Voltage rating
- 575 V
