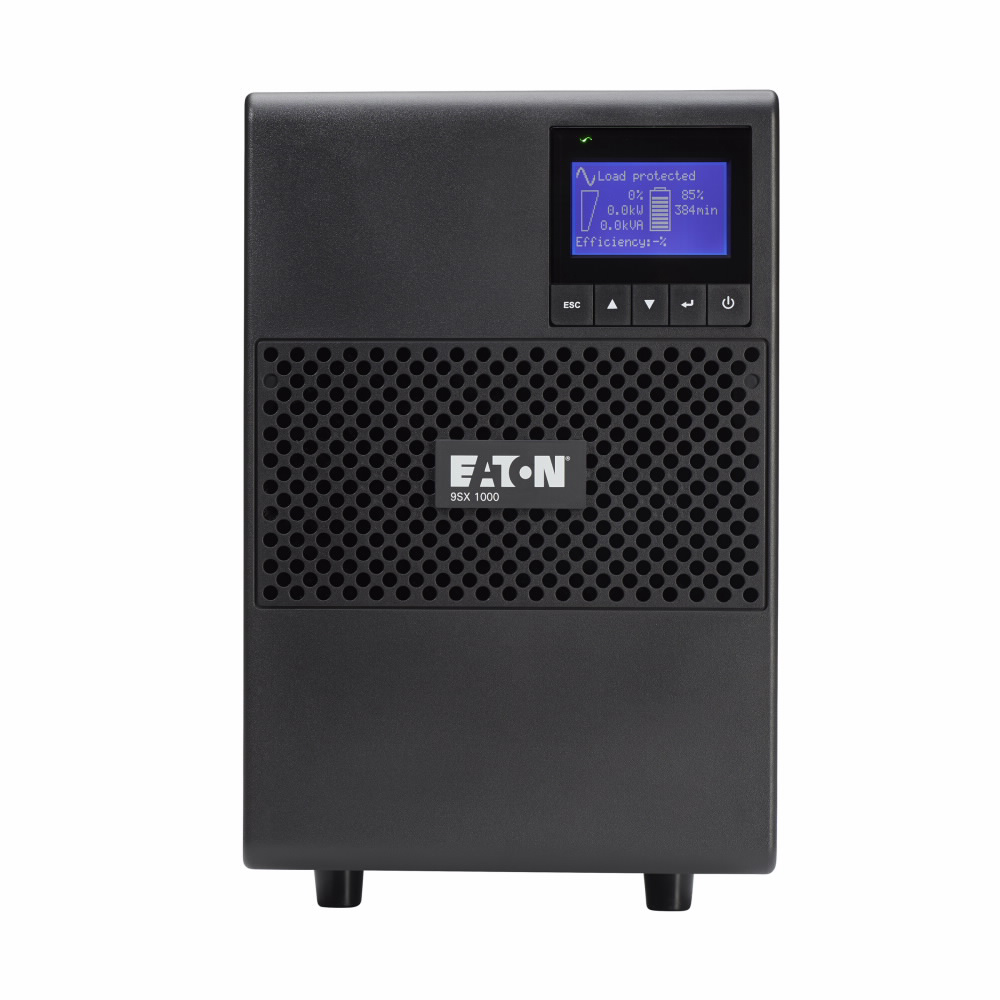

Eaton 9SX1000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Eaton 9SX online, extended runtime UPS, 1000 VA, 900 W, 5-15P input, Outputs: (6) 5-15R, 9.9"Hx6.3"Wx15.1"D, 30.9 lb., network card optional
Eaton 9SX1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Specifications
- Construction type
- Free standing model
- Form factor
- Tower
- Internal bypass
- Yes
- Package contents
- 9SX 1000 VA UPS|Quick start guide|RS-232 serial cable|USB cable
Battery
- Battery management
- ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
- Battery replacement
- Hot-swappable internal batteries and extended battery modules (EBMs)
- Extended battery capability
- Yes
Communications
- Communication
- (1) MiniSlot|(1) USB port|(1) Serial RS-232 port|(1) RPO/ROO/Signal input terminal|(1) mini-terminal block for output relay
- Expansion slots
- (1) Mini-Slot (MS) expansion port. Optional connectivity cards may be ordered separately.|- Gigabit Web/SNMP card part number: NETWORK-M2|- Modbus card part number: MODBUS-MS|- Relay card part number: RELAY-MS
- Potential free switch contact
- Yes
- User interface
- 5-button graphical user interface
Electrical Input
- Input connection
- 5-15P
- Input cord length
- 8 ft
- Input frequency range
- 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz
- Input power factor
- >.99
Electrical Output
- Feed type
- 1
- Output frequency
- 50/60 Hz
- Output nominal voltage
- 120V default (100/110/120/125V)
- Output power factor
- 0.9
- Output waveform
- True sine wave
- Receptacle
- (6) 5-15R
- Topology
- Online/Double-conversion
- VA rating
- 1000 VA
- Voltage
- 120V
- Wattage
- 900 W
Environmental
- Temperature range
- 0° to 40°C (32° to 104°F)
General
- Certifications
- cULus Listed
- Compliances
- FCC Compliant
- Product Height
- 9.9 in
- Product Length/Depth
- 15.1 in
- Product Weight
- 30.9 lb
- Product Width
- 6.3 in
- UPC
- 743172091239
Warranty And Support
- Extended service plans
- ADVANCED DEPOT EXCHANGE|-5-year depot repair: 9SW5Y-1000UC|-Expedited parts coverage for 5 years|-Parts, electronics and UPS batteries coverage|-Next business day shipping|-Technical support||5-YEAR ON-SITE PLAN: WFLN75XX-2509UC |- On-site parts and labor coverage for years 5|- Parts, electronics and UPS batteries coverage|- 24x7 on-site labor coverage, next-day response|- Next-day shipping|- Technical support
- Standard factory warranty
- 2-YEAR FACTORY WARRANTY|- 2 years|- Parts, electronics and batteries coverage|- Standard ground shipping|- Technical support
