Eaton 9PX6KP2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

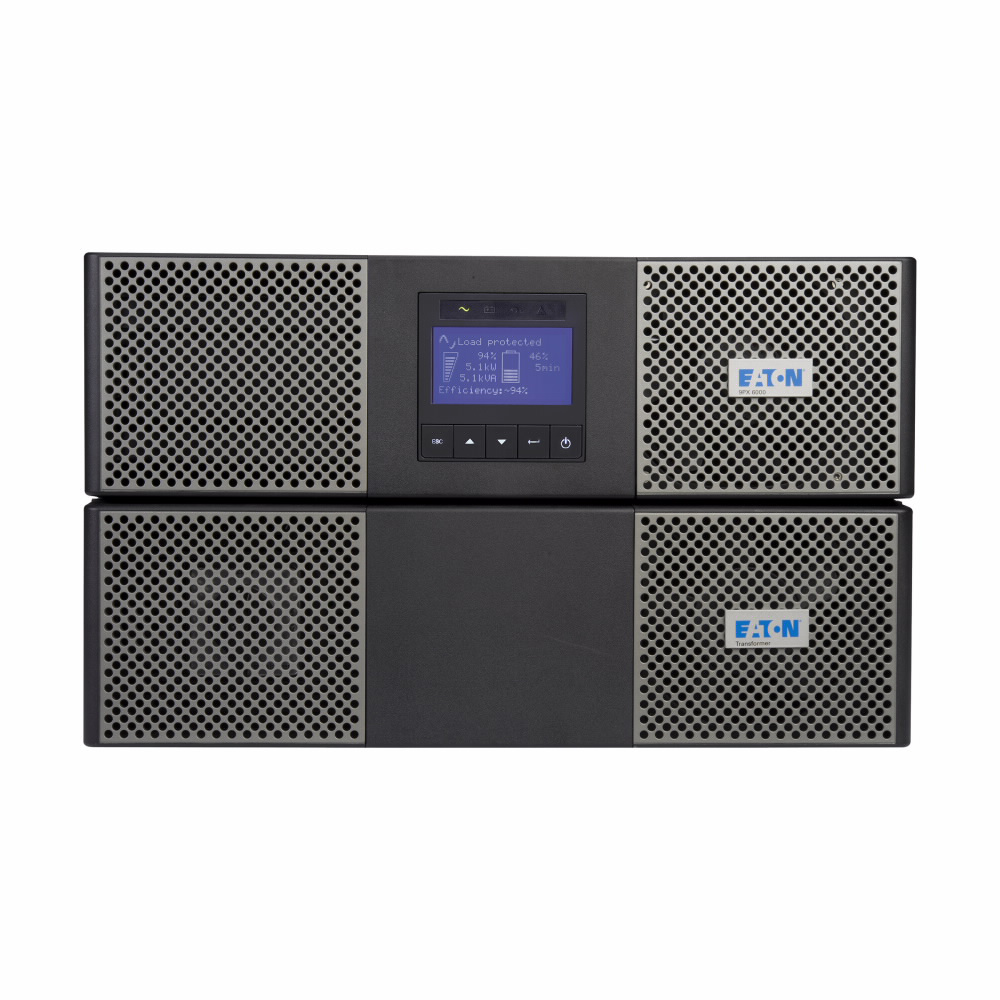

Eaton 9PX UPS, 6U, 6000 VA, 5400 W, Hardwired input, Outputs: Hardwired, 120/240V
Eaton 9PX6KP2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Specifications
- Color
- Black/silver
- Efficiency
- 93%
- Form factor
- Rack/tower
- Internal bypass
- Yes
- Package contents
- 9PX6K 6 kVA 3U UPS|9PXPPDM2 HW PowerPass Distribution Module|Gigabit Network Card (Network-M2)|4-post rail kit|User manual|Quick start guide|Tower pedestals|Intelligent Power Software Suite CD|RS-232 serial cable|USB cable|Cable gland for hardwire connection|Phillips head screw driver
- Rack mounting kit
- Yes
- Rack size
- 6U
Battery
- Battery management
- ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
- Battery replacement
- Hot-swappable internal batteries and extended battery modules (EBMs)
- Battery type
- Sealed, lead-acid
- Extended battery capability
- Add up to 4 extended battery modules (EBM). Part number 9PXEBM180RT
Communications
- Communication
- Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot
- Ethernet interface
- Yes
- Expansion slots
- (1) Mini-Slot (MS) expansion port with Gigabit Network Card (NETWORK-M2) included
- Includes network card
- Yes
- Software compatibility
- Intelligent Power Software Suite
- User interface
- Graphical display, 5-button programmable menu
Electrical Input
- Input connection
- Hardwired
- Input frequency range
- 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz
- Input nominal voltage
- 208V default (200/208/220/230/240V)
- Input power factor
- >0.99 typical
Electrical Output
- Output nominal voltage
- 120/240V default (200/208/220/230/240V)
- Output power factor
- 0.9
- Output waveform
- True sine wave
- Receptacle
- Hardwired
- Topology
- Online/Double-conversion
- VA rating
- 6000 VA
- Voltage
- 120/240V
- Wattage
- 5400 W
Environmental
- Altitude
- <1000m for nominal power, 10% power degrading every 1000m (up to 3000m)
- BTU Rating
- Online: 1284, Battery: 1954
- Noise level
- <45 dB at 1 meter
- Relative humidity
- 0-95% non-condensing
- Temperature range
- 0° to 40°C (32° to 104°F)
General
- Catalog Notes
- Add up to 4 extended battery modules (EBM)
- Certifications
- cULus Listed
- Compliances
- CE Marked
- Product Height
- 10.2 in
- Product Length/Depth
- 28.4 in
- Product Weight
- 201 lb
- Product Width
- 17.3 in
- UPC
- 743172039828
- Warranty
- 2 year limited factory
