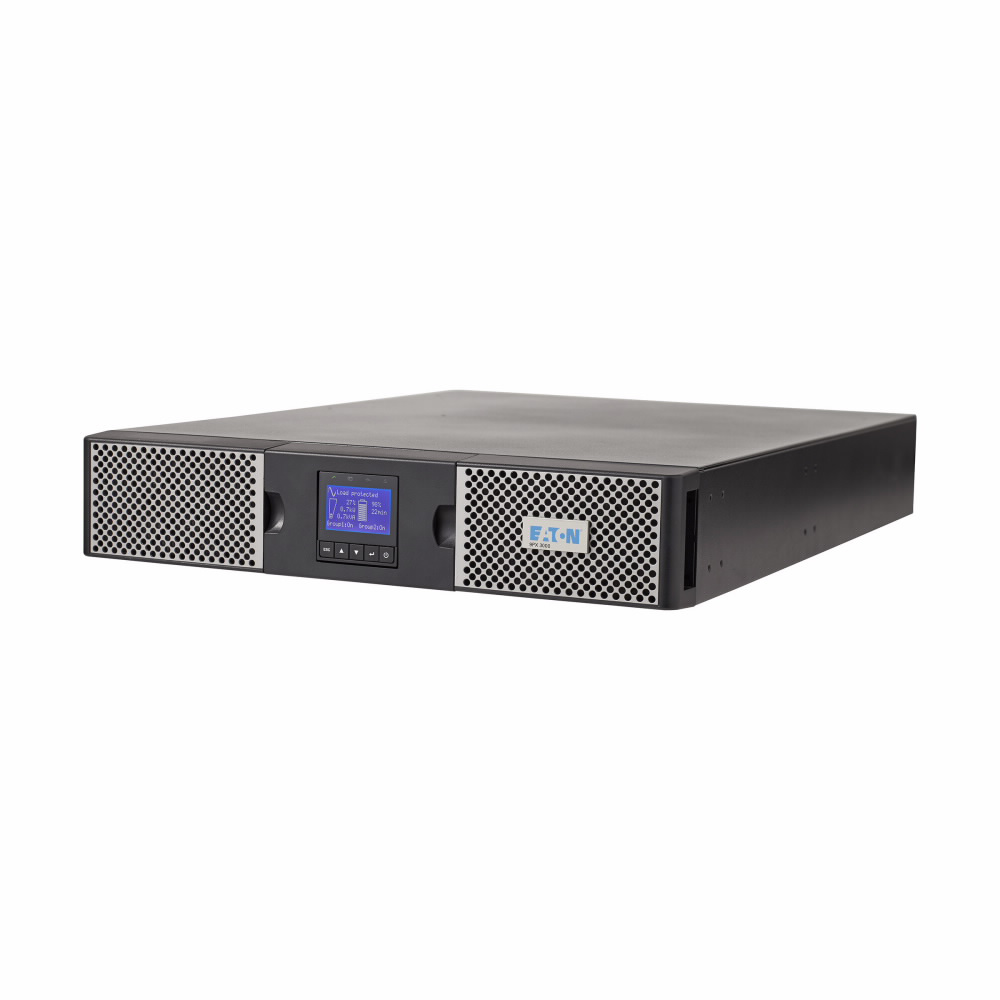

Eaton 9PX1500RT
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Eaton 9PX UPS, 2U, 1500 VA, 1350 W, 5-15P input, Outputs: (8) 5-15R, 120V
Eaton 9PX1500RT is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Specifications
- Color
- Black/silver
- Efficiency
- 90%
- Form factor
- Rack/tower
- Internal bypass
- Yes
- Package contents
- 9PX1500RT UPS|4-post rail kit|Safety manual|User manual|Tower pedestals|RS-232 serial cable|USB cable|Intelligent Power Software Suite CD
- Rack mounting kit
- Yes
- Rack size
- 2U
Battery
- Battery management
- ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
- Battery replacement
- Hot-swappable internal batteries and extended battery modules (EBMs)
- Battery type
- Sealed, lead-acid
- Extended battery capability
- Add up to 4 extended battery modules (EBM). Part number 9PXEBM48RT
Communications
- Communication
- MiniSlot + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relayCommunication slot
- Expansion slots
- (1) Mini-Slot (MS) expansion port. The following optional connectivity cards may be ordered separately.|Gigabit Network Card part number: NETWORK-M2|Modbus card part number: MODBUS-MS|Relay card part number: RELAY-MS
- Software compatibility
- Intelligent Power Software Suite
- User interface
- Graphical display, 5-button programmable menu
Electrical Input
- Input cord length
- 8 ft
- Input frequency range
- 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz
- Input nominal voltage
- 120V default (100/110/120/125V)
- Input power factor
- >0.99 typical
Electrical Output
- Output nominal voltage
- 120V default (100/110/120/125V)
- Output power factor
- 0.9
- Output waveform
- True sine wave
- Receptacle
- (8) 5-15R
- Topology
- Online/Double-conversion
- VA rating
- 1500 VA
- Voltage
- 120V
- Wattage
- 1350 W
Environmental
- Altitude
- 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
- BTU Rating
- Online: 512, Battery: 897
- Noise level
- <40 dB at 1 meter
- Relative humidity
- 0-96% non-condensing
- Temperature range
- 0° to 40°C (32° to 104°F)
General
- Certifications
- cULus Listed
- Compliances
- IEC 62040-2 Cat C1
- Product Height
- 3.4 in
- Product Length/Depth
- 17.7 in
- Product Weight
- 42.5 lb
- Product Width
- 17.3 in
- UPC
- 743172081261
- Warranty
- 2 year limited factory
