Eaton 5PX1500IRT
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

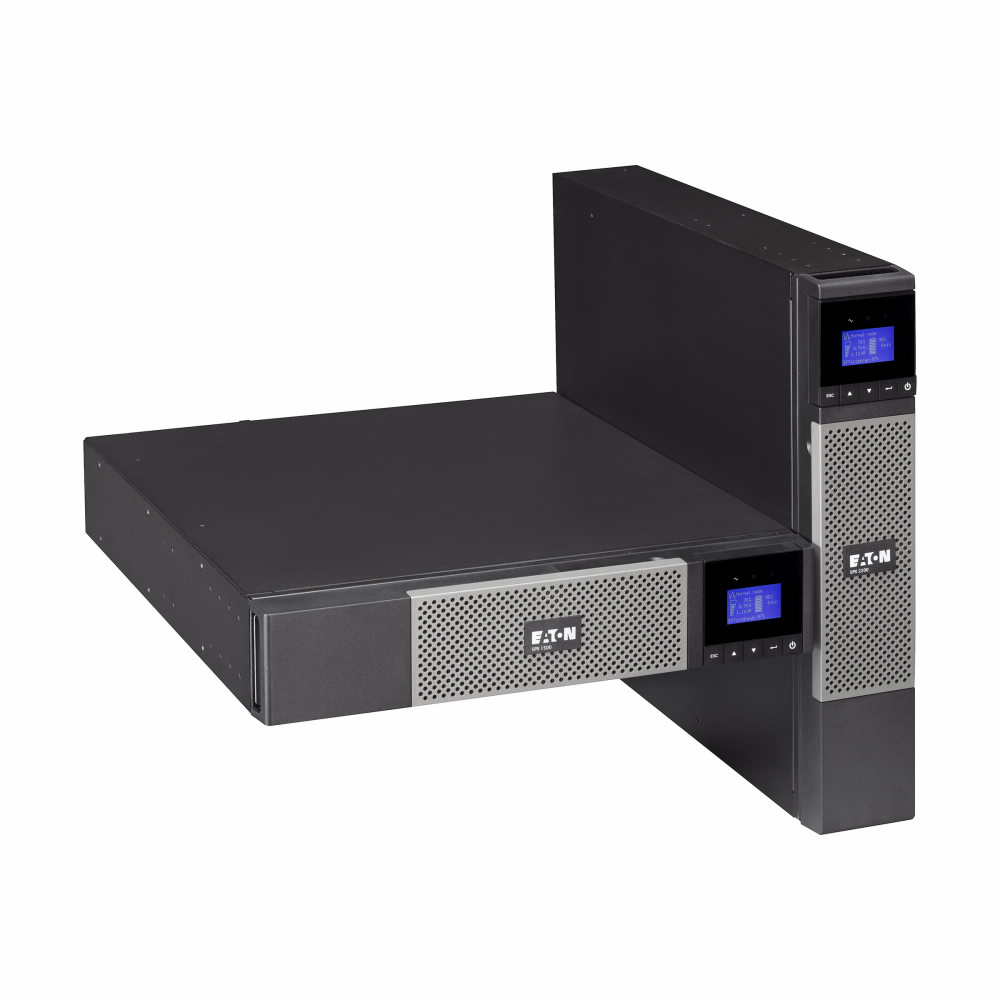

Eaton 5PX UPS, 1500 VA, 1350 W, Input: C14, Outputs: (8) C13, Rack/tower, 2U
Eaton 5PX1500IRT is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Specifications
- Auto shutdown function
- Yes
- Color
- Black/silver
- Construction type
- 482.6 mm (19 inch) device
- Efficiency
- 97
- Enclosure
- Black/silver
- Package contents
- Rack-mounting kit|(2) Supports for tower mounting|Cable locking system|USB cable|Serial cable|(2) IEC-IEC cables|Quickstart guide|Safety instructions
- Phase (input)
- 1
- Phase (output)
- 1
- Rack mounting kit
- Yes
Battery
- Battery management
- ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
- Battery quantity
- 4
- Battery rating
- 12 V / 7 Ah
- Battery replacement
- User replaceable
- Extended battery capability
- Yes
Communications
- Communication
- USB port (HID compliant)|Serial port (RS232)|Mini-terminal block for remote On/Off and Remote Power Off|Dry contacts (2 outputs, optocoupler, RJ)
- Ethernet interface
- No
- Expansion slots
- One slot for optional communication card
- Includes network card
- No
- Potential free switch contact
- Yes
- Software compatibility
- Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
- Type of interface
- Other
- User interface
- Multilingual graphical LCD display
Electrical Input
- Input connection
- C14
- Input frequency range
- 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
- Input nominal voltage
- 230V default (200/208/220/230/240V)
- Input voltage range
- 160-294 V (adjustable to 150 V-294 V)
- Nominal frequency
- 50-60 Hz
Electrical Output
- Battery type
- Lead-acid maintenance-free (replaceable)
- Feed type
- 1
- Output nominal voltage
- 230V default (200/208/220/230/240V)
- Output power factor
- 0.9
- Output voltage range
- 230 V (+6%/-10%)
- Output waveform
- Sine wave
- Receptacle
- (8) C13
- Topology
- Line-interactive
- VA rating
- 1500 VA
- Voltage
- 230V
- Wattage
- 1350 W
Environmental
- Altitude
- 3000 m
- BTU Rating
- Online: 140
- Noise level
- <40 dB at 1 meter
- Relative humidity
- 0-90% non-condensing
- Temperature range
- 0-90% non-condensing
General
- Certifications
- IEC/EN 62040-1
- Compliances
- CE Marked
- Model Code
- Eaton 5PX 1500i RT2U
- Product Height
- 86.2 mm
- Product Length/Depth
- 441 mm
- Product Weight
- 27.6 kg
- Product Width
- 522 mm
- UPC
- 743172035875
- Warranty
- 3 year on electronics, 3 year on batteries with registration
