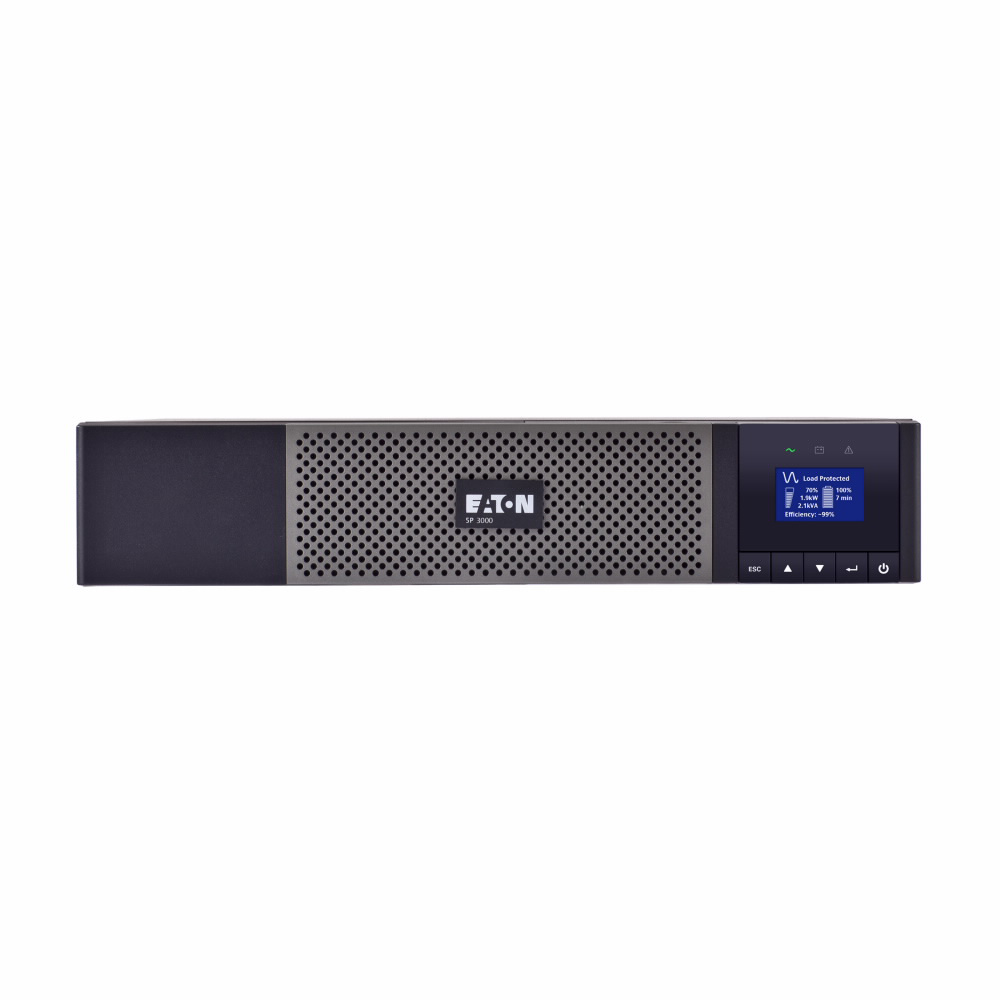

Eaton 5P3000RT
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Eaton 5P UPS, 3000 VA, 2700 W, L5-30P input, Outputs: (6) 5-20R; (1) L5-30R, 120V, Rack/tower, true sine wave, network card optional
Eaton 5P3000RT is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Specifications
- Color
- Black/silver
- Efficiency
- 97%
- Form factor
- Rack/tower
Battery
- Battery management
- ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
- Battery replacement
- User replaceable
- Battery type
- Sealed, lead-acid
- Extended battery capability
- None; See Eaton 5PX UPS for extended runtimes options
Communications
- Communication
- 1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
- Expansion slots
- One slot; Gigabit Network Card (Network-M2) is optional
- Software compatibility
- Eaton Intelligent Power Manager (included)
Electrical Input
- Input connection
- L5-30P
- Input cord length
- 10 ft
- Input frequency range
- 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
- Input nominal voltage
- 120V default (100/110/120/127V)
- Input power factor
- 0.9
- Input voltage range
- 89-151 Vac (adjustable to 70-153 Vac)
Electrical Output
- Output frequency
- 50/60 Hz
- Output nominal voltage
- 120V default (100/120/125V)
- Output voltage range
- 102-132 Vac
- Receptacle
- (6) 5-20R; (1) L5-30R
- Topology
- Line-interactive
- Voltage
- 120V
- Wattage
- 2700 W
Environmental
- Altitude
- Up to 10,000 ft (3000m) without de-rating
- BTU Rating
- Online: 305, Battery: 2047
- Noise level
- <50 dB at 1 meter
- Relative humidity
- 20-95% non-condensing
- Temperature range
- 0° to 40°C (32° to 104°F)
General
- Catalog Notes
- Allows UPS operation without utility input
- Certifications
- UL 497A
- Compliances
- FCC Part 15 Class A Subpart B Sections 15.107b , 15.109b
- Product Height
- 88.9 mm
- Product Length/Depth
- 640 mm
- Product Weight
- 36.8 kg
- Product Width
- 450 mm
- UPC
- 743172039668
- Warranty
- 3 year on electronics, 3 year on batteries with registration
Warranty And Support
- Extended service plans
- ADVANCED DEPOT EXCHANGE|-5-YEAR DEPOT REPAIR: 5SW5Y-3000UC|-Expedited parts coverage for 5 years|-Parts, electronics and UPS batteries coverage|-Next business day shipping|-Technical support|5-YEAR ON-SITE PLAN: WFLN75XX-6009UC |- On-site parts and labor coverage for years 5|- Parts, electronics and UPS batteries coverage|- 24x7 on-site labor coverage, next-day response|- Next-day shipping|- Technical support
- Standard factory warranty
- 3-YEAR FACTORY WARRANTY w/ REGISTRATION |-3 years|-Parts, electronics, and batteries coverage|-Standard ground shipping|-Technical support
