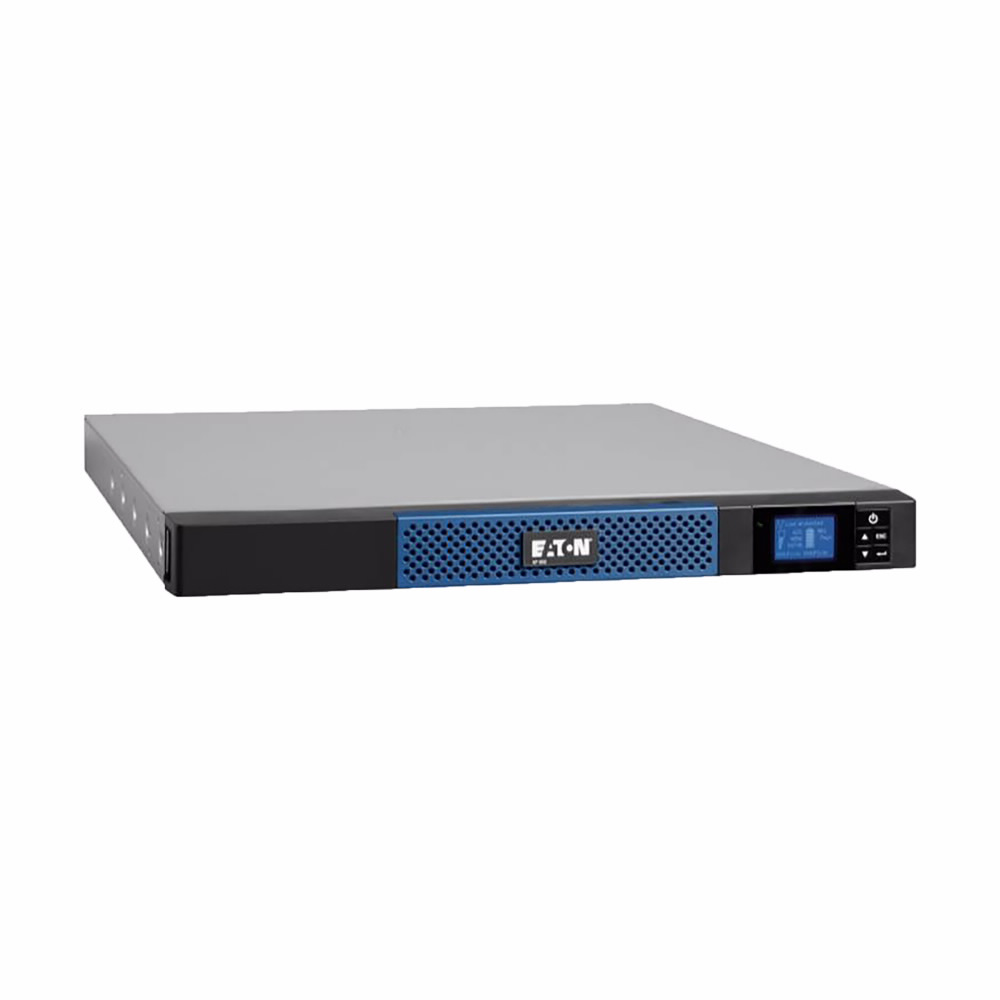

Eaton 5P1550GR-L
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Eaton 5P UPS, Global, 1U UPS, 1550 VA, 1100W, Input: (1) C14, Outputs: (6) C13, Rackmount/Wallmount, Lithium-ion battery, true sine wave, network card optional
Eaton 5P1550GR-L is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Specifications
- Auto shutdown function
- Yes
- Color
- Black/silver
- Construction type
- 482.6 mm (19 inch) device
- Efficiency
- Up to 98%
- Form factor
- Rack
- Package contents
- UPS|Quickstart guide|USB cable|RS-232 serial cable|4-post rail kit|(2) IEC-IEC cables|Cable locking system|
- Phase (input)
- 1
- Phase (output)
- 1
- Rack mounting kit
- Yes
- Rack size
- 1U
Battery
- Battery management
- Integrated battery management system (BMS) for temperature regulation and life cycle monitoring
- Battery replacement
- User replaceable
- Battery type
- Lithium-ion
Communications
- Communication
- RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
- Ethernet interface
- No
- Expansion slots
- One slot; Gigabit Network Card (Network-M2) is optional
- Potential free switch contact
- Yes
- Software compatibility
- Eaton Intelligent Power Manager (included)
- Type of interface
- Other
Electrical Input
- Input connection
- C14
- Input frequency range
- 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode
- Input power factor
- 1
- Input voltage range
- 160-294 V (adjustable to 150 V-294 V)
- Nominal frequency
- 50/60 Hz
Electrical Output
- Output frequency
- 50/60 Hz
- Output nominal voltage
- 230V default (200/208/220/230/240V)
- Receptacle
- (6) C13
- Topology
- Line-interactive
- Voltage
- 230V
- Wattage
- 1100 W
Environmental
- Altitude
- Up to 10,000 ft (3000m) without de-rating
- BTU Rating
- Online: 113, Battery 714
- Noise level
- <45 dB at 1 meter
- Relative humidity
- 0-90% non-condensing
- Temperature range
- 0° to 40°C (32° to 104°F)
General
- Certifications
- UL 1778
- Compliances
- FCC Part 15 Class A Subpart B Sections 15.107b , 15.109b
- Model Code
- Eaton 5P1550 Lithium-ion Rack 1U
- Product Height
- 1.7 in
- Product Length/Depth
- 21.8 in
- Product Weight
- 36 lb
- Product Width
- 17.2 in
- UPC
- 743172090409
- Warranty
- 5 year
