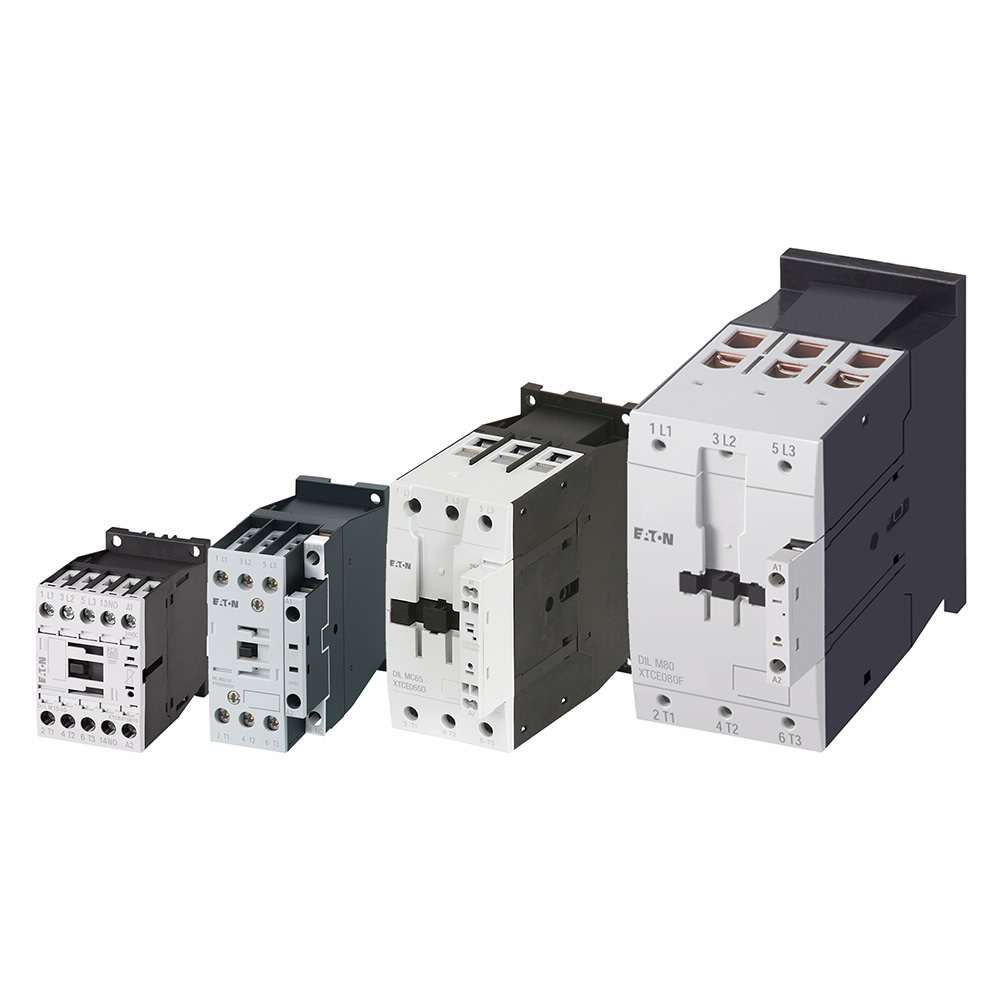

Eaton 293988

General

• Catalog Notes
  • Due to their special contacts, the contactors for capacitors are weld-resistant for capacitors with inrush current peaks up to 180 × Iₑ|In the case of group compensation multi-stage capacitor banks are connected to the mains, as required. Transient currents of up to 180 × Ie could flow between the capacitors.
• Certifications
  • CSA File No.: 012528
• EAN
  • 4015082939885
• Model Code
  • DILK12-11(230V50HZ,240V60HZ)
• Product Height
  • 135 mm
• Product Length/Depth
  • 138 mm
• Product Weight
  • .51 kg
• Product Width
  • 45 mm
• Warranty
  • 1 year

Specifications

• 10.10 Temperature rise
  • The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
• 10.11 Short-circuit rating
  • Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.12 Electromagnetic compatibility
  • Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.13 Mechanical function
  • The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
• 10.2.2 Corrosion resistance
  • Meets the product standard's requirements.
• 10.2.3.1 Verification of thermal stability of enclosures
  • Meets the product standard's requirements.
• 10.2.3.2 Verification of resistance of insulating materials to normal heat
  • Meets the product standard's requirements.
• 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
  • Meets the product standard's requirements.
• 10.2.4 Resistance to ultra-violet (UV) radiation
  • Meets the product standard's requirements.
• 10.2.5 Lifting
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.6 Mechanical impact
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.7 Inscriptions
  • Meets the product standard's requirements.
• 10.3 Degree of protection of assemblies
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.4 Clearances and creepage distances
  • Meets the product standard's requirements.
• 10.5 Protection against electric shock
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.6 Incorporation of switching devices and components
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.7 Internal electrical circuits and connections
  • Is the panel builder's responsibility.
• 10.8 Connections for external conductors
  • Is the panel builder's responsibility.
• 10.9.2 Power-frequency electric strength
  • Is the panel builder's responsibility.
• 10.9.3 Impulse withstand voltage
  • Is the panel builder's responsibility.
• 10.9.4 Testing of enclosures made of insulating material
  • Is the panel builder's responsibility.
• Ambient operating temperature (enclosed) - max
  • 40 °C
• Ambient operating temperature (enclosed) - min
  • 25 °C
• Ambient operating temperature - max
  • 60 °C
• Ambient operating temperature - min
  • -25 °C
• Application
  • Contactors for power factor correction
• Arcing time
  • 10 ms
• Degree of protection
  • IP00
• Drop-out voltage
  • AC operated: 0.6 - 0.3 x UC, AC operated
• Duty factor
  • 100 %
• Electrical connection type of main circuit
  • Screw connection
• Emitted interference
  • According to EN 60947-1
• Equipment heat dissipation, current-dependent Pvid
  • 2.1 W
• Fitted with:
  • Series resistors
• Heat dissipation capacity Pdiss
  • 0 W
• Heat dissipation per pole, current-dependent Pvid
  • .7 W
• Interference immunity
  • According to EN 60947-1
• Lifespan, electrical
  • 150,000 Operations
• Making capacity without damping (I-peak value)
  • 180 x Ie
• Number of auxiliary contacts (normally closed contacts)
  • 1
• Number of auxiliary contacts (normally open contacts)
  • 1
• Number of contacts (normally closed) as main contact
  • 0
• Number of main contacts (normally open contact)
  • 3
• Operating frequency
  • 120 Operations/h
• Pick-up voltage
  • 0.8 - 1.1 V AC x Uc
• Power consumption, pick-up, 50 Hz
  • 58 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz
• Power consumption, pick-up, 60 Hz
  • 71 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz
• Power consumption, sealing, 50 Hz
  • 2.1 W, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz
• Power consumption, sealing, 60 Hz
  • 9.3 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz
• Product category
  • DILK Contactors for capacitors
• Protection
  • Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
• Rated blind power
  • 12.5 kvar
• Rated control supply voltage (Us) at AC, 50 Hz - max
  • 230 V
• Rated control supply voltage (Us) at AC, 50 Hz - min
  • 230 V
• Rated control supply voltage (Us) at AC, 60 Hz - max
  • 240 V
• Rated control supply voltage (Us) at AC, 60 Hz - min
  • 240 V
• Rated control supply voltage (Us) at DC - max
  • 0 V
• Rated control supply voltage (Us) at DC - min
  • 0 V
• Rated operational current for specified heat dissipation (In)
  • 18 A
• Rated operational current (Ie)
  • 18 A at 400 V (three-phase capacitors, open)
• Rated operational power at AC-6B, 220/230 V, 50 Hz
  • 7.5 kW
• Rated operational power at AC-6B, 380/400 V, 50 Hz
  • 12.5 kW
• Rated operational power at AC-6B, 525 V, 50 Hz
  • 16.7 kW
• Rated operational power at AC-6B, 690 V, 50 Hz
  • 20 kW
• Special purpose rating of capacitor switching
  • 18 A, 240 V 60 Hz 3phase, (UL/CSA)
• Static heat dissipation, non-current-dependent Pvs
  • 2.1 W
• Switching capacity (auxiliary contacts, general use)
  • 10 A, 600 V AC, (UL/CSA)
• Switching capacity (auxiliary contacts, pilot duty)
  • A600, AC operated (UL/CSA)
• Switching time (AC operated, make contacts, closing delay) - max
  • 22 ms
• Switching time (AC operated, make contacts, closing delay) - min
  • 16 ms
• Switching time (AC operated, make contacts, opening delay) - max
  • 14 ms
• Switching time (AC operated, make contacts, opening delay) - min
  • 8 ms
• Terminal capacity (flexible with ferrule)
  • 1 x (0.75 - 16) mm², Main cables
• Terminal capacity (solid)
  • 1 x (0.75 - 16) mm², Main cables
• Terminal capacity (solid/stranded AWG)
  • 18 - 6, Main cables
• Terminal capacity (stranded)
  • 1 x 16 mm², Main cables
• Voltage type
  • AC
