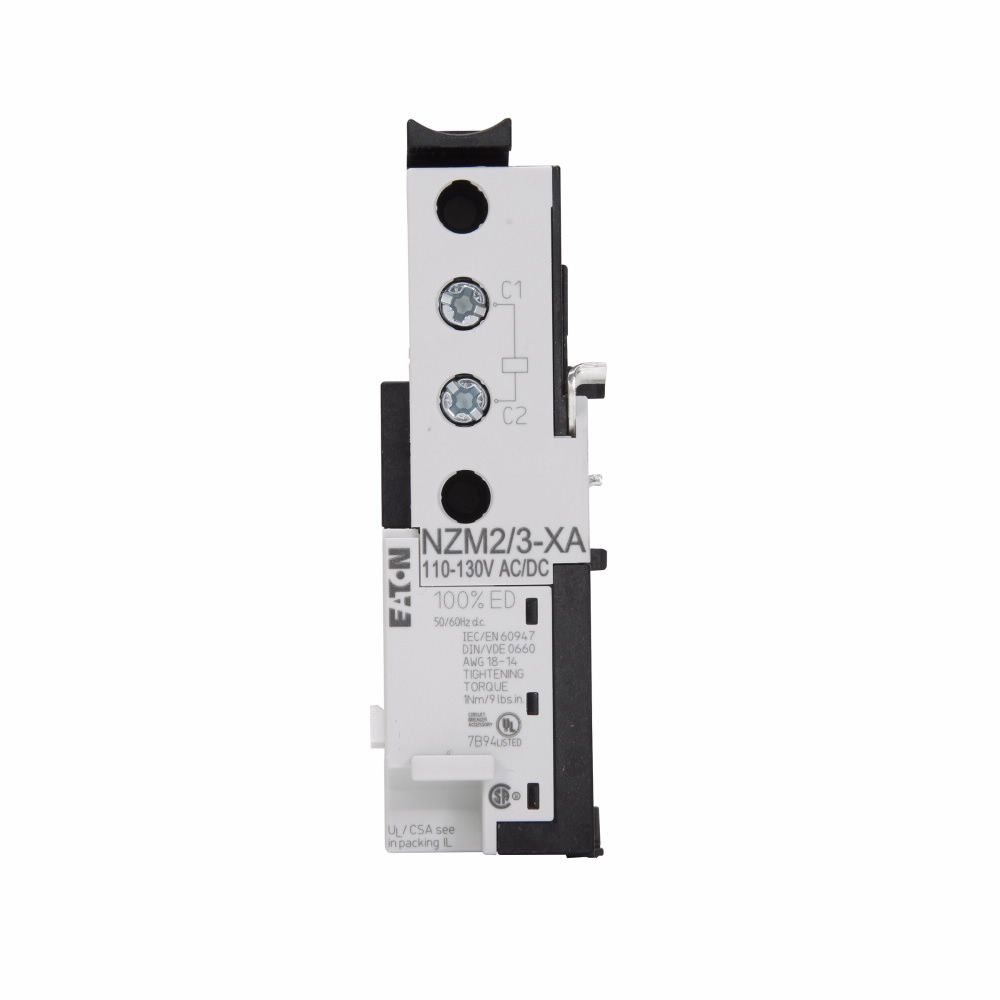

Eaton 259760

General

• Certifications
  • UL489
• Compliances
  • UL/CSA
• EAN
  • 4015082597603
• Model Code
  • NZM2/3-XA110-130AC/DC
• Product Height
  • 90 mm
• Product Length/Depth
  • 42 mm
• Product Weight
  • .095 kg
• Product Width
  • 30 mm
• Warranty
  • Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.

Specifications

• 10.10 Temperature rise
  • The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
• 10.11 Short-circuit rating
  • Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.12 Electromagnetic compatibility
  • Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.13 Mechanical function
  • The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
• 10.2.2 Corrosion resistance
  • Meets the product standard's requirements.
• 10.2.3.1 Verification of thermal stability of enclosures
  • Meets the product standard's requirements.
• 10.2.3.2 Verification of resistance of insulating materials to normal heat
  • Meets the product standard's requirements.
• 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
  • Meets the product standard's requirements.
• 10.2.4 Resistance to ultra-violet (UV) radiation
  • Meets the product standard's requirements.
• 10.2.5 Lifting
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.6 Mechanical impact
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.7 Inscriptions
  • Meets the product standard's requirements.
• 10.3 Degree of protection of assemblies
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.4 Clearances and creepage distances
  • Meets the product standard's requirements.
• 10.5 Protection against electric shock
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.6 Incorporation of switching devices and components
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.7 Internal electrical circuits and connections
  • Is the panel builder's responsibility.
• 10.8 Connections for external conductors
  • Is the panel builder's responsibility.
• 10.9.2 Power-frequency electric strength
  • Is the panel builder's responsibility.
• 10.9.3 Impulse withstand voltage
  • Is the panel builder's responsibility.
• 10.9.4 Testing of enclosures made of insulating material
  • Is the panel builder's responsibility.
• Connection type
  • With bolt connection
• Electric connection type
  • Screw connection
• Frame
  • NZM2/3
• Frequency rating
  • 50 Hz / 60 Hz / 200 Hz / 400 Hz, DC (shunt release)
• Minimum command time - max
  • 15 ms
• Minimum command time - min
  • 10 ms
• Number of contacts (normally open contacts)
  • 0
• Pick-up power consumption (shunt release)
  • 2.5 VA/W
• Rated control supply voltage
  • 110 - 130 V AC/DC
• Rated control supply voltage (Us) at AC, 50 Hz - max
  • 130 V
• Rated control supply voltage (Us) at AC, 50 Hz - min
  • 110 V
• Rated control supply voltage (Us) at AC, 60 Hz - max
  • 130 V
• Rated control supply voltage (Us) at AC, 60 Hz - min
  • 110 V
• Rated control supply voltage (Us) at DC - max
  • 130 V
• Rated control supply voltage (Us) at DC - min
  • 110 V
• Rated control voltage (relay contacts)
  • 110 V AC
• Reaction time
  • 20 ms
• Special features
  • Switches are tripped by a voltage pulse or by the application of uninterrupted voltage.|If the shunt trip is live, contact with the circuit breaker’s primary contacts is prevented when switched on.|Shunt releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XU... undervoltage release.
• Suitable for
  • Off-load switch
• Terminal capacity (solid/flexible conductor)
  • 0.75 mm² - 2.5 mm² (1x) for undervoltage releases, off-delayed with ferrule
• Type
  • Accessory|Shunt release
• Used with
  • NZM2(-4), N(S)2(-4)
• Voltage rating
  • 0.7 - 1.1 x Us
• Voltage rating at AC (x Us) - max
  • 1.1
• Voltage rating at AC (x Us) - min
  • .7
• Voltage type
  • AC/DC
