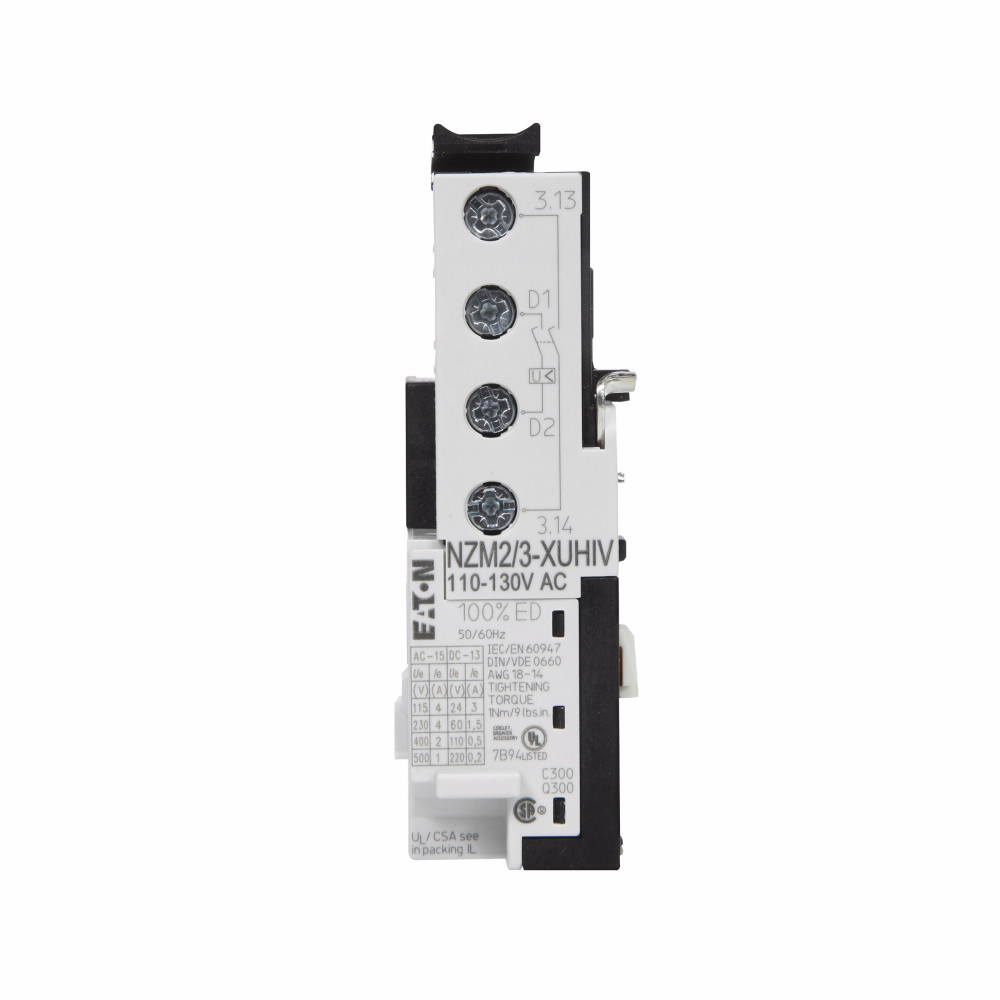

Eaton 259598

General

• Certifications
  • CE marking
• Compliances
  • IEC
• EAN
  • 4015082595982
• Model Code
  • NZM2/3-XUHIV480-525AC
• Product Height
  • 90 mm
• Product Length/Depth
  • 42 mm
• Product Weight
  • .074 kg
• Product Width
  • 30 mm
• Warranty
  • Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.

Specifications

• 10.10 Temperature rise
  • The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
• 10.11 Short-circuit rating
  • Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.12 Electromagnetic compatibility
  • Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.13 Mechanical function
  • The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
• 10.2.2 Corrosion resistance
  • Meets the product standard's requirements.
• 10.2.3.1 Verification of thermal stability of enclosures
  • Meets the product standard's requirements.
• 10.2.3.2 Verification of resistance of insulating materials to normal heat
  • Meets the product standard's requirements.
• 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
  • Meets the product standard's requirements.
• 10.2.4 Resistance to ultra-violet (UV) radiation
  • Meets the product standard's requirements.
• 10.2.5 Lifting
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.6 Mechanical impact
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.7 Inscriptions
  • Meets the product standard's requirements.
• 10.3 Degree of protection of assemblies
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.4 Clearances and creepage distances
  • Meets the product standard's requirements.
• 10.5 Protection against electric shock
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.6 Incorporation of switching devices and components
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.7 Internal electrical circuits and connections
  • Is the panel builder's responsibility.
• 10.8 Connections for external conductors
  • Is the panel builder's responsibility.
• 10.9.2 Power-frequency electric strength
  • Is the panel builder's responsibility.
• 10.9.3 Impulse withstand voltage
  • Is the panel builder's responsibility.
• 10.9.4 Testing of enclosures made of insulating material
  • Is the panel builder's responsibility.
• Connection
  • Screw
• Connection type
  • With bolt connection
• Drop-out voltage of undervoltage release AC/DC - max
  • 0.7 x Us
• Drop-out voltage of undervoltage release AC/DC - min
  • 0.35 x Us
• Electric connection type
  • Screw connection
• Fitted with:
  • Two early-make auxiliary contacts
• Frame
  • NZM2/3
• Minimum command time - max
  • 15 ms
• Minimum command time - min
  • 10 ms
• Number of contacts (normally open contacts)
  • 2
• Pick-up power consumption at AC (undervoltage release)
  • 1.5 VA
• Pick-up power consumption at DC (undervoltage release)
  • .8 W
• Power consumption
  • 0.8 W (sealing DC)
• Rated control supply voltage
  • 480 - 525 V 50/60 Hz
• Rated control supply voltage (Us) at AC, 50 Hz - max
  • 525 V
• Rated control supply voltage (Us) at AC, 50 Hz - min
  • 480 V
• Rated control supply voltage (Us) at AC, 60 Hz - max
  • 525 V
• Rated control supply voltage (Us) at AC, 60 Hz - min
  • 480 V
• Rated control supply voltage (Us) at DC - max
  • 0 V
• Rated control supply voltage (Us) at DC - min
  • 0 V
• Rated control voltage (relay contacts)
  • 525 V AC
• Reaction time
  • 19 ms
• Special features
  • Undervoltage release with 2 early-make auxiliary contacts, e.g., for early-make connection of undervoltage release in main switch applications, as well as for interlock and load shedding circuits.|For use with emergency-stop devices in connection with an emergency-stop button.|When the under-voltage trip is switched off, accidental contact with the circuit breaker’s primary contacts is prevented when switched on.|Early make of auxiliary contacts on switching on and off (manual operation): approx. 20 ms|Undervoltage releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XA... shunt release.|Cannot be used in conjunction with NZM...-XR... remote operator.
• Suitable for
  • Off-load switch
• Terminal capacity (solid/flexible conductor)
  • 18 - 14 AWG (1x) for undervoltage releases, off-delayed
• Type
  • Accessory|Undervoltage release|Undervoltage release with early-make auxiliary contact
• Used with
  • NZM3(-4), N(S)3(-4)
• Voltage tolerance - max
  • 1.1
• Voltage tolerance - min
  • .85
• Voltage type
  • AC
