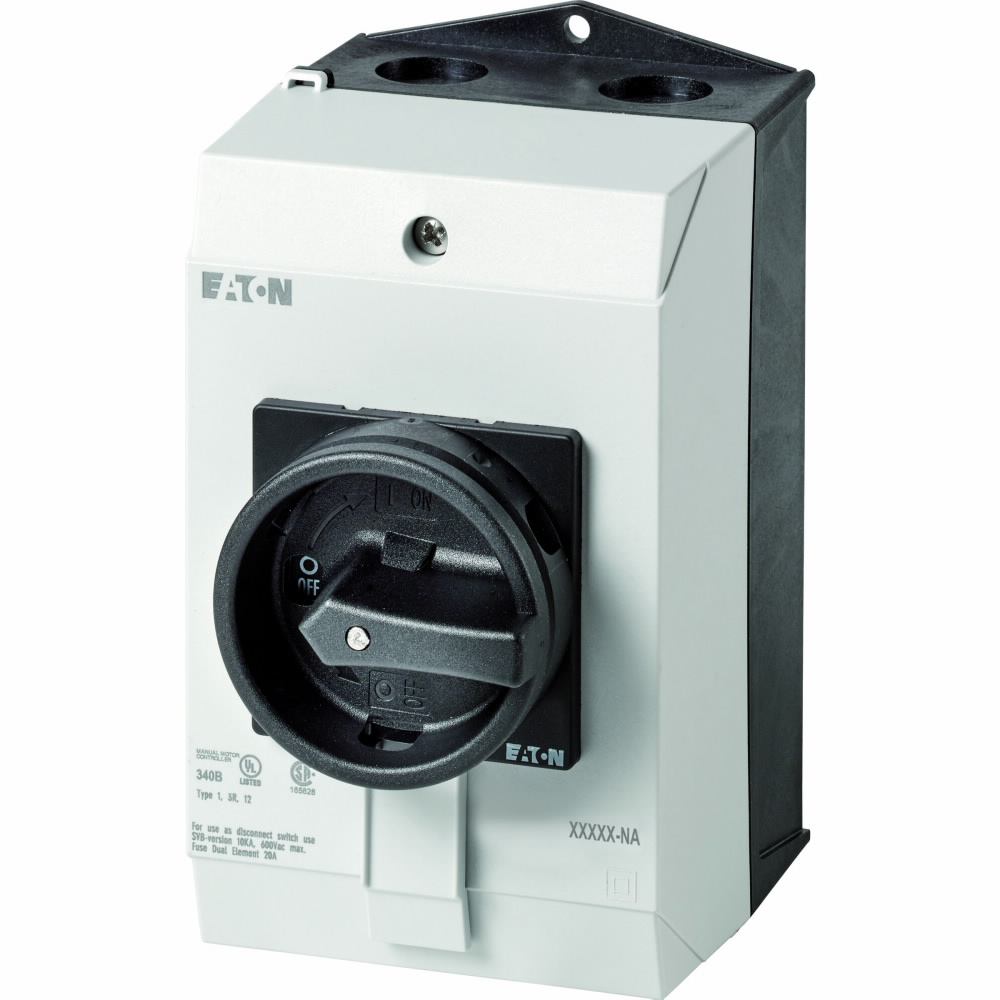

Eaton 255889

General

• Catalog Notes
  • Rated Short-time Withstand Current (Icw) for a time of 1 second|UL/CSA
• Certifications
  • UL Listed
• EAN
  • 4015082558895
• Model Code
  • P1-25/I2/SVB-SW/HI11-NA
• Product Height
  • 180 mm
• Product Length/Depth
  • 115 mm
• Product Weight
  • .495 kg
• Product Width
  • 100 mm
• Warranty
  • Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.

Specifications

• 10.10 Temperature rise
  • The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
• 10.11 Short-circuit rating
  • Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.12 Electromagnetic compatibility
  • Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.13 Mechanical function
  • The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
• 10.2.2 Corrosion resistance
  • Meets the product standard's requirements.
• 10.2.3.1 Verification of thermal stability of enclosures
  • Meets the product standard's requirements.
• 10.2.3.2 Verification of resistance of insulating materials to normal heat
  • Meets the product standard's requirements.
• 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
  • Meets the product standard's requirements.
• 10.2.4 Resistance to ultra-violet (UV) radiation
  • UV resistance only in connection with protective shield.
• 10.2.5 Lifting
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.6 Mechanical impact
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.7 Inscriptions
  • Meets the product standard's requirements.
• 10.3 Degree of protection of assemblies
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.4 Clearances and creepage distances
  • Meets the product standard's requirements.
• 10.5 Protection against electric shock
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.6 Incorporation of switching devices and components
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.7 Internal electrical circuits and connections
  • Is the panel builder's responsibility.
• 10.8 Connections for external conductors
  • Is the panel builder's responsibility.
• 10.9.2 Power-frequency electric strength
  • Is the panel builder's responsibility.
• 10.9.3 Impulse withstand voltage
  • Is the panel builder's responsibility.
• 10.9.4 Testing of enclosures made of insulating material
  • Is the panel builder's responsibility.
• Accessories
  • Auxiliary contact or neutral conductor fitted by user.
• Actuator color
  • Black
• Actuator type
  • Door coupling rotary drive
• Ambient operating temperature (enclosed) - max
  • 40 °C
• Ambient operating temperature (enclosed) - min
  • -25 °C
• Ambient operating temperature - max
  • 40 °C
• Ambient operating temperature - min
  • -25 °C
• Assigned motor power at 115/120 V, 60 Hz, 1-phase
  • 1 HP
• Assigned motor power at 200/208 V, 60 Hz, 1-phase
  • 2 HP
• Assigned motor power at 200/208 V, 60 Hz, 3-phase
  • 3 HP
• Assigned motor power at 230/240 V, 60 Hz, 1-phase
  • 3 HP
• Assigned motor power at 230/240 V, 60 Hz, 3-phase
  • 5 HP
• Assigned motor power at 460/480 V, 60 Hz, 3-phase
  • 10 HP
• Assigned motor power at 575/600 V, 60 Hz, 3-phase
  • 15 HP
• Climatic proofing
  • Damp heat, cyclic, to IEC 60068-2-30
• Control circuit reliability
  • 1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)
• Degree of protection
  • NEMA 12
• Degree of protection (front side)
  • IP65
• Device construction
  • Complete device in housing
• Electrical connection type of main circuit
  • Screw connection
• Equipment heat dissipation, current-dependent Pvid
  • 0 W
• Features
  • Version as main switch
• Fitted with:
  • Black rotary handle and locking ring
• Functions
  • STOP function
• Heat dissipation capacity Pdiss
  • 0 W
• Heat dissipation per pole, current-dependent Pvid
  • 1.1 W
• Lifespan, mechanical
  • 300,000 Operations
• Load rating
  • 2 x Iₑ (with intermittent operation class 12, 25 % duty factor)
• Mounting method
  • Surface mounting
• Mounting position
  • As required
• Number of auxiliary contacts (change-over contacts)
  • 0
• Number of auxiliary contacts (normally closed contacts)
  • 1
• Number of auxiliary contacts (normally open contacts)
  • 1
• Number of contacts in series at DC-23A, 120 V
  • 3
• Number of contacts in series at DC-23A, 24 V
  • 1
• Number of contacts in series at DC-23A, 48 V
  • 2
• Number of contacts in series at DC-23A, 60 V
  • 2
• Number of poles
  • Three-pole
• Operating frequency
  • 1200 Operations/h
• Overvoltage category
  • III
• Pollution degree
  • 3
• Product Category
  • Main switch
• Rated breaking capacity at 220/230 V (cos phi to IEC 60947-3)
  • 190 A
• Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)
  • 150 A
• Rated breaking capacity at 500 V (cos phi to IEC 60947-3)
  • 170 A
• Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)
  • 150 A
• Rated conditional short-circuit current (Iq)
  • 80 kA
• Rated impulse withstand voltage (Uimp)
  • 6000 V AC
• Rated making capacity up to 690 V (cos phi to IEC/EN 60947-3)
  • 240 A
• Rated operational current for specified heat dissipation (In)
  • 25 A
• Rated operational current (Ie) at AC-21, 440 V
  • 25 A
• Rated operational current (Ie) at AC-23A, 230 V
  • 25 A
• Rated operational current (Ie) at AC-23A, 400 V, 415 V
  • 25 A
• Rated operational current (Ie) at AC-23A, 500 V
  • 17.4 A
• Rated operational current (Ie) at AC-23A, 690 V
  • 12.6 A
• Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V
  • 19.6 A
• Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V
  • 15.2 A
• Rated operational current (Ie) at AC-3, 500 V
  • 12.1 A
• Rated operational current (Ie) at AC-3, 660 V, 690 V
  • 8.8 A
• Rated operational current (Ie) at DC-1, load-break switches l/r = 1 ms
  • 25 A
• Rated operational current (Ie) at DC-23A, 120 V
  • 12 A
• Rated operational current (Ie) at DC-23A, 24 V
  • 25 A
• Rated operational current (Ie) at DC-23A, 48 V
  • 25 A
• Rated operational current (Ie) at DC-23A, 60 V
  • 25 A
• Rated operational power at AC-23A, 220/230 V, 50 Hz
  • 5.5 kW
• Rated operational power at AC-23A, 400 V, 50 Hz
  • 13 kW
• Rated operational power at AC-23A, 500 V, 50 Hz
  • 11 kW
• Rated operational power at AC-23A, 690 V, 50 Hz
  • 11 kW
• Rated operational power at AC-3, 380/400 V, 50 Hz
  • 7.5 kW
• Rated operational power at AC-3, 415 V, 50 Hz
  • 7.5 kW
• Rated operational power at AC-3, 690 V, 50 Hz
  • 7.5 kW
• Rated operational voltage (Ue) at AC - max
  • 690 V
• Rated operational voltage (Ue) at AC - min
  • 690 V
• Rated permanent current at AC-21, 400 V
  • 25 A
• Rated short-time withstand current (Icw)
  • 0.64 kA
• Rated uninterrupted current (Iu)
  • 25 A
• Safe isolation
  • 440 V AC, Between the contacts, According to EN 61140
• Safety parameter (EN ISO 13849-1)
  • B10d values as per EN ISO 13849-1, table C.1
• Screw size
  • M4, Terminal screw
• Shock resistance
  • 15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms
• Short-circuit current rating (basic rating)
  • 5 kA, SCCR (UL/CSA)
• Short-circuit current rating (high fault)
  • 10 kA, SCCR (UL/CSA)
• Short-circuit protection rating
  • 25 A gG/gL, Fuse, Contacts
• Static heat dissipation, non-current-dependent Pvs
  • 0 W
• Suitable for
  • Ground mounting
• Switching capacity (auxiliary contacts, general use)
  • 10A, IU, (UL/CSA)
• Switching capacity (auxiliary contacts, pilot duty)
  • P600 (UL/CSA)
• Switching capacity (main contacts, general use)
  • 20 A, Rated uninterrupted current max. (UL/CSA)
• Switching power at 400 V
  • 13 kW
• Terminal capacity
  • 1 x (1.5 - 6) mm², solid or stranded
• Tightening torque
  • 1.6 Nm, Screw terminals
• Type
  • Main switch
• Uninterrupted current
  • Rated uninterrupted current Iu is specified for max. cross-section.
• Voltage per contact pair in series
  • 60 V
