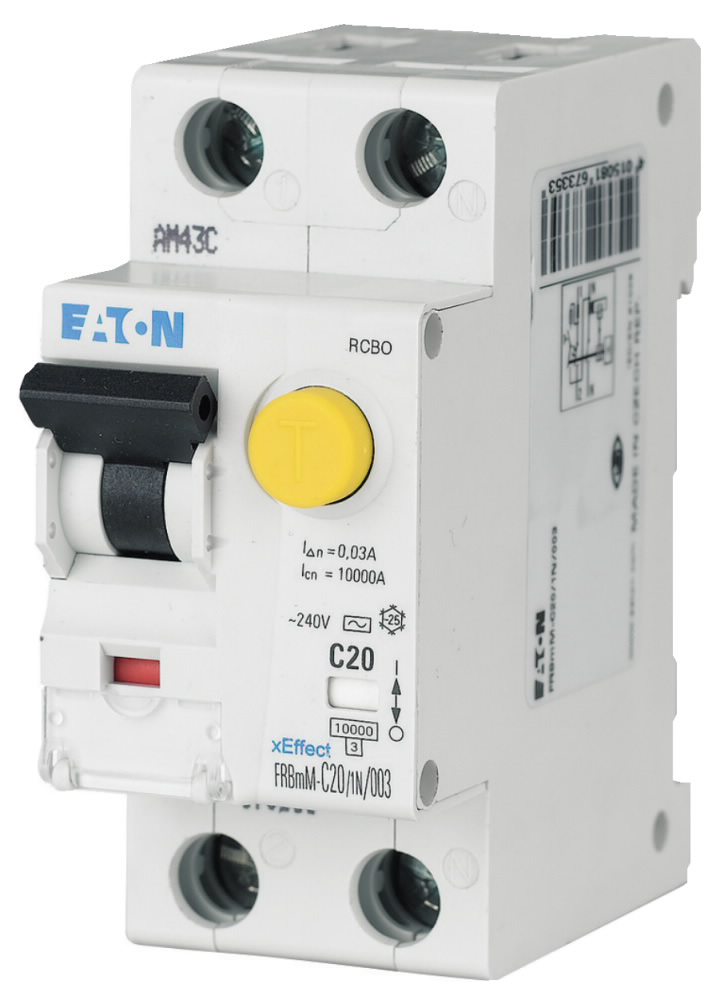

Eaton 170695

General

• Certifications
  • CE
• Compliances
  • CE Marked
• EAN
  • 4015081672684
• Product Height
  • 75 MM
• Product Length/Depth
  • 80 MM
• Product Weight
  • .195 KG
• Product Width
  • 35 MM

Specifications

• 10.10 Temperature Rise
  • The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
• 10.11 Short-circuit Rating
  • Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.12 Electromagnetic Compatibility
  • Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.13 Mechanical Function
  • The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
• 10.2.2 Corrosion Resistance
  • Meets the product standard's requirements.
• 10.2.3.1 Thermal Stability Of Enclosures
  • Meets the product standard's requirements.
• 10.2.3.2 Resist. Ins. Mat. Normal Heat
  • Meets the product standard's requirements.
• 10.2.3.3 Resist. Ins. Mat. Abnormal Heat
  • Meets the product standard's requirements.
• 10.2.4 Resistance To UV Radiation
  • Meets the product standard's requirements.
• 10.2.5 Lifting
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.6 Mechanical Impact
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.7 Inscriptions
  • Meets the product standard's requirements.
• 10.3 Degree Of Protection Of Assemblies
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.4 Clearances And Creepage Distances
  • Meets the product standard's requirements.
• 10.5 Protection Against Electric Shock
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.6 Incorp. Of Switching Dev. and Comp.
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.7 Int. Elect. Circuits and Connections
  • Is the panel builder's responsibility.
• 10.8 Connections For External Conductors
  • Is the panel builder's responsibility.
• 10.9.2 Power-frequency Electric Strength
  • Is the panel builder's responsibility.
• 10.9.3 Impulse Withstand Voltage
  • Is the panel builder's responsibility.
• 10.9.4 Testing Of Ins. Mat. Enclosures
  • Is the panel builder's responsibility.
• Antinuisance Tripping Version
  • False
• Application
  • Switchgear for industrial and advanced commercial applications
• Basic Function
  • Combined RCD/MCB devices
• Built-in Depth
  • 75.5 MM
• Concurrently Switching N-neutral
  • True
• Current Limiting Class
  • 3
• Degree Of Protection (IP)
  • IP20
• Equipment Heat Dissipation, Current-dep.
  • 2.3 W
• Frequency
  • 50 Hz
• Heat Dissipation Capacity
  • 0 W/K
• Heat Dissipation Current-dependent/pole
  • 0 W
• Impulse Withstand Current
  • Partly surge-proof, 250 A
• Leakage Current Type
  • AC
• Number Of Poles
  • Single-pole + N
• Number Of Poles (Total)
  • 2
• Number Of Protected Poles
  • 1
• Operating Ambient Temperature Hint
  • Keep in mind the derating at temperatures higher than 40 °C
• Over Voltage Category
  • 3
• Pollution Degree
  • 2
• Product Range
  • FRBmM
• Rated Current
  • 10 A
• Rated Fault Current
  • 0.03 Ampere
• Rated Fault Current (Numeric)
  • .03 A
• Rated Fault Currents Of Product Range
  • 10, 30, 100, 300 MilliAmpere
• Rated Operatl Current For Spec Heat Diss
  • 10 A
• Rated Short-circ Breakg Cap IEC 60947-2
  • 0 KA
• Rated Switching Capacity
  • 10 Kilo Ampere
• Rated Switching Capacity IEC/EN (61009)
  • 10 KA
• Rated Voltage
  • 240 V
• Release Characteristic
  • B
• Sensitivity
  • AC current sensitive
• Static Heat Dissipation Non Curr. Dep.
  • 0 W
• Suitable For Flush-mounted Installation
  • False
• Surge Current Capacity
  • .25 KA
• Tripping
  • Non-delayed
• Tripping Characteristic
  • B
• Type
  • RCBO
• Voltage Type
  • AC
• Width In Number Of Modular Spacings
  • 2
