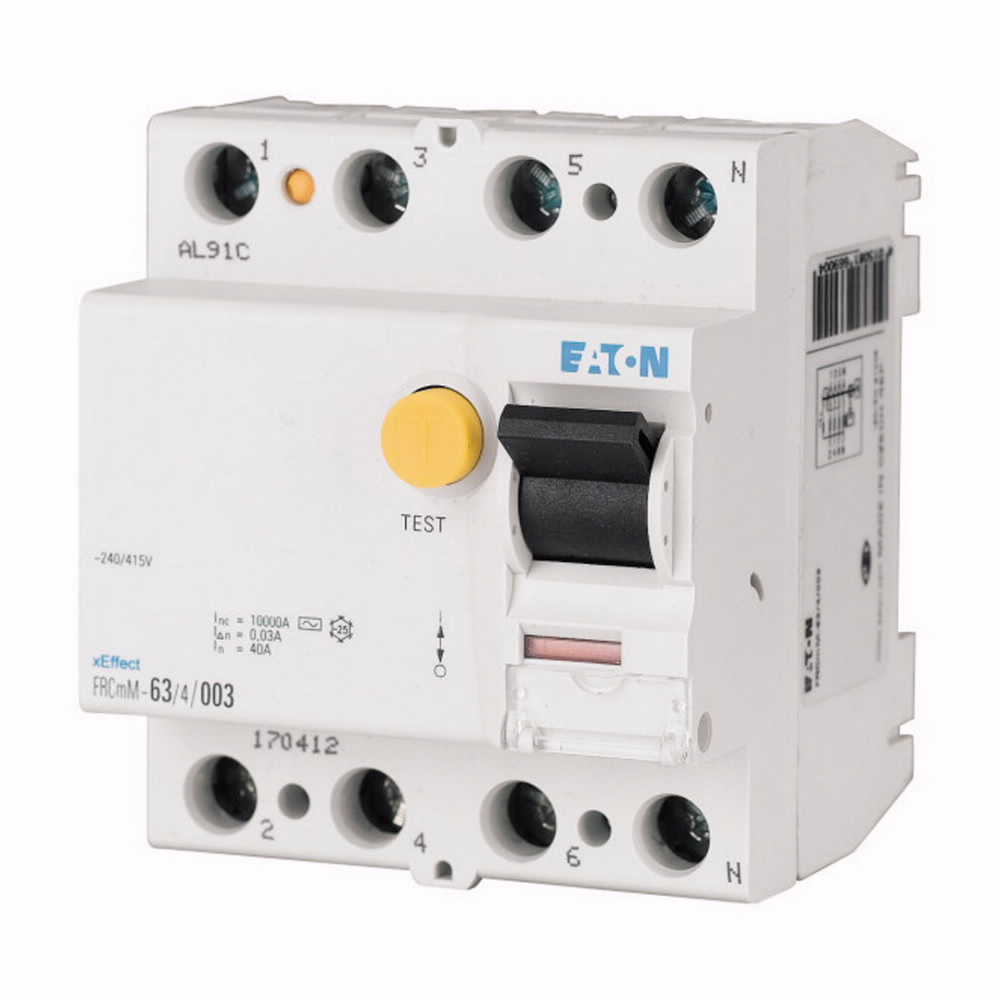

Eaton 167107

General

• Catalog Notes
  • Additionally protects against special forms of residual pulsating DC which have not been smoothed.
• Certifications
  • UL 1053
• Compliances
  • RoHS conform
• EAN
  • 4015081636075
• Model Code
  • FRCMM-25/4/003-G/A-NA
• Product Height
  • 71 mm
• Product Length/Depth
  • 80 mm
• Product Weight
  • .32 kg
• Product Width
  • 70 mm

Specifications

• 10.10 Temperature rise
  • The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
• 10.11 Short-circuit rating
  • Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.12 Electromagnetic compatibility
  • Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.13 Mechanical function
  • The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
• 10.2.2 Corrosion resistance
  • Meets the product standard's requirements.
• 10.2.3.1 Verification of thermal stability of enclosures
  • Meets the product standard's requirements.
• 10.2.3.2 Verification of resistance of insulating materials to normal heat
  • Meets the product standard's requirements.
• 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
  • Meets the product standard's requirements.
• 10.2.4 Resistance to ultra-violet (UV) radiation
  • Meets the product standard's requirements.
• 10.2.5 Lifting
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.6 Mechanical impact
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.7 Inscriptions
  • Meets the product standard's requirements.
• 10.3 Degree of protection of assemblies
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.4 Clearances and creepage distances
  • Meets the product standard's requirements.
• 10.5 Protection against electric shock
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.6 Incorporation of switching devices and components
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.7 Internal electrical circuits and connections
  • Is the panel builder's responsibility.
• 10.8 Connections for external conductors
  • Is the panel builder's responsibility.
• 10.9.2 Power-frequency electric strength
  • Is the panel builder's responsibility.
• 10.9.3 Impulse withstand voltage
  • Is the panel builder's responsibility.
• 10.9.4 Testing of enclosures made of insulating material
  • Is the panel builder's responsibility.
• Admissible back-up fuse overload - max
  • 25 A gG/gL
• Ambient humdity range
  • 5 - 95 %
• Ambient operating temperature - max
  • 40 °C
• Ambient operating temperature - min
  • -25 °C
• Amperage Rating
  • 25 A
• Application
  • Switchgear for export to North America (UL-listed)
• Built-in depth
  • 70.5 mm
• Built-in width (number of units)
  • 70 mm (4 SU)
• Climatic proofing
  • 25-55 °C / 90-95% relative humidity according to IEC 60068-2
• Connectable conductor cross section (multi-wired) - max
  • 16 mm²
• Connectable conductor cross section (multi-wired) - min
  • 1.5 mm²
• Connectable conductor cross section (solid-core) - max
  • 35 mm²
• Connectable conductor cross section (solid-core) - min
  • 1.5 mm²
• Contact position indicator color
  • Red / green
• Degree of protection
  • IP20
• Equipment heat dissipation, current-dependent
  • 3.1 W
• Fault current rating
  • 30 mA
• Features
  • Additional equipment possible
• Fitted with:
  • Interlocking device
• Frame
  • 45 mm
• Frequency rating
  • 50 Hz / 60 Hz
• Functions
  • Short-time delayed tripping
• Heat dissipation per pole, current-dependent
  • .775 W
• Impulse withstand current
  • 3 kA (8/20 μs) surge-proof
• Leakage current type
  • A
• Lifespan, electrical
  • 4000 operations
• Lifespan, mechanical
  • 10000 operations
• Mounting Method
  • Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715
• Mounting position
  • As required
• Number of poles
  • Four-pole
• Overvoltage tested - max
  • 530 V
• Permitted storage and transport temperature - max
  • 60 °C
• Permitted storage and transport temperature - min
  • -35 °C
• Pick-up current
  • 22 mA
• Pollution degree
  • 2
• Rated fault current - max
  • .03 A
• Rated fault current - min
  • .03 A
• Rated impulse withstand voltage (Uimp)
  • 4 kV (1.2/50 µs)
• Rated insulation voltage (Ui)
  • 440 V
• Rated operational current for specified heat dissipation (In)
  • 25 A
• Rated operational voltage (Ue) - max
  • 480 V
• Rated residual making and breaking capacity
  • 500 A
• Rated short-circuit strength
  • 10 kA with back-up fuse
• Rated short-time withstand current (Icw)
  • 10 kA
• Sensitivity type
  • Pulse-current sensitive
• Short-circuit rating
  • Max. admissible back-up fuse: 63 A gG/gL, 70 A class J fuse (UL)
• Special features
  • Current test marks as per inscription\nMaximum operating temperature is 55 °C: Starting at 40 °C, the max. permissible continuous current decreases by 3% for every 1 °C\nThe maximum operating current of back-up fuse must not exceed the residual current circuit breaker's rated operational current
• Status indication
  • White / blue
• Surge current capacity
  • 3 kA
• Terminal capacity (cable)
  • M5 (with cross-recessed screw as defined in EN ISO 4757-Z2, PZ2)
• Terminal capacity (solid wire)
  • 1.5 mm² - 35 mm²
• Terminal capacity (stranded cable)
  • 16 mm² (2x)
• Terminal protection
  • Busbar tag shroud to BGV A3, ÖVE-EN 6
• Terminals (top and bottom)
  • Lift terminals
• Test circuit range
  • 184 V AC - 440 V AC, 196 V AC - 305 V AC (UL)
• Tripping time
  • 10 ms delay at 50 Hz
• Type
  • FRCmM-NA\nResidual current circuit breakers\nType G/A (ÖVE E 8601)
• Voltage rating (IEC/EN 60947-2)
  • 240 V AC / 415 V AC
• Voltage rating (UL)
  • 480Y/277 V, 60 Hz
• Width in number of modular spacings
  • 4
