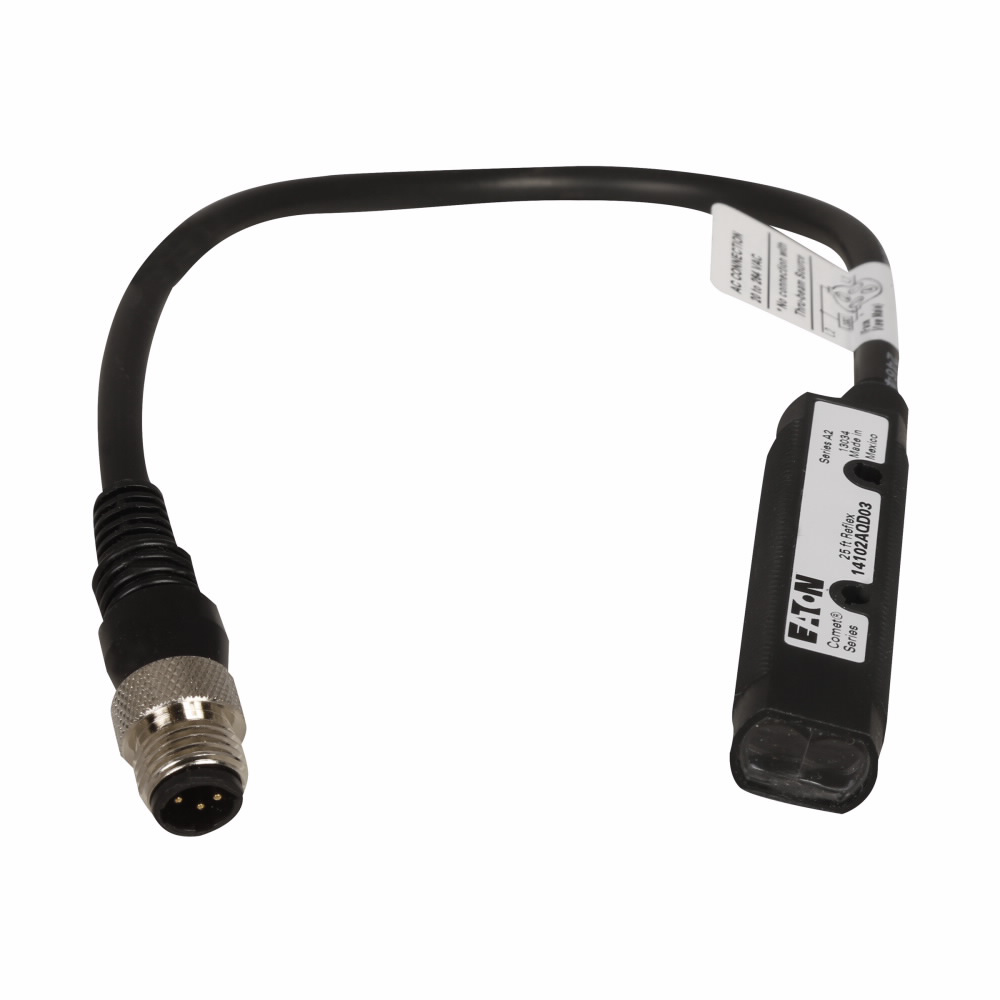

Eaton 14102AQD07
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Eaton Moeller® series Retroflective sensing sensor, Sn=7600mm, 4L, 10-30VDC, NPN, PNP, M18, insulated material, M12
Eaton 14102AQD07 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
General
- Certifications
- cUL Recognized
- EAN
- 4015081324507
- Model Code
- 14102AQD07
- Product Height
- 50.8 mm
- Product Length/Depth
- 127 mm
- Product Weight
- .098 kg
- Product Width
- 152.4 mm
- UPC
- 782113843711
- Warranty
- 3 year
Specifications
- Adjustment type
- Manual adjustment
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -40 °C
- Connection
- M12
- Connection type
- Plug-in connection M12 x 1
- Contact configuration
- NPN and PNP open collector
- Contact Rating
- 100 mA PNP, 250 mA NPN at 10-30 Vdc
- Degree of protection
- NEMA 1
- Diameter sensor
- 18 mm
- Electric connection type
- Plug-in connection
- Enclosure material
- Polyurethane foam (RIM)
- Enclosure type
- Cylinder, screw-thread
- Environmental rating
- NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K
- Explosion safety category for dust
- null
- Explosion safety category for gas
- null
- Features
- Straight beam
- Functions
- Reflected-light beam
- Input voltage
- 10-30 Vdc
- Interface type
- null
- Laser protection class
- null
- LED indicator
- Output ON
- Light dot size
- 0 mm²
- Light type
- Visible red light
- Load current
- Max. 100 mA (Ie, PNP)
- Maximum DC current
- 100 mA PNP, 250 mA NPN
- Number of contact energized outputs with signalling function
- 0
- Number of outputs (protected contact energized)
- 0
- Number of outputs (protected semiconductor)
- 0
- Number of outputs (semiconductor with signaling function)
- 2
- Number of pins
- 4
- Operating mode
- Switching principle: Adjustable bright/dark switching
- Operating temperature - max
- 158 °F
- Operating temperature - min
- -40 °F
- Operational current (Ib) in the switched state at 24 V DC
- 30 A
- Optical surface material
- Plastic
- Output current at protected output - max
- 0 mA
- Output current (mA) - max
- 100 mA
- Product category
- Comet Series
- Protection
- Auto reset short circuit
- Rated control supply voltage (Us) at AC, 50 Hz - max
- 0 V
- Rated control supply voltage (Us) at AC, 50 Hz - min
- 0 V
- Rated control supply voltage (Us) at AC, 60 Hz - max
- 0 V
- Rated control supply voltage (Us) at AC, 60 Hz - min
- 0 V
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 10 V
- Rated switching distance (Sn)
- 7600 mm
- Reflector distance - min
- 0 mm
- Response time
- 1 ms
- Sensing mode
- Light-/dark switching
- Sensor height
- 0 mm
- Sensor length
- 66 mm
- Sensor material
- Insulated material
- Sensor type
- Retroreflective
- Shock resistance
- 100 g, Mechanical, Shock duration 3 ms
- Switch function type
- Programmable/configurable
- Switching distance - max
- 0 mm
- Switching frequency
- 500 Hz
- Switching output type
- PNP
- Switching voltage of OSSD at state high
- 0 V
- Transmission range of the safety field
- 0 m
- Type
- Optical sensors
- Voltage rating - max
- 30 V
- Voltage type
- DC
- Wavelength of the sensor
- 0 nm
- Width sensor
- 0 mm
