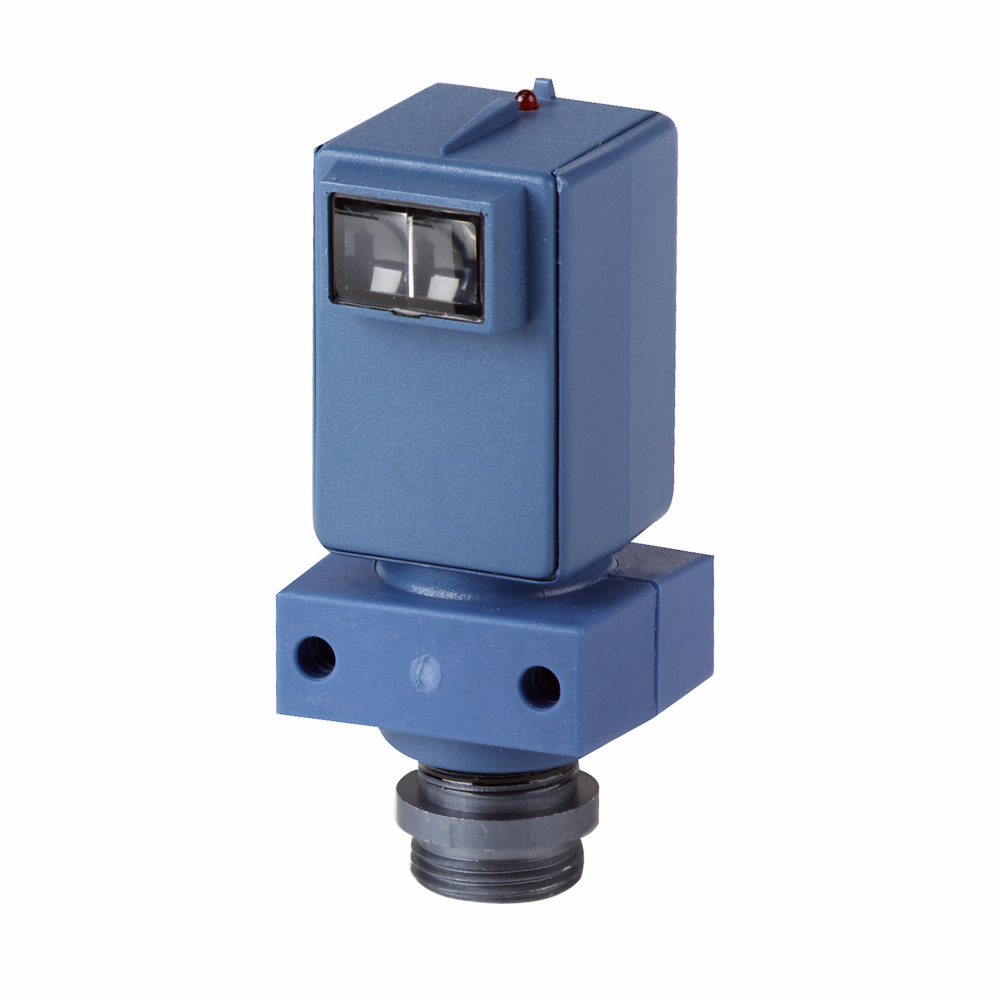

Eaton 1356RD6503
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Eaton 55 Series Photoelectric Sensor, Photoelectric, Sensor distance: 24 In., 3A max AC, 3A max DC, SPDT Form C Relay, 3A AC/DC at 120 Vac / 30 Vdc, 5 Pin Mini Connector, 20–264 Vac 50/60 Hz or 15–30 Vdc (NPN) input, Diffuse Reflective
Eaton 1356RD6503 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
General
- Catalog Notes
- Ranges based on 3-inch retroreflector for reflex sensors; 90% reflectance card for diffuse reflective sensors
- Certifications
- CSA Certified
- Compliances
- Contact Manufacturer
- Product Height
- 3.19 in
- Product Length/Depth
- 1.83 in
- Product Weight
- .3375 lb
- Product Width
- 1.64 in
- UPC
- 782114111024
- Warranty
- 3 year
Specifications
- Connection
- 5-pin mini connector
- Contact configuration
- SPDT form C relay
- Contact Rating
- 3A AC/DC at 120 Vac / 30 Vdc
- Enclosure material
- Lens: nylon
- Environmental rating
- NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, NEMA 13
- Input voltage
- 20-264 Vac at 50/60 Hz, 15-30 Vdc (NPN)
- LED indicator
- Output status: red
- Maximum AC current
- 3 A
- Maximum DC current
- 3 A
- Operating mode
- Diffuse reflective
- Operating temperature - max
- 158 °F
- Operating temperature - min
- -40 °F
- Sensor type
- Diffuse reflective
- Switch type
- Photoelectric
