Description

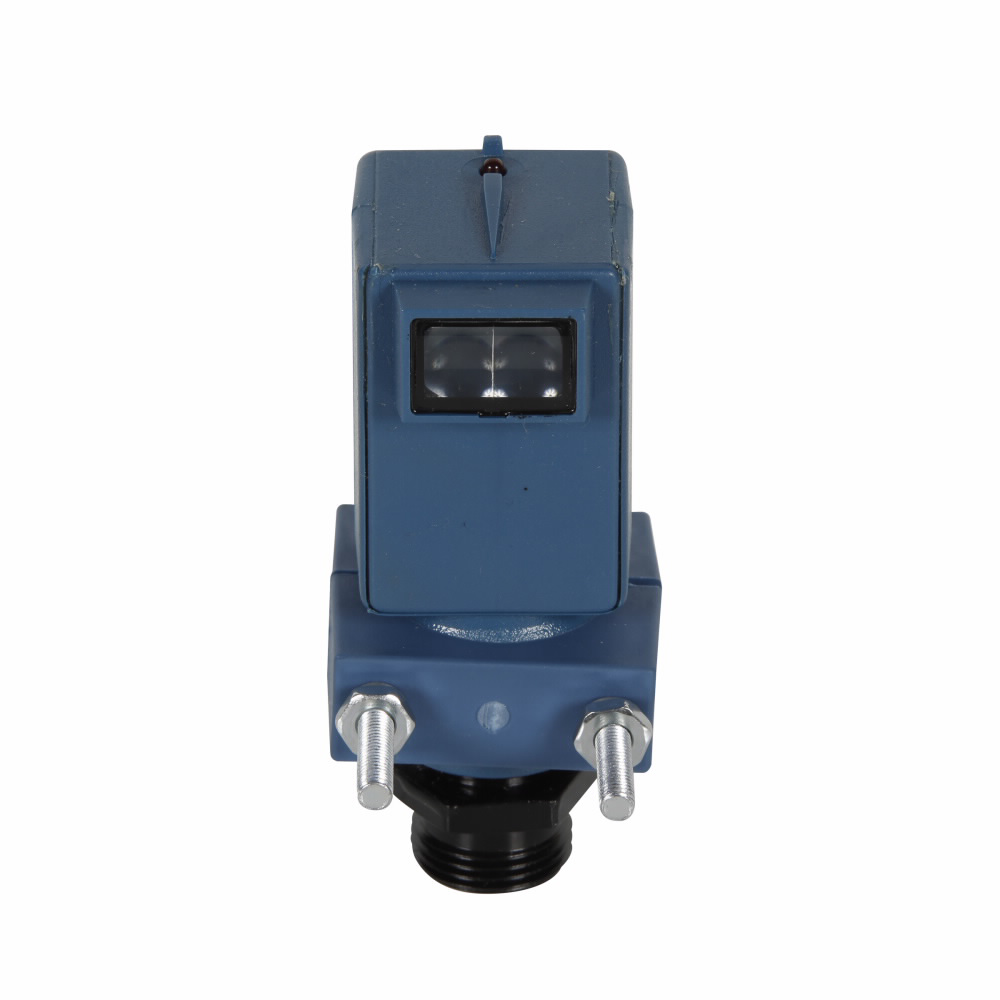

Eaton 55 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 70 Ft., Body: Noryl, Lens: Nylon enclosure, 50 mA max AC, L1 Switched, 50 mA at 132 Vac, 3 Pin Mini Connector, 90-132 Vac input, Reverse polarity, Thu-Beam
Eaton 1256A-6501 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
General
- Catalog Notes
- For complete system; order 1 source and 1 detector. Minimum object size is 0.4 x 0.7 inches (10 x 18 mm).
- Certifications
- CSA Certified
- Compliances
- Contact Manufacturer
- Product Height
- 3.19 in
- Product Length/Depth
- 1.83 in
- Product Weight
- .3375 lb
- Product Width
- 1.64 in
- UPC
- 782113822358
- Warranty
- 3 year
Specifications
- Connection
- 3-pin mini connector
- Contact configuration
- L1 switched
- Contact Rating
- 50 mA at 132 Vac
- Enclosure material
- Lens: nylon
- Environmental rating
- NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, NEMA 13
- Input voltage
- 90-132 Vac
- LED indicator
- Output status: red
- Maximum AC current
- 50 mA
- Operating mode
- Thru-beam
- Operating temperature - max
- 158 °F
- Operating temperature - min
- -22 °F
- Protection
- Reverse polarity
- Sensor type
- Through beam
- Switch type
- Photoelectric
